CNC Router RichAuo A11 Controller Shortcut Keys How to Quickly Use the DSP

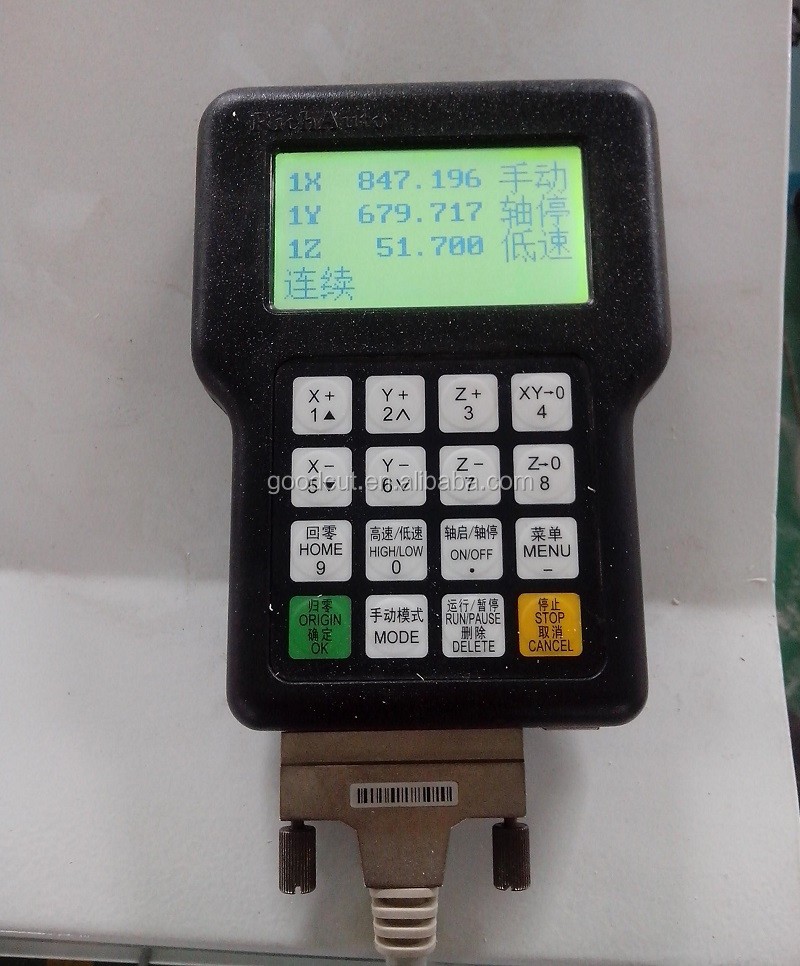

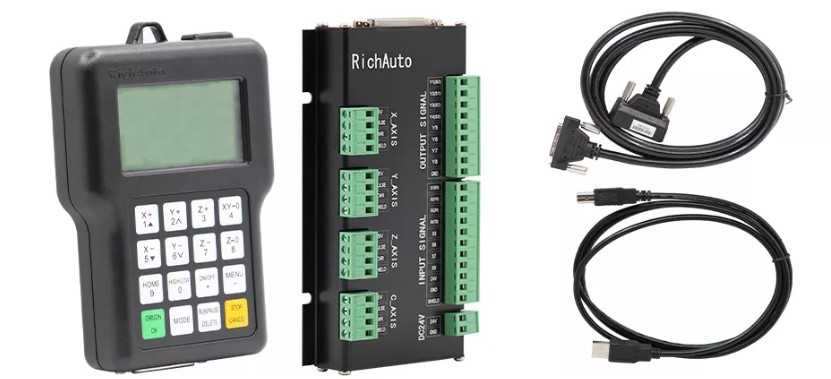

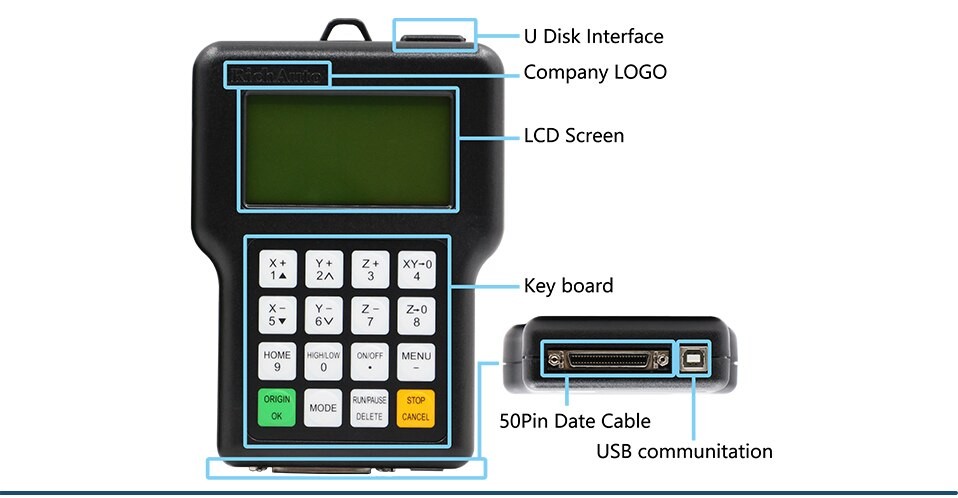

DSP RichAuo A11 handle controller main parts:

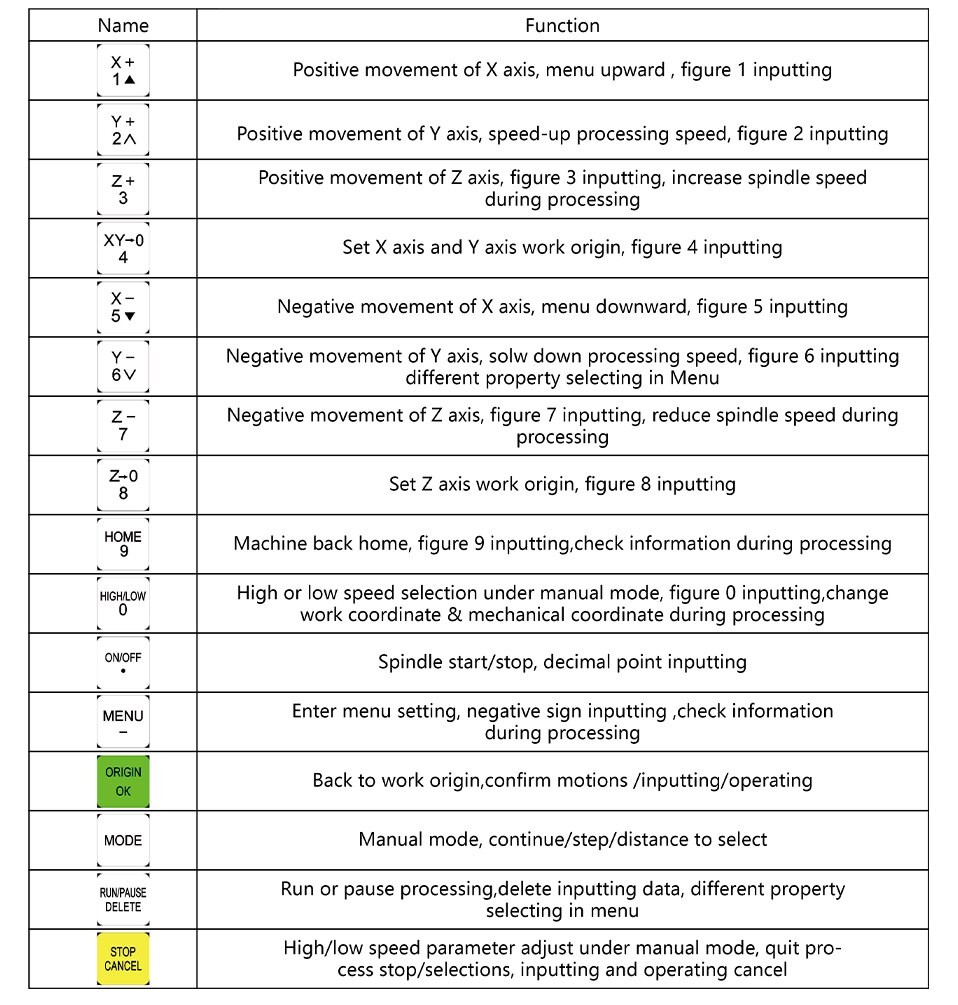

Button functions of DSP RichAuo A11 handle controller :

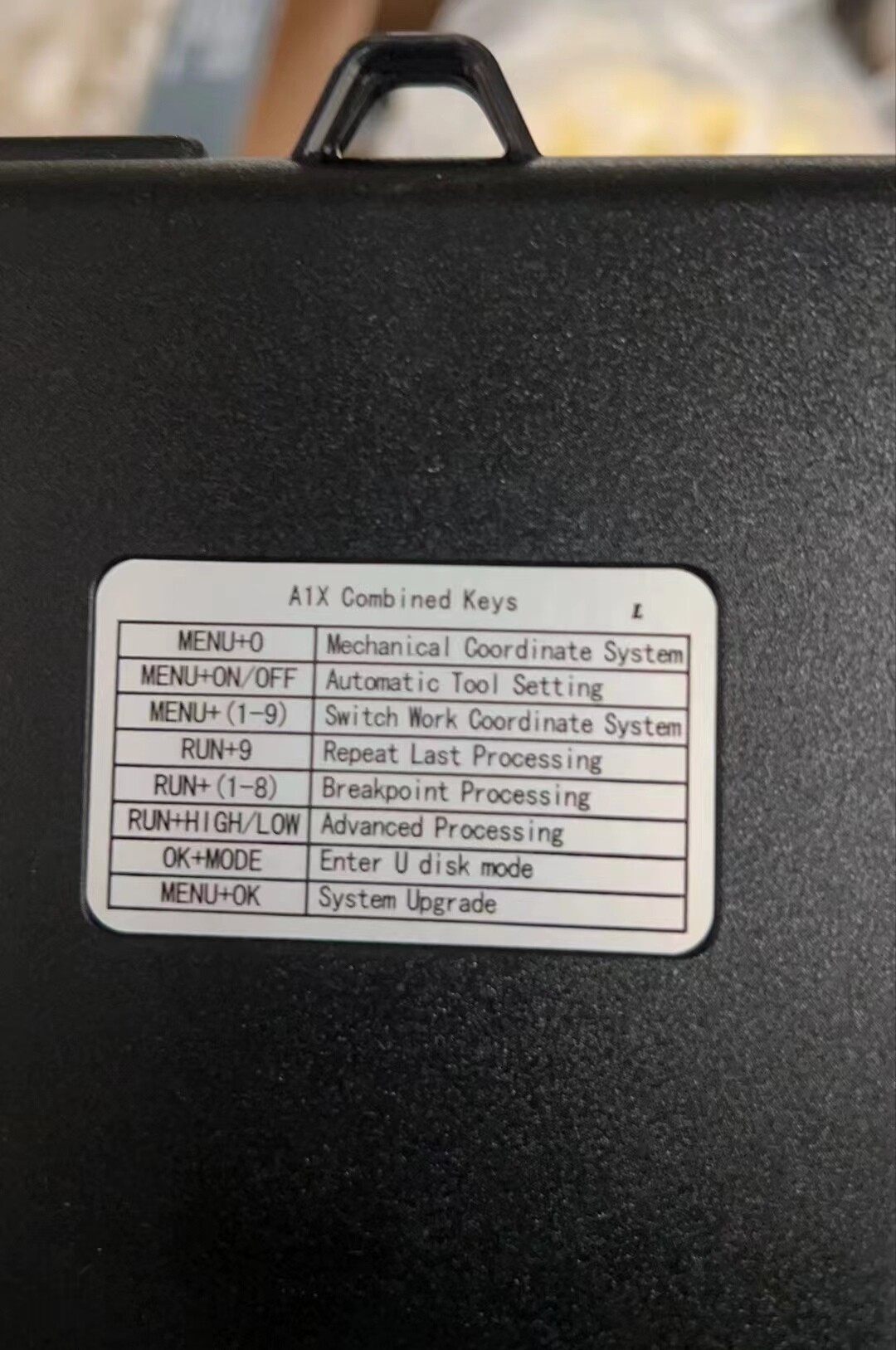

Key combinations using of DSP RichAuo A11 handle controller:

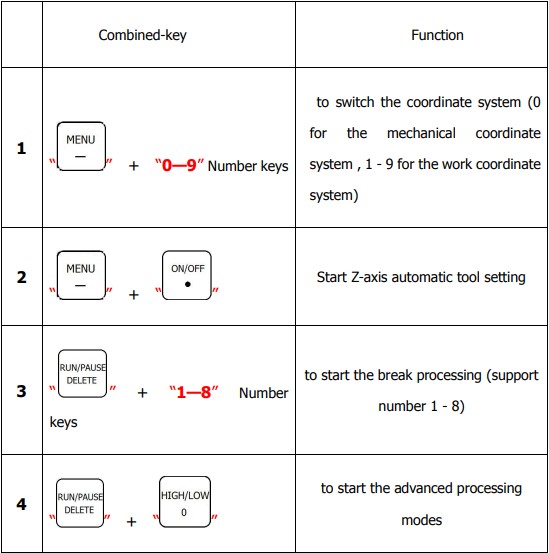

Commonly used combined-key list:

Advantages of DSP RichAuo A11 handle controller:

Latest four axes coordinated motion control mode.
Support A/C code format and special ˊMˊ code control.
User definable I/O interface, provide an extensive development platform.
Intelligence processing memory function, support “breaking point processing” and “power failure” function.
More powerful anti-interference performance, pass through multinomial CE tests.
Provide parameters backup and recovery function protect the important parameter from missing.
Achieve complex graph processing, such as cylinder, prism, polyhedron etc.
Widely apply in the system control of Buddha, stair column, sofa and table leg processing equipment and so on.
Effective process and high speed.
