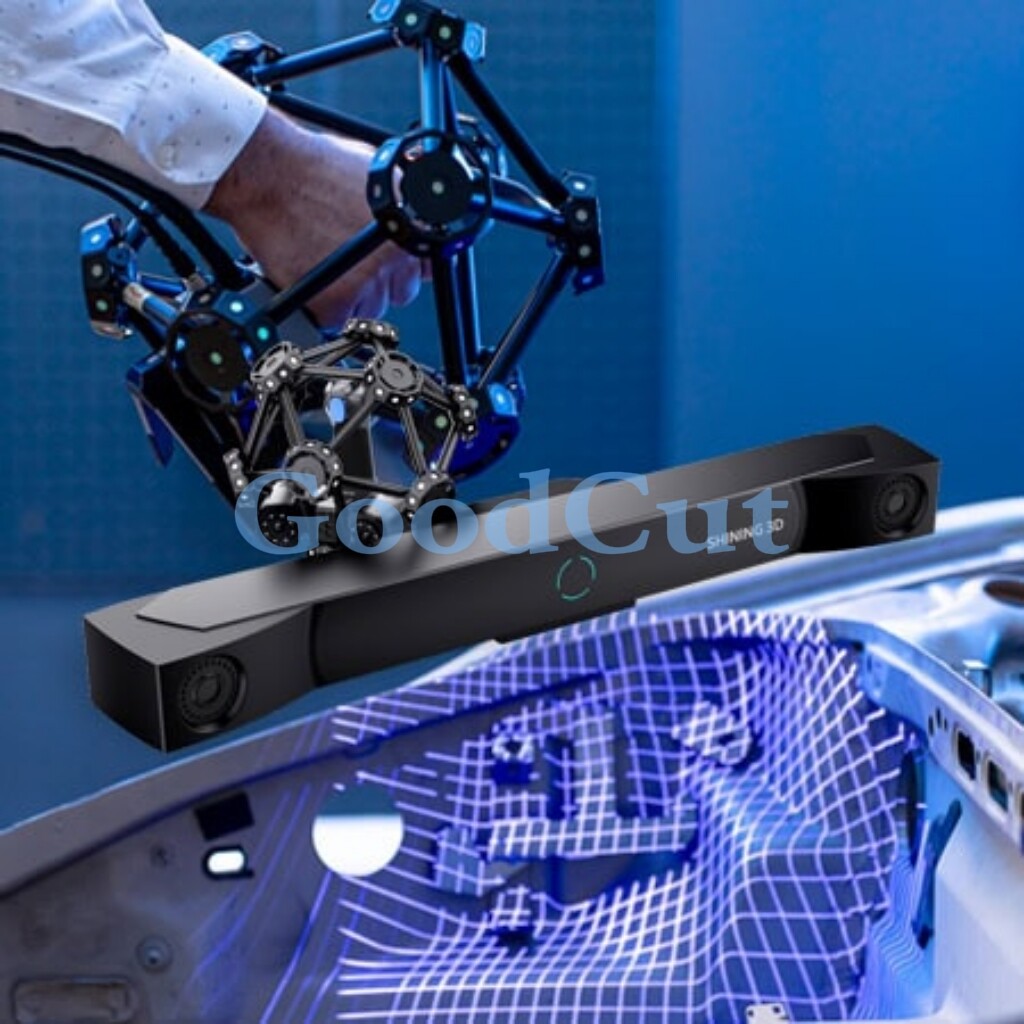

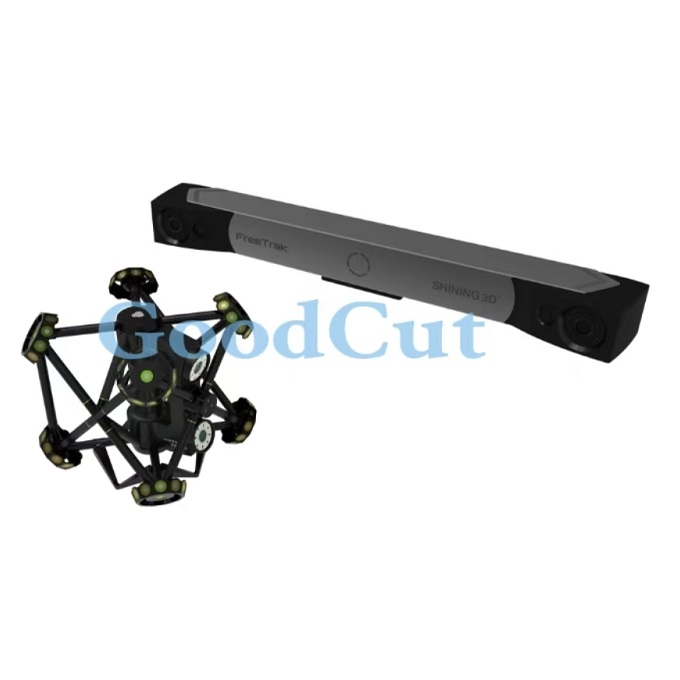

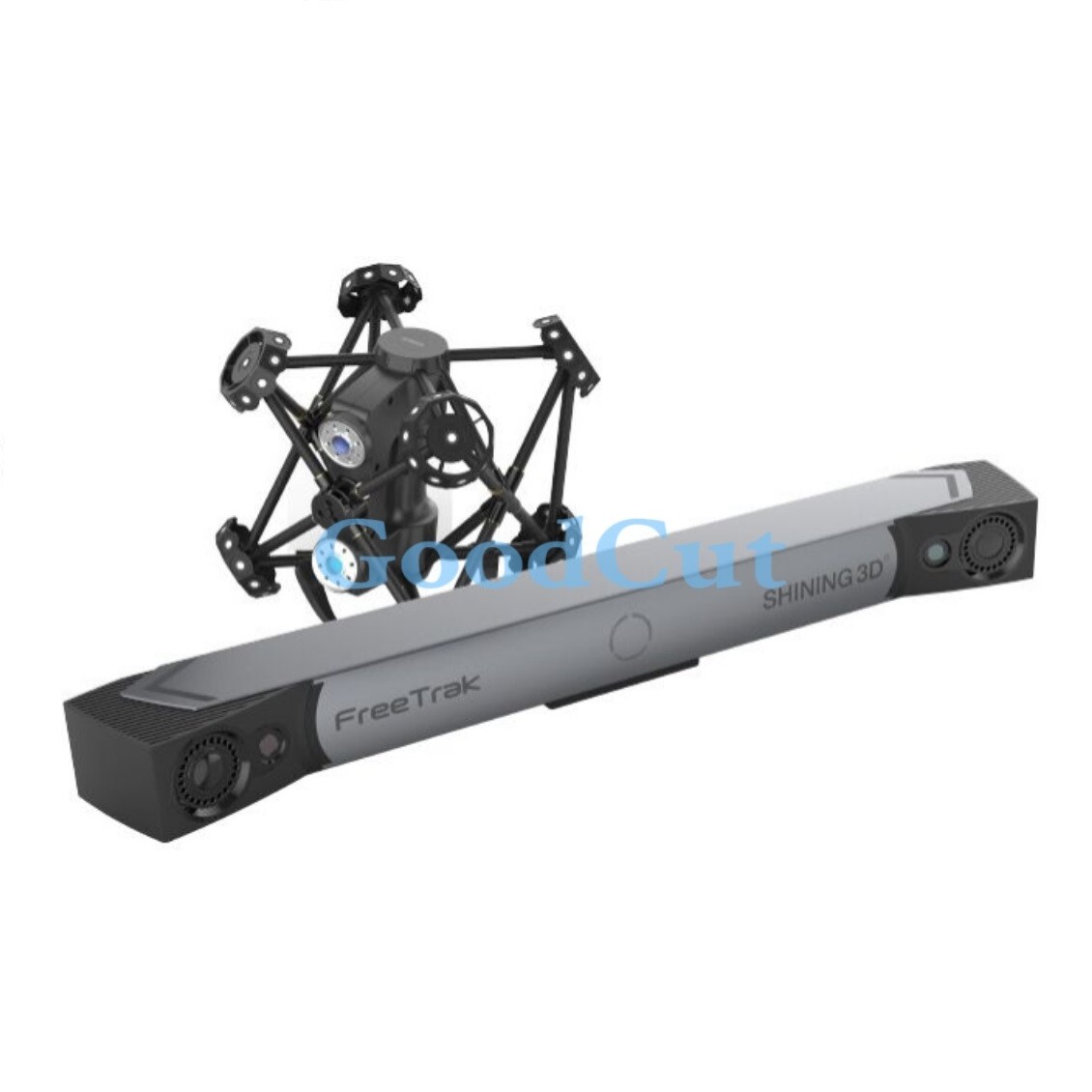

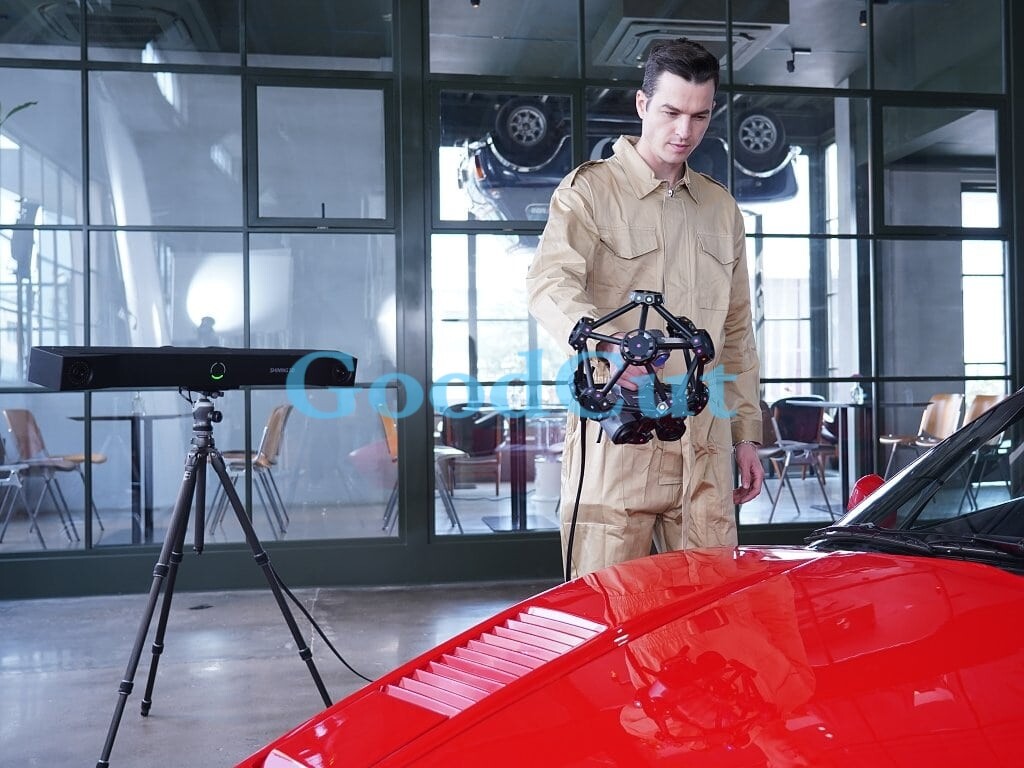

FreeScan Trak ProW

Wireless 3D Dynamic Tracking & Scanning System with Expanded Range

Marker-Free & Wireless Scanning

Max. 8.6 m Tracking Distance & 206.7 m³ Tracking Volume

Integrated Video Photogrammetry (VPG)

Compatible with FreeProbe (Optional)

FreeScan Trak W Features

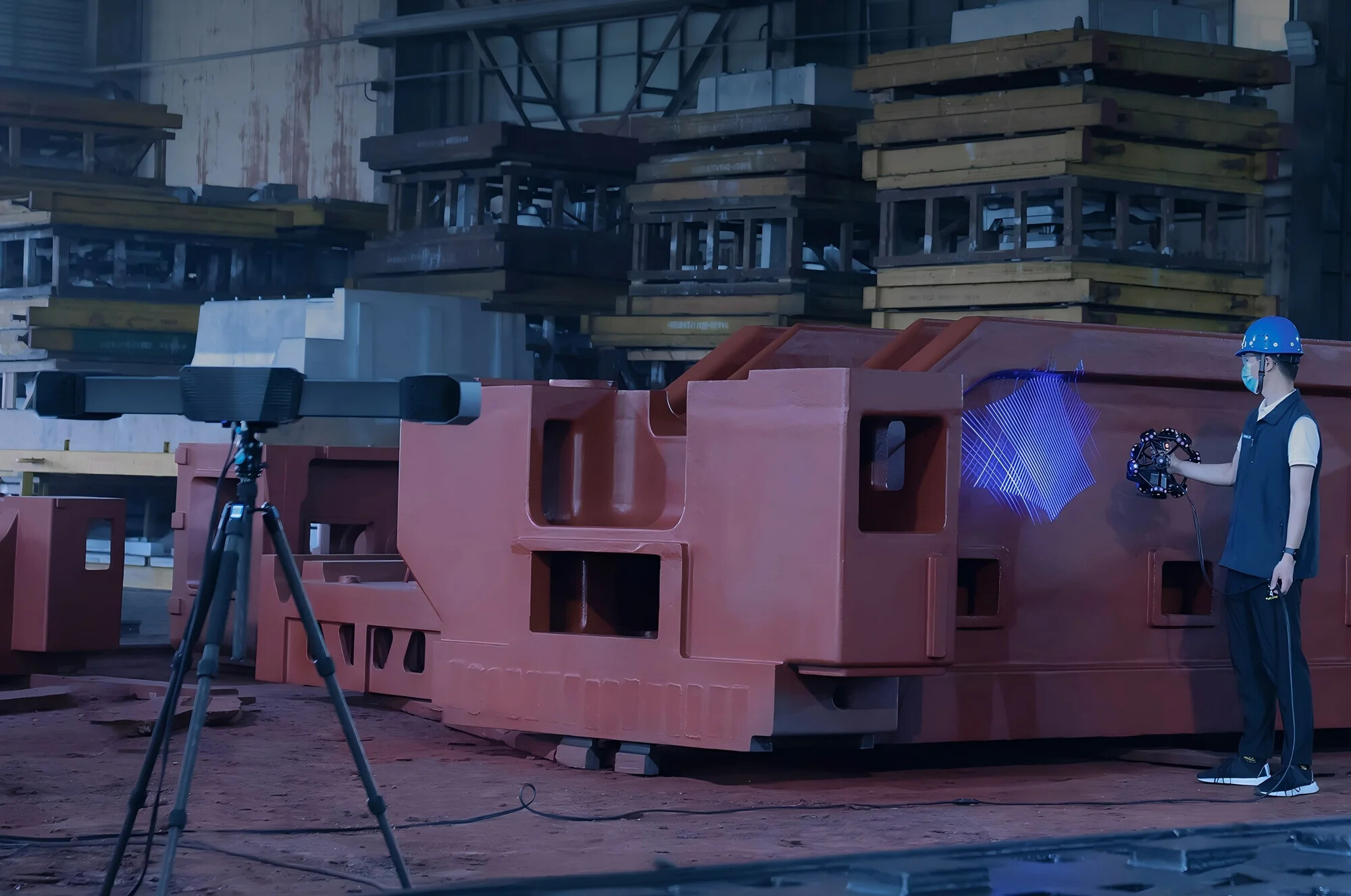

Ultra-Wide Measuring Range

FreeScan Trak ProW features a groundbreaking design with an ultra-long 8.6 m tracking distance

and widely expands the single-station tracking volume to 206.7 m³, significantly reducing the

 need for leapfrog* during large-scale object scanning.

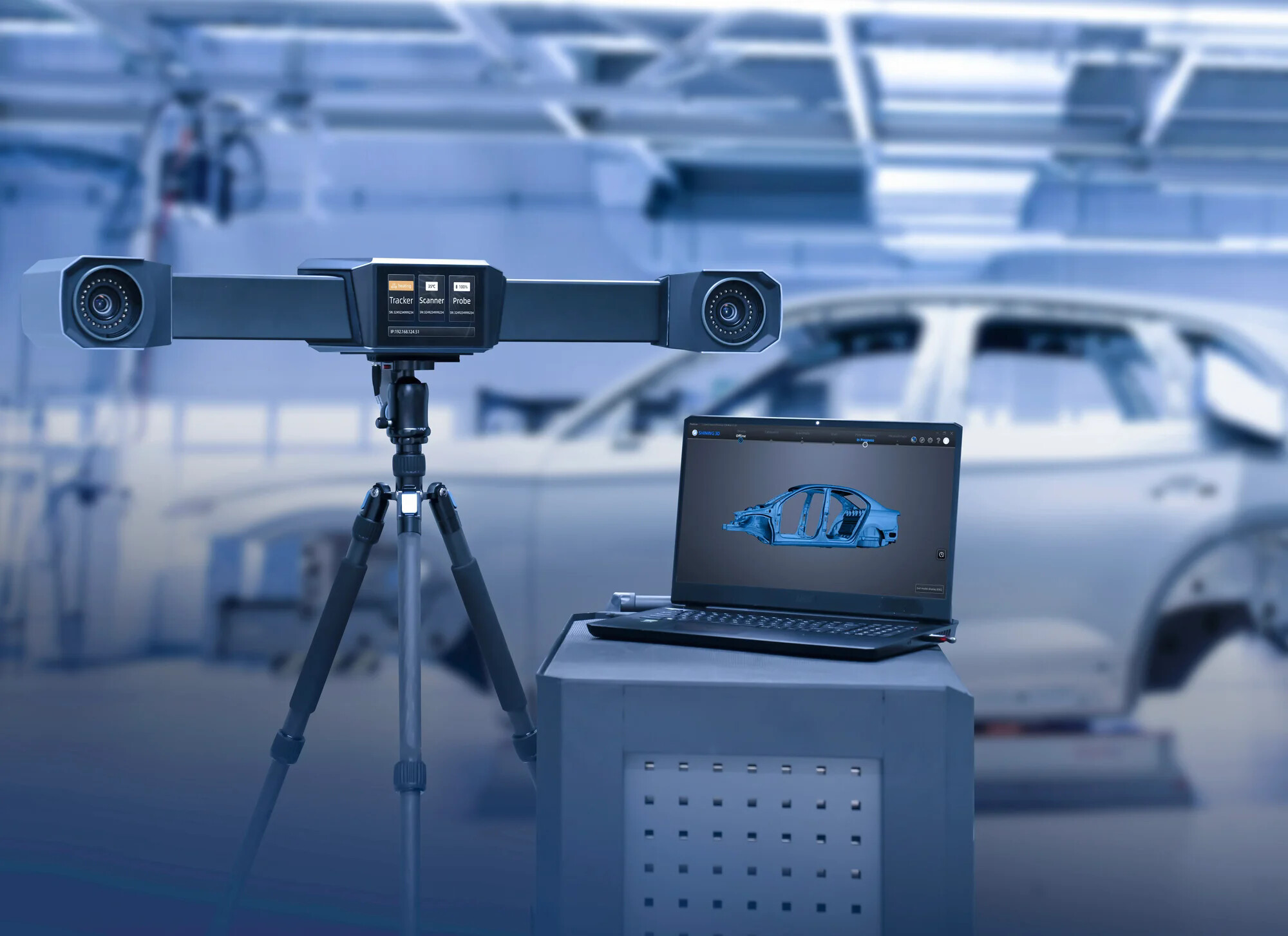

Wireless Scanning Wherever You Go

FreeScan Trak ProW delivers fast, wireless scanning anywhere. Its cable-free design enables real-time

data transfer, with power bank support for unrestricted mobility. An integrated screen ensures

seamless operation.

Built-In Computing Modules

Integrated Wireless Modules

Flexible Power Supply

Real-Time Display Screen

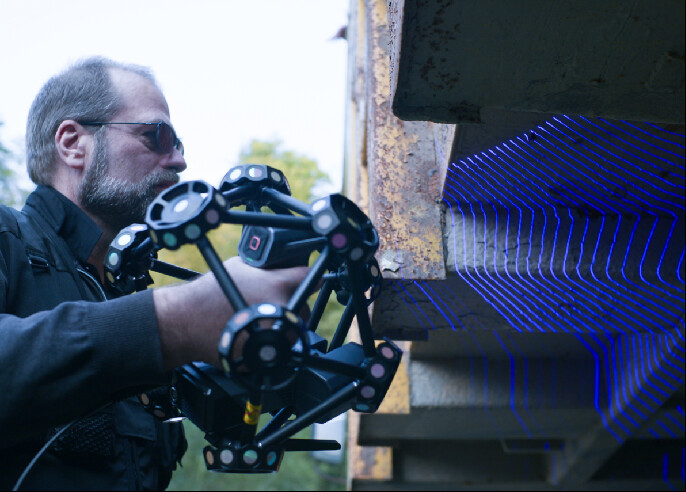

No Markers Needed

Fast Paced Scanning

FreeTrak W enables real-time TE25W scanner recognition and positioning, eliminating the need for

reference markers, which enhances scanning efficiency and streamlinesthe workflow, while

ensuring rapid data acquisition with a scanning speed of up to 5,500,000 points per second.

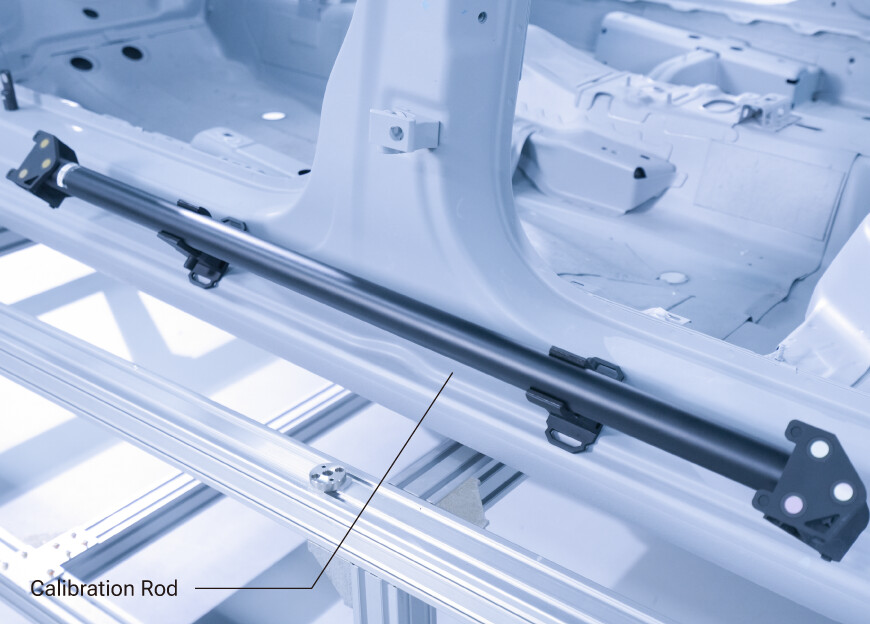

Video Photogrammetry (VPG)

FreeScan Trak ProW features SHINING 3D’s patented video-based photogrammetry, which eliminates the

need for coded markers. By integrating photogrammetry technology with a calibration rod, it enables

real-time marker verification through video capture. This ensures consistent  volumetric accuracy and

 streamlines the setup process for efficient large-object scanning.
