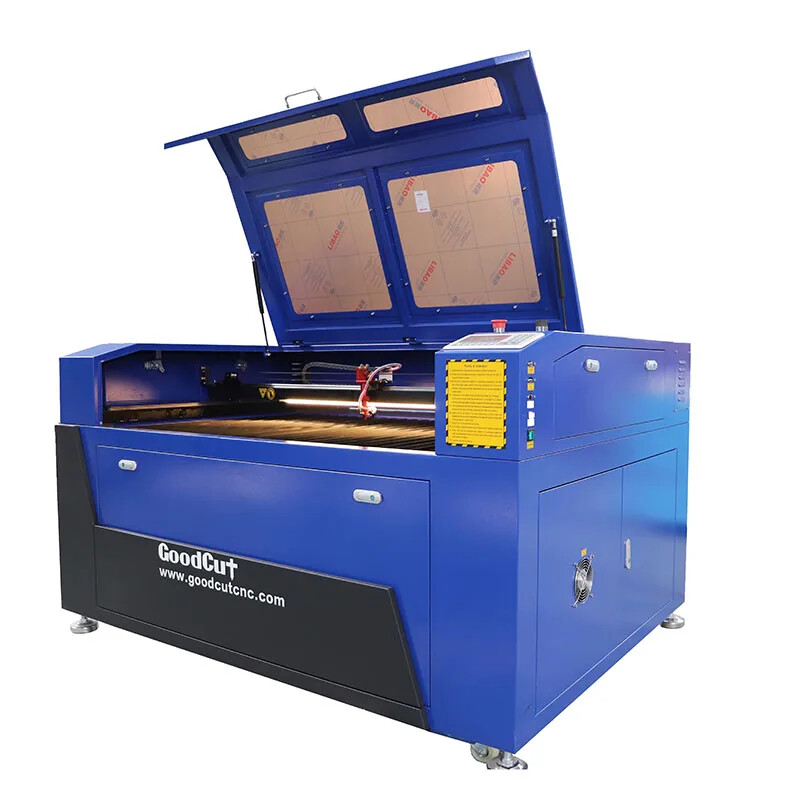

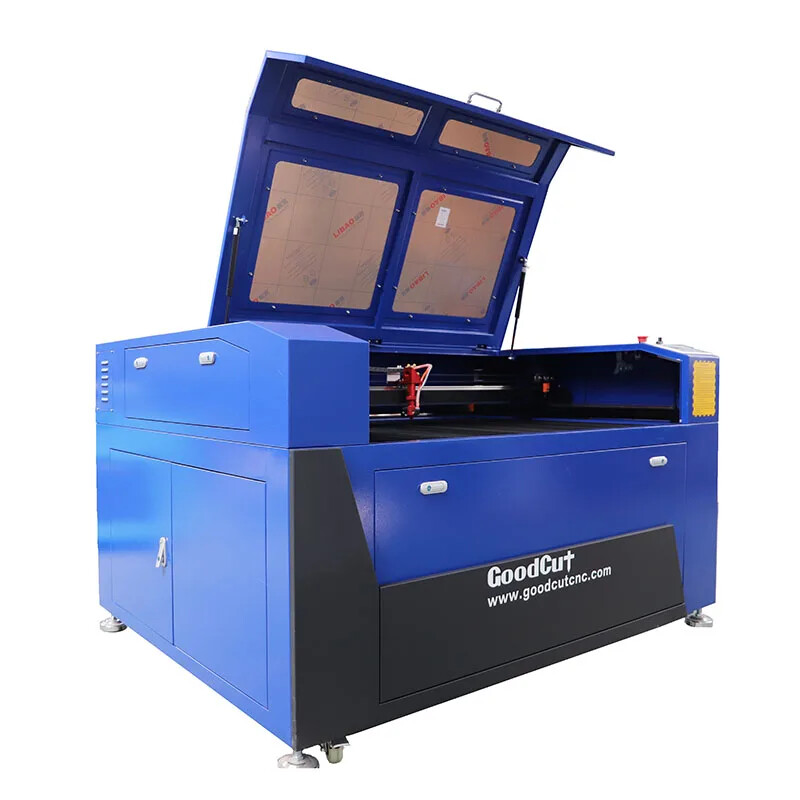

GC1390LG  CO2 Laser Cutter Machine

Feature:

1.GC-1390L CO2 laser engraving machine, able to engrave and cut various non-metals, like acrylic, double-color plate, marble, wood, MDF, plywood, textile, leather, glass, paper etc.

2.Widely applied in craft gifts, souvenir, Chinese paper cutting, advertising signs, clothes, furniture and many other industries.

3.Fast engraving and cutting speed, high precision. Can be configured with up-down lifting table, honeycomb table, rotary, etc.

4.Machine working size can be selected according to your needs.we have 600x400mm, 900x600mm, 1200x900mm, 1300x900mm, 1400x900mm,1600x1000mm, 1300x2500mm, and so on.

Also we can customize it for you.

Parameter:

Detailed Parts:

1. CO2 laser tube

CO2 laser tube power available: 60w, 80w, 100w, 130w, 150w, 180w.

60w, 80w, 100w are able to do both good engraving and cutting. 130W and above are for cutting. Stronger laser power cuts thicker.

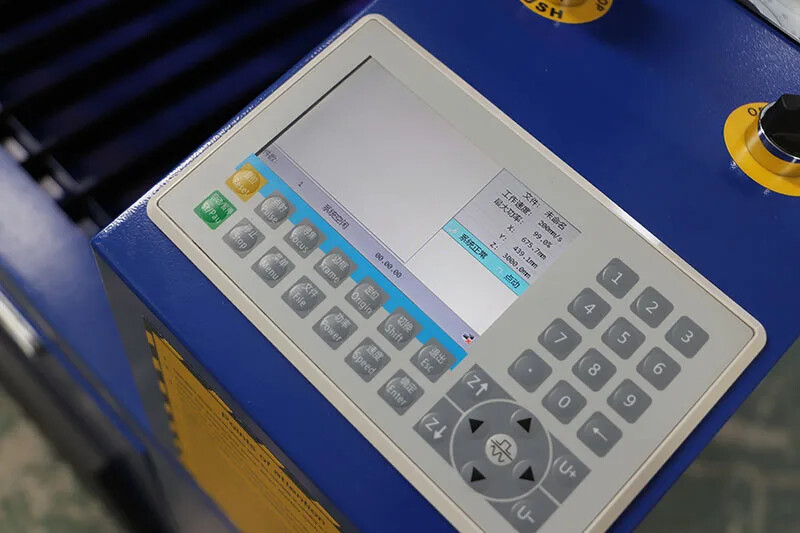

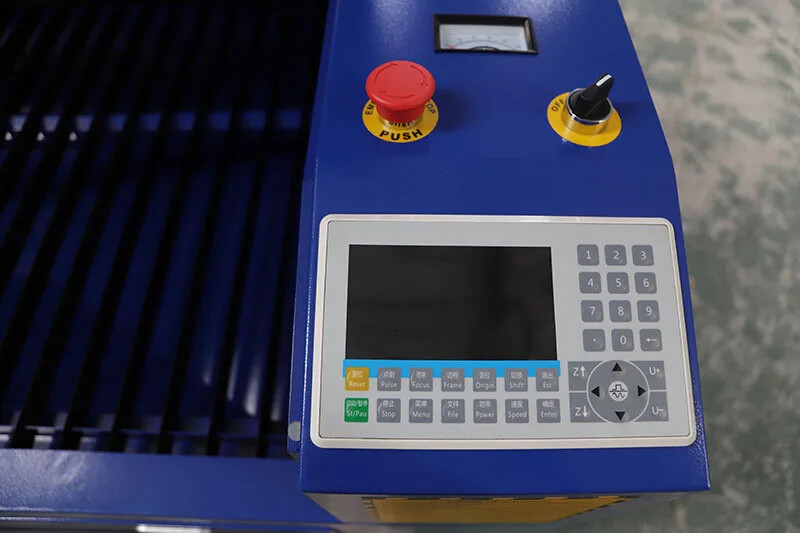

2. Front operation panel

DSP control, LCD display, cutting file and route is showing on the display. Laser output power and working speed can be set on this panel (and in machine software as well).

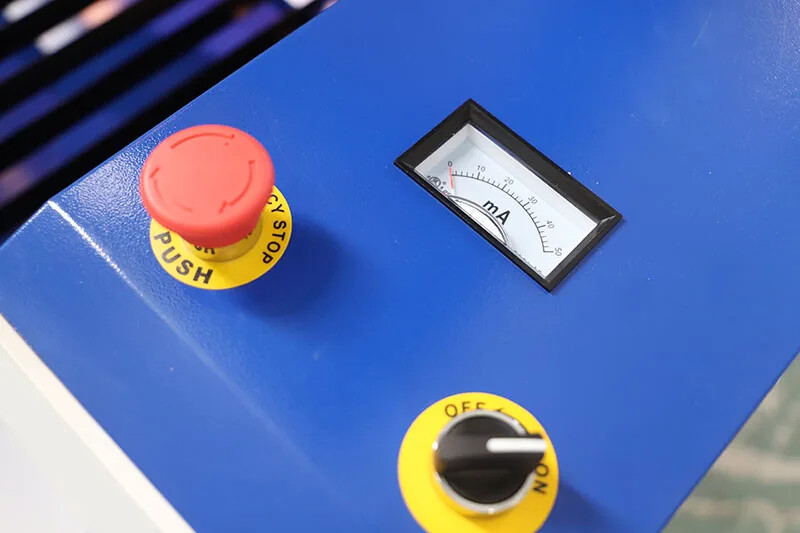

4. Emergency stop button.

Ampere meter for better observation of laser tube and laser power supply working condition.

5. Water cooling system

water pump / water chillers

S&A brand water chillers, best in china, it is used to cool the laser tube. Different chiller models are available for different

wattage laser tubes: CW-3000, 5000, 5200, etc.

6. Air blowing pump

The air pump blows air to the laser head. It removes the heat and avoids material burning. Engraving cutting is better.

7. Exhaust fan (extractor)

Exhaust fan can remove the fumes caused during engraving and cutting.

Advantage:

1. X&Y axis with HIWIN high accuracy square rail, perfect performance.

2. Only manufacturer adopts square tube framework machine body 40% higher than simple iron sheet structure, never distortion. Prevents machine from quivering and resonance during long time work.

3. High efficiency tube with stable laser path, life time reaches to 10000 hours.

4. Red cross point offers highest accuracy position.

5. Humanized and modern design makes work happy, safe and easy.

6. Transparent acrylic watching door, easy checking work process.

7. Professional motion control card offers continue fast curve cutting together with shortest path selection. Shorten work time.

Application:

1) Acrylic engraving and cutting
2) Wood/MDF engraving and cutting
3) Leather engraving and cutting
4)Paper engraving and cutting
5) Rubber sheet engraving and cutting
6) Double color board & coated board engraving
7) Marble and stone engraving
8) Cylinder engraving
