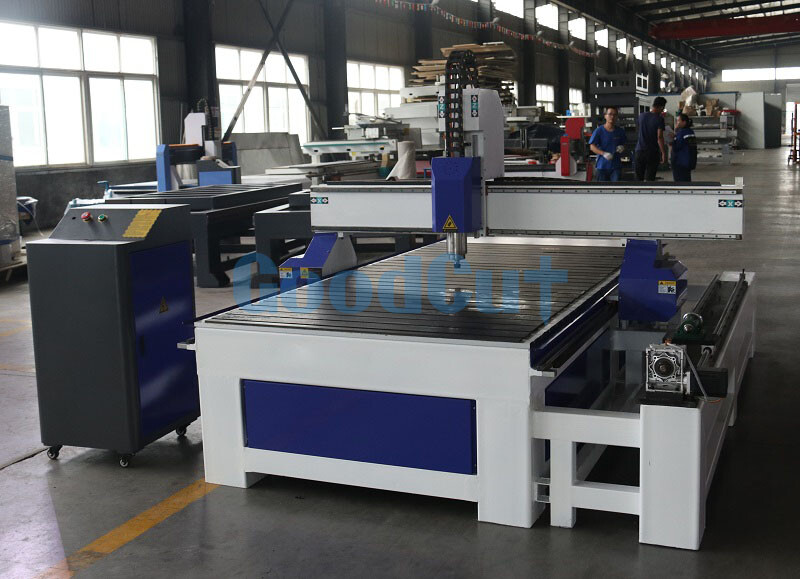

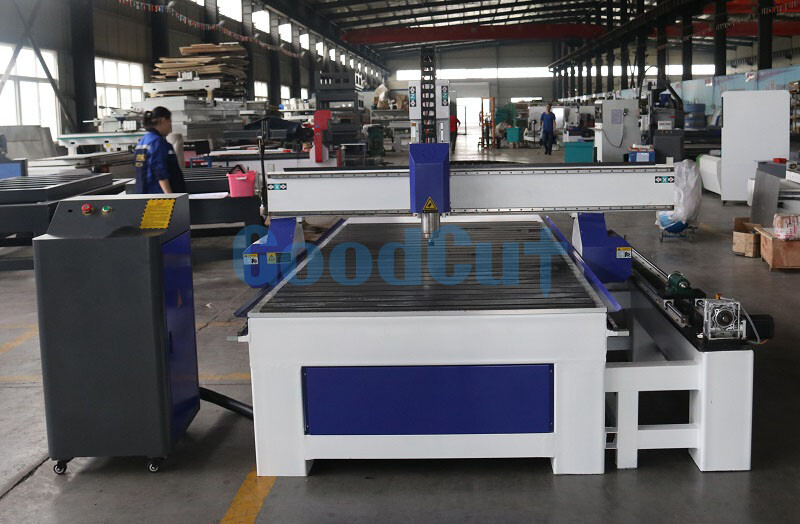

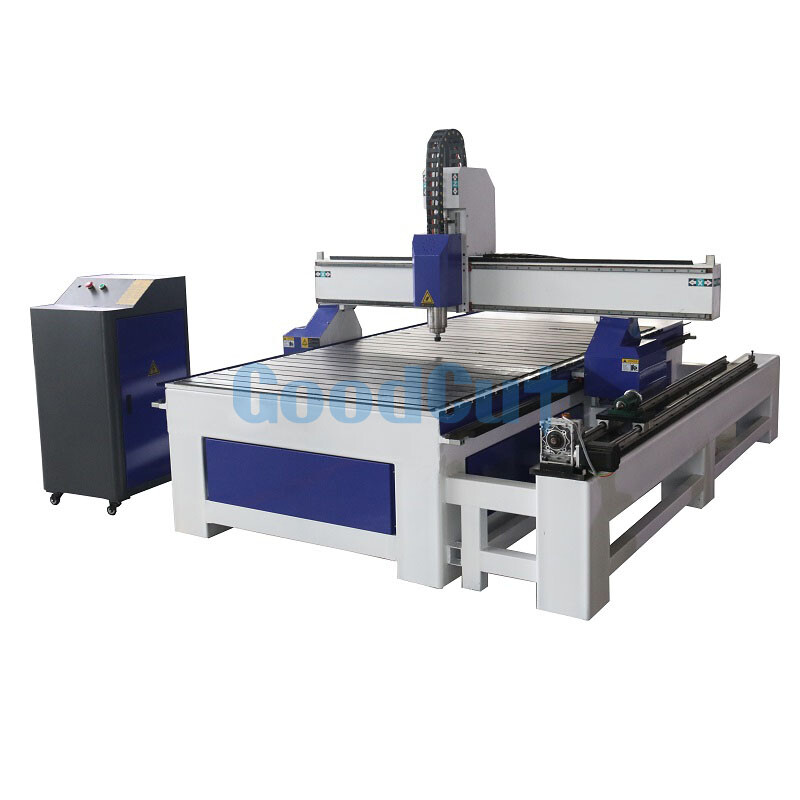

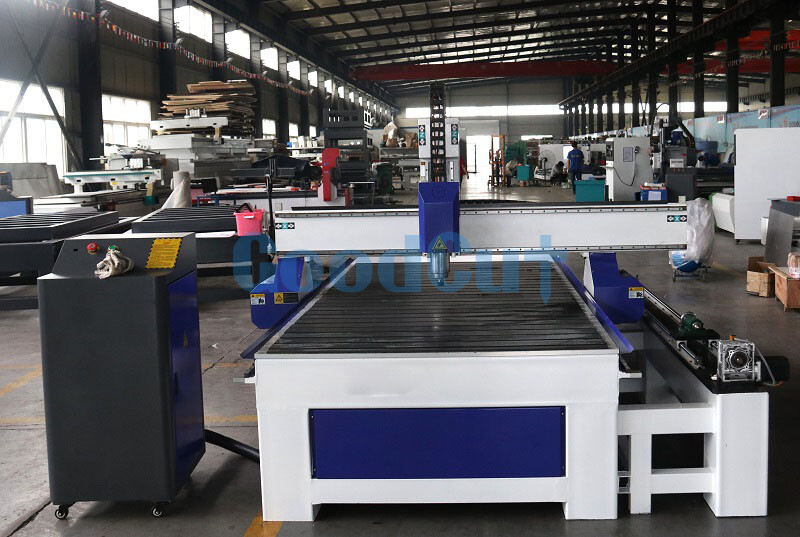

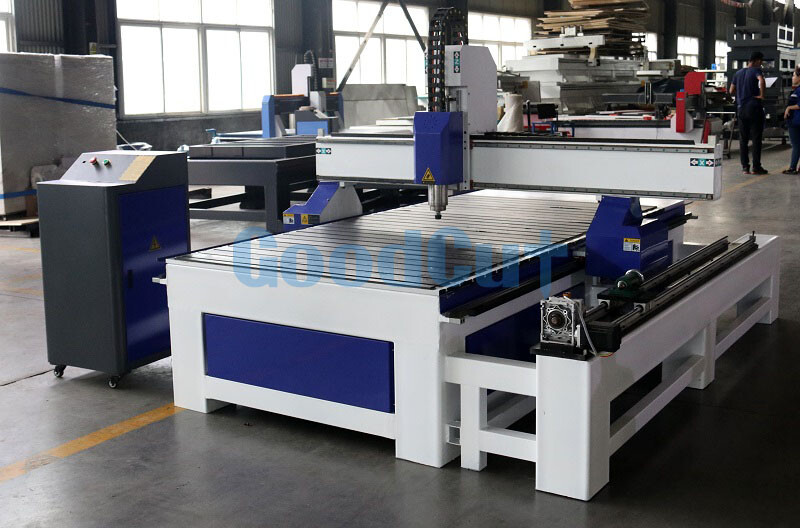

GC1325R 4 Axis CNC Router Machine with Side Rotary Attachment for Woodworking

Parameter:

Feature:

1. Z axis feeding height 200mm

2. Square tube welded steel frame structure-8mm thickness

3. Aluminum T-slot table or Vacuum table + Vacuum pump for optional

4. X axis rack and pinion drive, Y axis 2 way rack and pinion drive and Z axis 2510 Ball screw

5. X, Y, Z axis Taiwan square rails PMI

6. 450B stepper motor and MA860H Leadshine driver or servo motor and driver

7. 3.2KW water cooling spindle and Best inverter, other spindles are optional

8. Nc-Studio-5.4.49 control system, DSP or Mach 3 is optional

Application：

1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,

craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,

crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial

marble,plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

4. relief sculpture, 3D engraving & Cylinder object engraving.
