GC1530WL-TS 3 Axis CNC Wood Turning Lathe Machine Price with Turning Engraving Spindle

Main Feature:

1). Maximum working length is 1600mm, Max.turning diameter is 160mm.
2). Two cutters, one rough cutter, one finishing cutter, the 2 cutters work together, improve the efficiency greatly.
3). Linear square rails, ballscrews, some electronic components are imported, high precision and durable.
4). It is heavy-duty, heavy weight, avoid shaking when the spindle rotates fast.
5). Easy operation, we can draw by autoCAD and other softwares, transfer the files to machine by a USB.
6). Machine with one spindle to engrave pattern.

7). We will customize the size of machine according to customer’s need.

Detailed Images:

1. YAKO inverter: Domestic famous engines, strong driving force, low fuel consumption.

2. DSP control system: No need to connect PC, simple and easy for freshman to learn and operate the machine. A18 can support G codes drawing,such as dxf, 3ds, stl, psd, ai, dwg,bmp,stp,igs etc.

3. Stepper motor: Most famous brand of China, won't lose step when working, speed performance increased about 30%, adopted current control system technology, save power consumption, especially for solid wood and soft metals works, it's very powerful.

4. Taiwan HIWIN guide rails: High precision and less wear , with world famous taiwan Hiwin self-lubricating sliding block.

Product Paramenters:

Advantage:

(1)Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever.

(2)Professional used for wood turning and wooden cylinder engraving, for table legs, stair railing (banisters), etc. wood cnc turning lathe

(3)LCD screen, operated with the computer, more intuitive,convenient operation,simulation is available

(4)Adopt Germany ball screw and Taiwan square guide rail with high transmitting precision and longevity.

(5)Compatible with several CAD/CAM design software, e.g. type3, coreldraw,artcam, etc.

(6)Rotating speed is adjusted by inverter, and the speed data is shown on controlling cabinet panel.

Application:

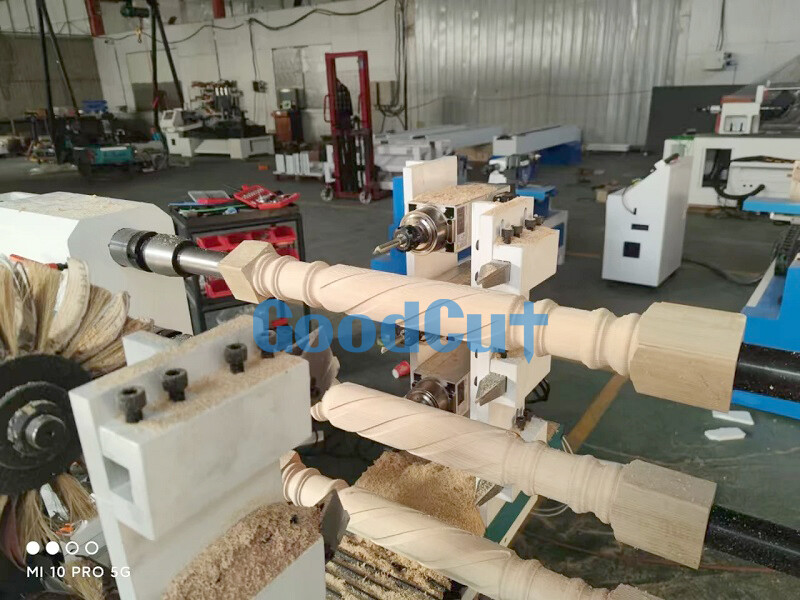

Various cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, various staircase column, stairway balusters, stairway newel posts, dining table legs, end table legs, sofa table legs, bar stool legs,cRoman column, general column, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children' s bed column, chair arm posts;chair stretchers;sofa and bun feet;bed rails;lamp posts;baseball bats and so on.etc.

Staircases,stairway balusters,stairway newel posts;dining table legs;end table Legs;sofa table legs;

bar stool legs;chair legs;chair arm posts;chair stretchers;bed rails, lamp posts,baseball bats and so on
