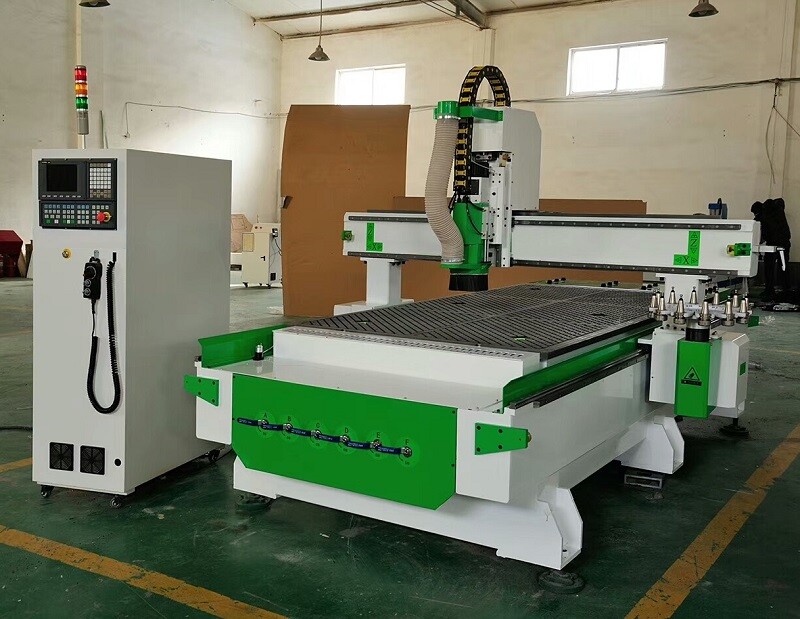

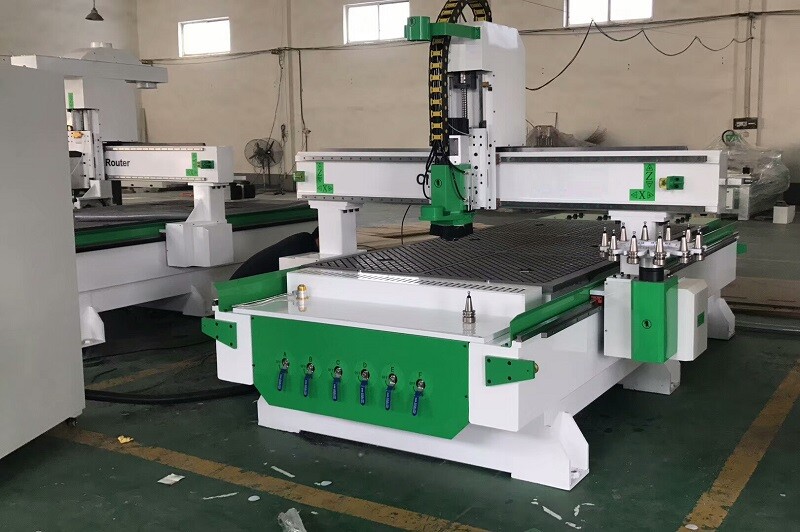

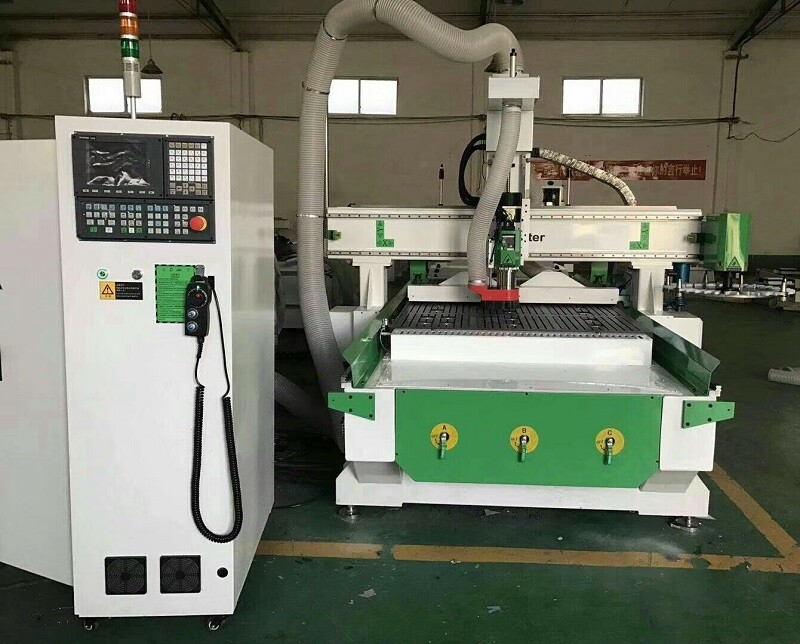

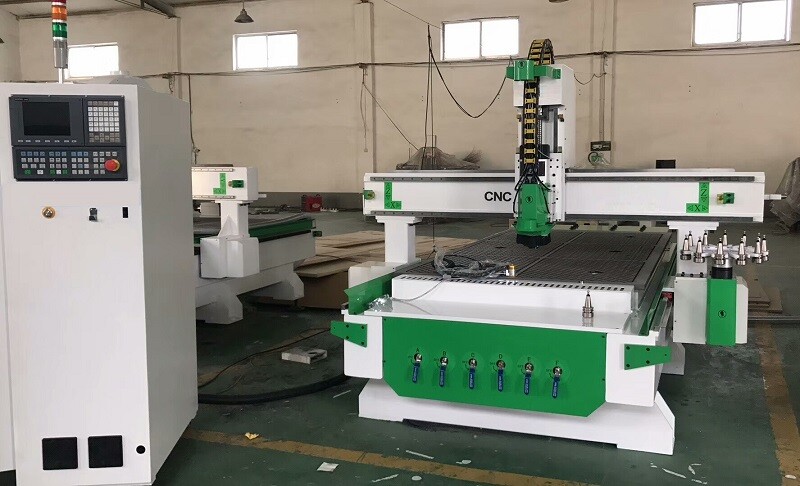

GC1325ATC-D ATC CNC Router Machine with Disk Auto Tool Changer

 Main Feature:

1. Spindle Power: HSD / HQD 9KW air-cooling spindle, with 8pcs disc type tools magazine.

2. Driving System: X Y Z axis Japan Yaskawa / Leadshine servo motor drive, Z-axis with brake.

3. Control System: Taiwan Syntec / LNC controller, high precision and best stability.

4. Converter: Zoncn/ Fuling brand.
5. Cylinder: 10pcs Positioning Cylinders, pneumatic device for loading and unloading platform.

6. Transmission: Taiwan Hiwin square guide rails (Y 30mm, X/Z 25mm), Lifetime free-lubrication, high precision helical rack gear.
7. Beam: Reinforcing steel structure.

8. Cable: YANGLI special shielded cables for drag chain, anti-static, anti-interference, with good bending resistance.

9. Vacuum Pump: 5.5KW.

10. Limit Switch: Japan Omron.

11. Electrical Components: French Schneider Brand.

12. Body Structure: Heavy-duty integral welding steel structure, with tempering aging treatment, which ensure the body durable and never deformation. With big cover outside.
13. Table: Overall steel truss structure, good stability, with no distortion; Vacuum table.

14. Software: Be compatible with G-code NC file.
15. Optional: Loading and unloading platform, Scanning gun, Automatic coding machine, Dust collector.

Advantage:

1. High accuracy, long service time, steady movement
2. Adopt Taiwan intime imported linear guide rail, make sure the machine square the accuracy and can withstand large load
3. Mechanical and electrical design, selection of straight-a excellent brand electrical accessories,will failure rate to a minimum.
4. 9KW air cooling power change knife spindle to ensure the machine can be vigorous cutting
5. Breakpoint power function for carving
6. Auto lubricating system, one touch can finish periodic maintenance easily.
7. Intelligent protection work to prevent incorrect operation etc mesa, may cause the damage of mesa. Intelligent processing
8. Cross-border protection, prevent to design board face more than processing wide of the mechanical collision caused phenomenon

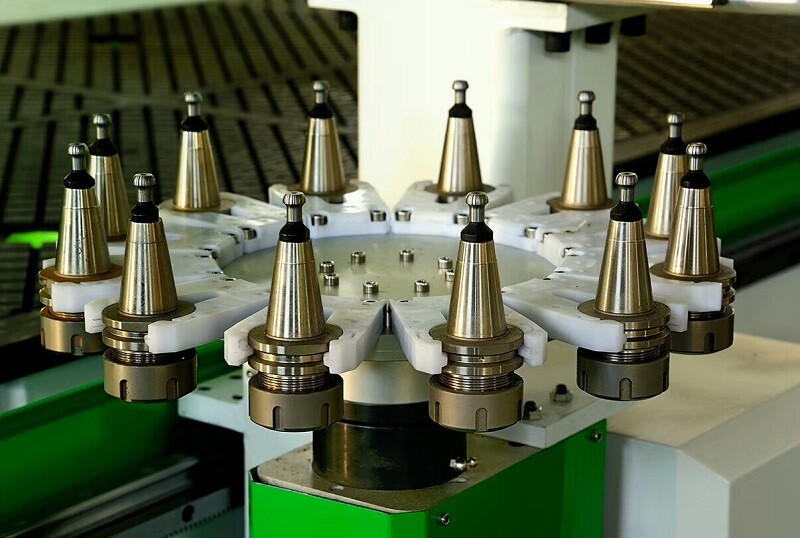

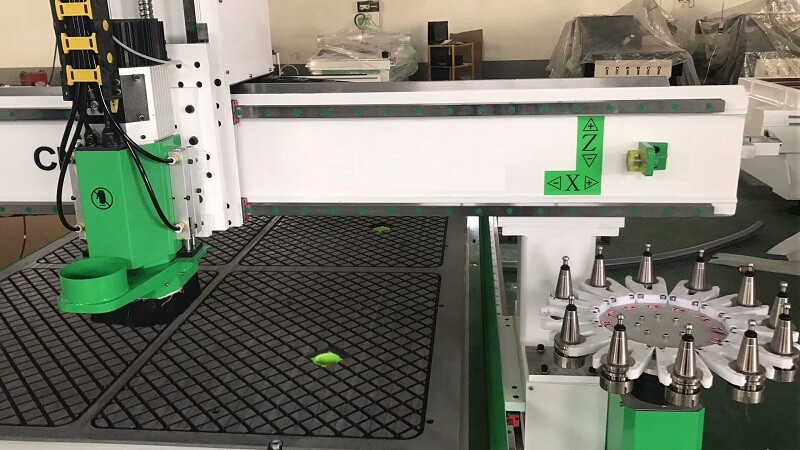

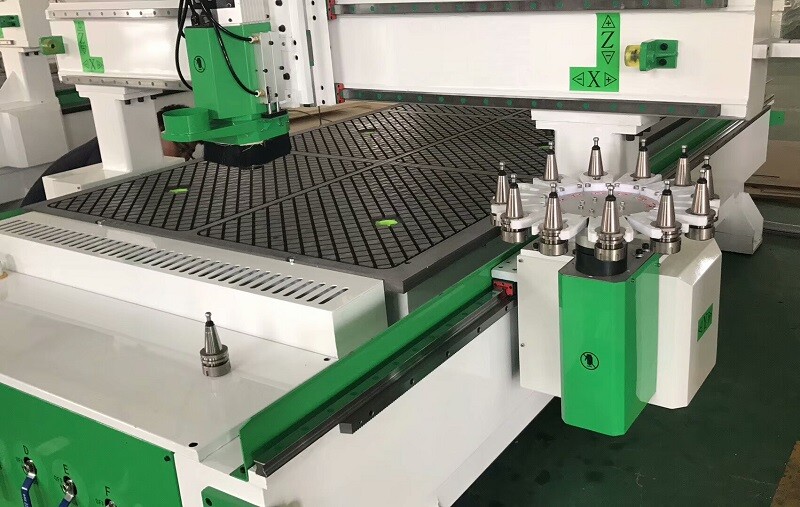

9. Auto-tool Changer system, Tool magazine capacity of 8 tools

Application:

1. Furniture industry: panel furniture, cabinet wardrobe, office furniture, custom furniture. Wood doors, cabinets, solid wood furniture cutting and carving; Wood products: speakers, game cabinets, computer tables, sewing machine, musical instruments.

2. Plate processing: particleboard, ecological board, carpenter board, medium board, insulation, plastic chemical parts; PCB; motor car body, bowling ball; anti double board, epoxy resin, ABS, PP, PE and other carbonized mixtures.
