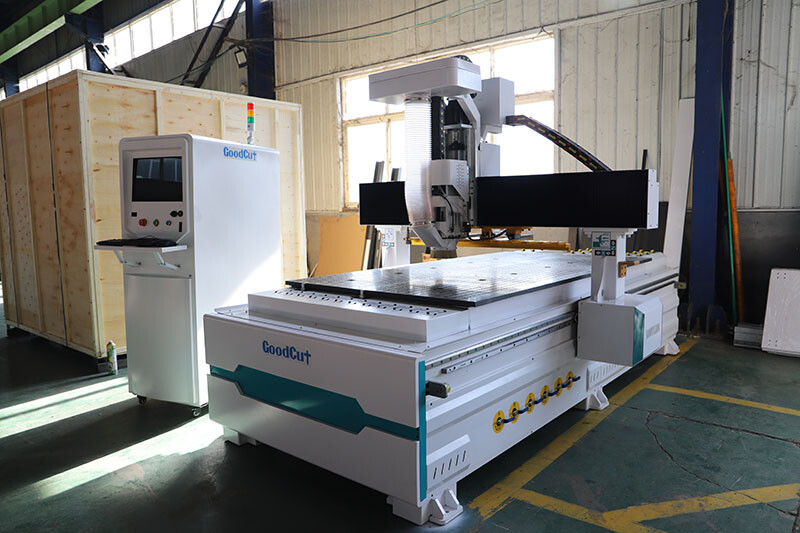

GC1325ATC Jinan 1325 ATC CNC Router Machine For Woodworking

Feature:

1) Weihong control system: Popular and easy operation, with USB port to transfer program;

2) China Local Brands air-cooling ATC spindle HQD: Long working life, easy maintenance;

3) Taiwan Delta Servo Driving System: With highly control precision and high speed, reliable and stable;

4) Taiwan Hiwin Guide 30mm and Block: Guaranteed genuine rail with good quality,realizing smooth movement;

5) Taiwan TBI ball screw: linear motion with high precision and and in high speed

6) Helical rack and pinion: quiet running, greater accuracy, smoother cutting and allows greater accelaration and feeding rates, longer lifetime because of smaller wearing force.

7) Taiwan Delta Inverter: Guarantee the variety working speed and protect the spindle very well;

8) Linear tool magazine, with Tool holders x 6pcs and Toolholder fork x 8 pcs, effectively improve working efficiency.

9). Optional: Loading and unloading platform, Scanning gun, Automatic coding machine, Dust collector.

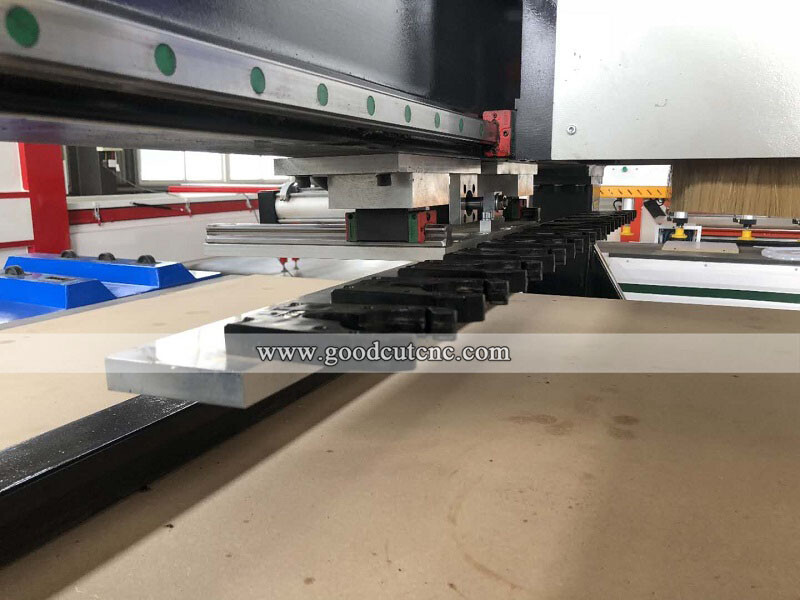

Linear auto tool changer with 8 tool holders and 8 tool forks, could save a lot of working time and is very convenient

Advantage:

1. High accuracy, long service time, steady movement
2. Adopt Taiwan intime imported linear guide rail, make sure the machine square the accuracy and can withstand large load
3. Mechanical and electrical design, selection of straight-a excellent brand electrical accessories,will failure rate to a minimum.
4. 9KW air cooling power change knife spindle to ensure the machine can be vigorous cutting
5. Breakpoint power function for carving
6. Auto lubricating system, one touch can finish periodic maintenance easily.
7. Intelligent protection work to prevent incorrect operation etc mesa, may cause the damage of mesa. Intelligent processing
8. Cross-border protection, prevent to design board face more than processing wide of the mechanical collision caused phenomenon
9. Auto-tool Changer system, Tool magazine capacity of 8 tools

Application for GoodCut multi tool cnc router

* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
