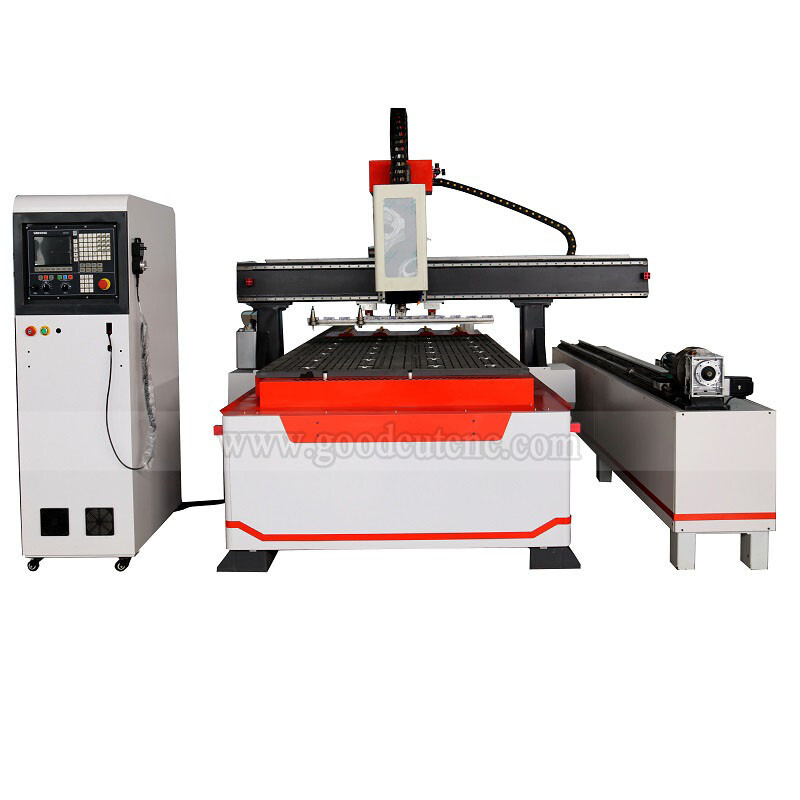

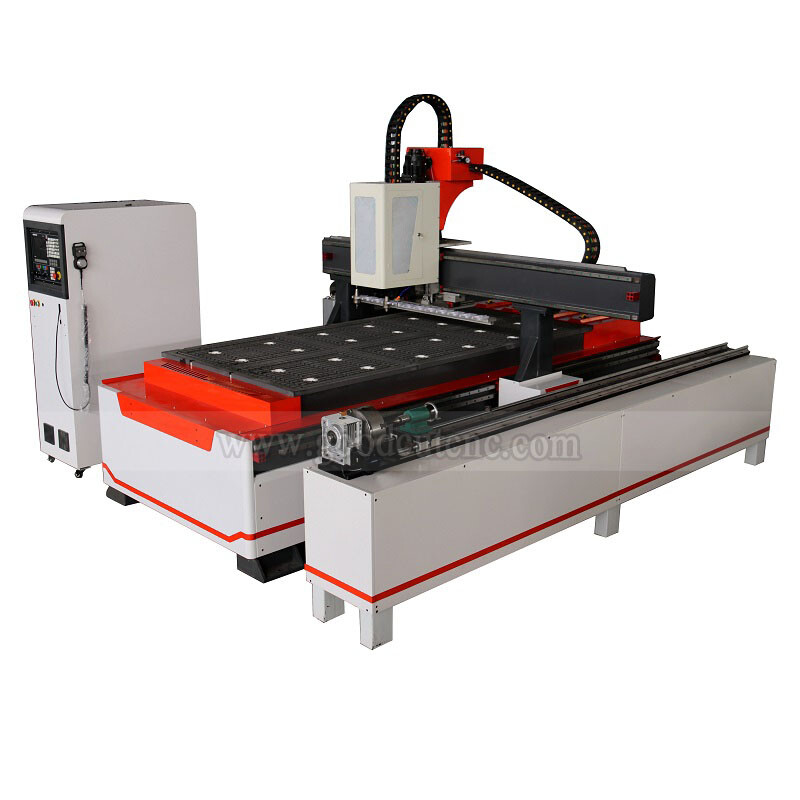

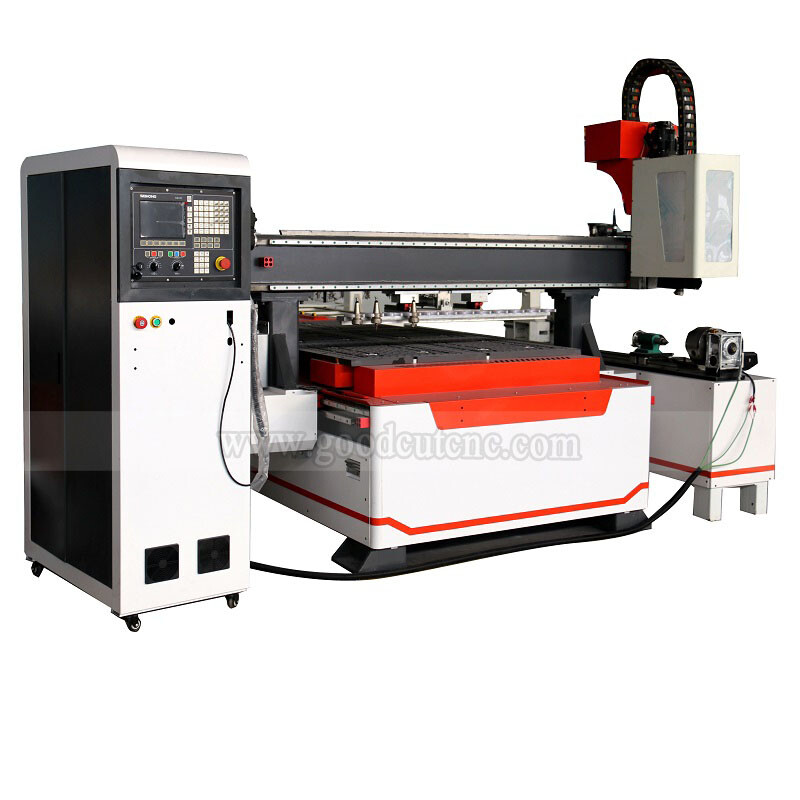

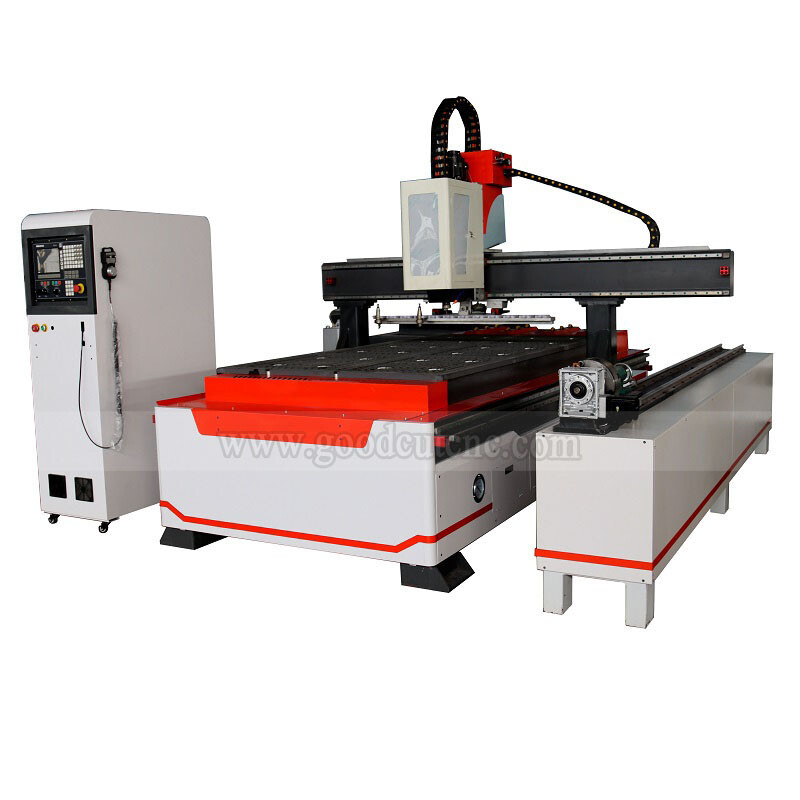

GC1325ATC-R GoodCut Linear Automatic Tool Change CNC Router with Rotary GC1325A-LR
Product description: 12 sets magazine automatic change tool wood cnc machine, High quality Japan Yaskawa Servo motor driver, Jinan GoodCut CNC Machinery Co.,Ltd.
Product Description

GC1325ATC-R GoodCut Linear Automatic Tool Change CNC Router with Rotary GC1325A-LR

X, Y, Z effective working area1300*2500mm / 1500*3000mm / 2000*3000mm (optional)
Tool magazine12pcs linear tool change magazine
Rotary diameter200mm / 300mm / 400mm diameter
SpindleHQD / Italy HSD 9kw air cooling spindle
InverterFuling / Delta
Motor and driverLeadshine / Taiwan Delta / Japan Yaskawa servo motor
Control systemWeihong / Taiwan Syntec / Siemens (optional)
TableVacuum adsorb table with T-slot+7.5kw vacuum pump
FrameHeavy duty frame
TransmissionX Y Rack gear, Z Taiwan TBI ball screw, Taiwan HINWIN 20mm guide rails
SoftwareArtcam type3



9.0kw HSD ATC spindle and carousel tool changing magazine, the machine can change tools automatically during the work. Working area is1300*2500*250mm, widely used in furniture industry.

HSD or HQD 9KW(12 HP )



 rotary axis with 100-500mm diameter, can process legs.
