  • GC3220B CNC Bridge Saw Cutting Machine 5 Axis for Stone

GC3220B CNC Bridge Saw Cutting Machine 5 Axis for Stone
GC3220B
CNC bridge saw cutting machine 5 axis
3200*2000mm working size
Blade motor power 15kw
Product description: 3200*2000mm working size Blade motor power 15kw Spindle power 5.5kw XYZ + 360degree rotating head + tilt 45degree
Iquiry
Contact
Product Description

GC3220B CNC Bridge Saw Cutting Machine 5 Axis for Stone

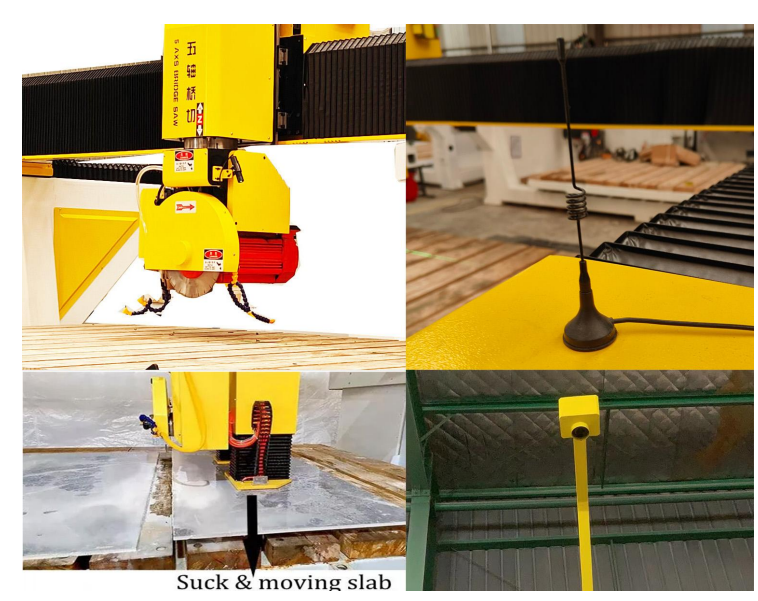

GC3020B- 5.png

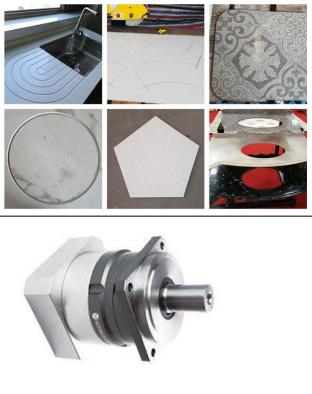

Multi processing functions

Cutting (square , diamond, circle, oval, can cut 45degrees, profiling cut), grinding , edging, polishing, beveling cutting, dig a round, drilling hole, open sink.




Technical parameters
3200*2000mm working sizeBlade motor power 15kwSpindle power 5.5kwXYZ + 360degree rotating head  + tilt 45degree87degree hydraulic tilting table (for easy loading )PLC + keyboard +mouseInfrared cutting reference - position laser lightRemote controlSupport DXF files, also can draw directly on the systemAutomatic pneumatic press device included
Programming method 1 : manual programmingProgramming method 2 : image input
Control method: CNC
Automatic pneumatic press device
Blade motor power 15kw
Working voltage 3phase 380v 50hz
Rpm 2980r/min
Blade size 350mm
X axis working stroke 3200mmY axis working stroke 2000mmZ axis working stroke 260mm
A axis working stroke 360degree free rotation
5.5kw spindle ( edge polishing, milling , open sink,and so on) 24000rpm
Reversal table for easy loading

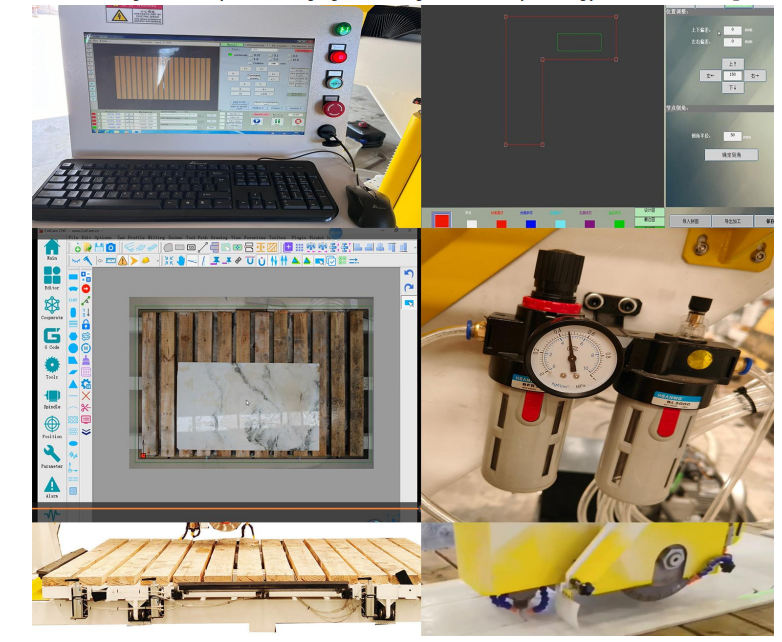

Control system PLC with keyboard and mouse
X/Y cutting speed 6000-8000mm/minZ axis cutting speed 4000-5500mm/minA cutting speed  0-8r/min
Cutting thickness 100mm
Processing precision 0.02mm
Red light positioning :including, infrared cutting reference
Working table size 3200*2000
Package size 5400*2200*2100mmWeight 4500kg
Function: cutting ( square , diamond, circle, oval , can cut 45 degrees profiling cut) , grinding , edging, polishing, beveling cutting , dig a round, drilling hole, open sink.

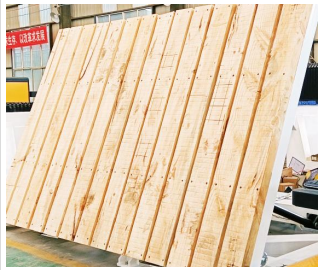

Automatic flip table

The maximum can be turned over 85 degrees, convenient automatic loading and unloading
