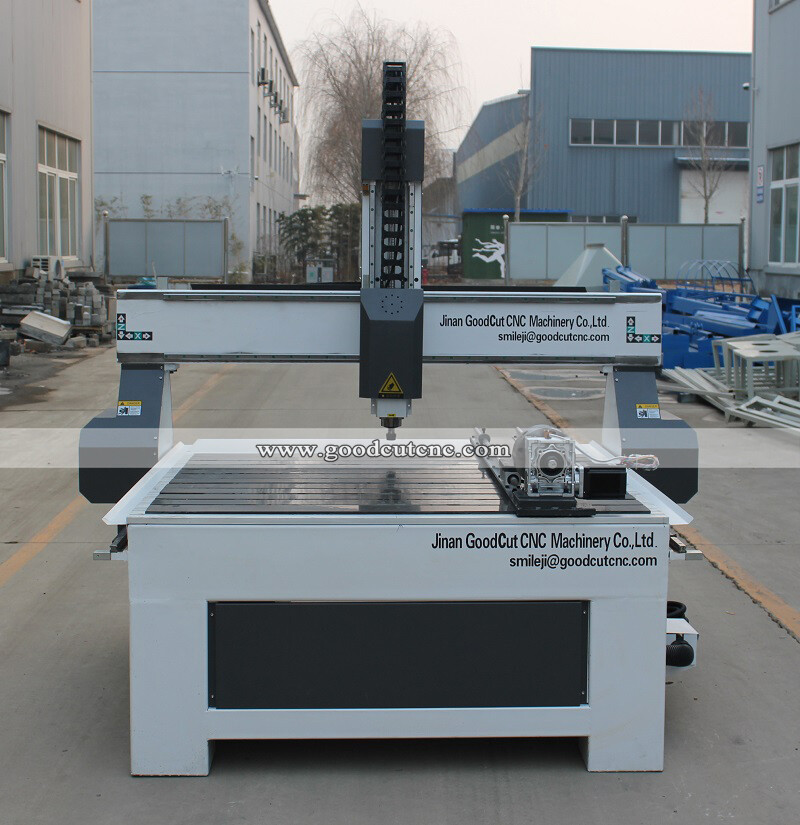

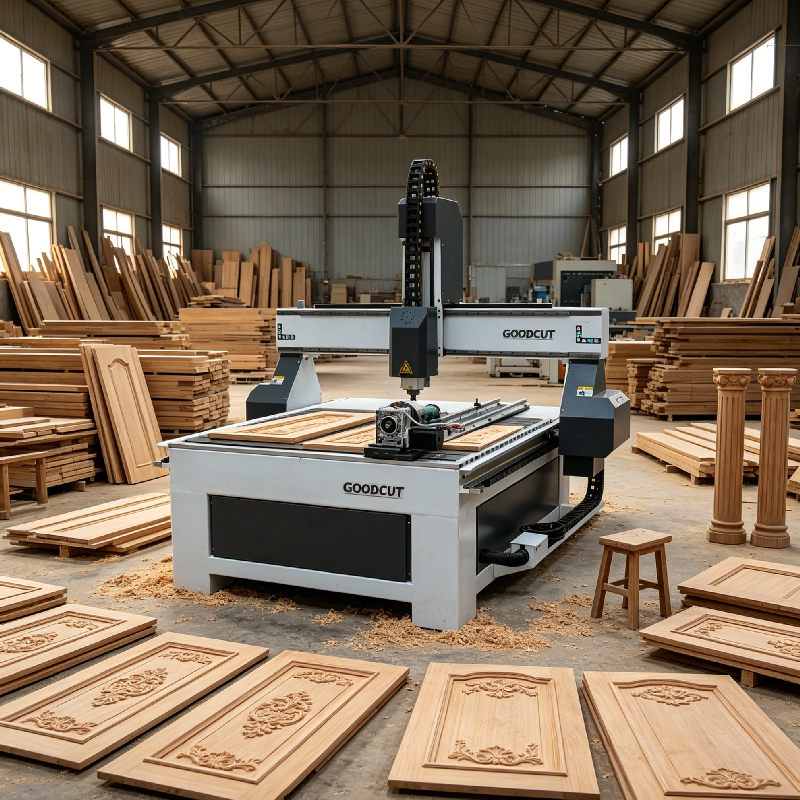

GC1212TR GoodCut 1212 4 Axis Wood Carving CNC Router with Rotary Device for MDF Acrylic
1200*1200mm working size
4 axis rotary device
wood mdf carving cutting
movable rotary on the table
Product description: 1200*1200mm small working size 4th axis rotary device on the table, is movable.
Product Description

GC1212TR GoodCut 1212 4 Axis Wood Carving CNC Router with Rotary Device for MDF Acrylic

Parameter:

Table size:1200mm*1200mm
Spindle power:3.2KW water cooling spindle(Other power for optional)
Working voltage:AC380V or 220V /50Hz or 60HZ
Working precision:About 0.1mm
Table structureAluminum working table with T slot
TransmissionTaiwan HIWIN square guide rail, TBI Ball screw
Motor and driverLeadshine stepper motor and driver
Spindle rotating speed:24000 revolution/min
Max speed of working:25000mm/min
Feeding height 200mm(option)
The diameter of rotary150mm
The engraving instructionG code
ControllerWeihong controller/DSP/Mach 3

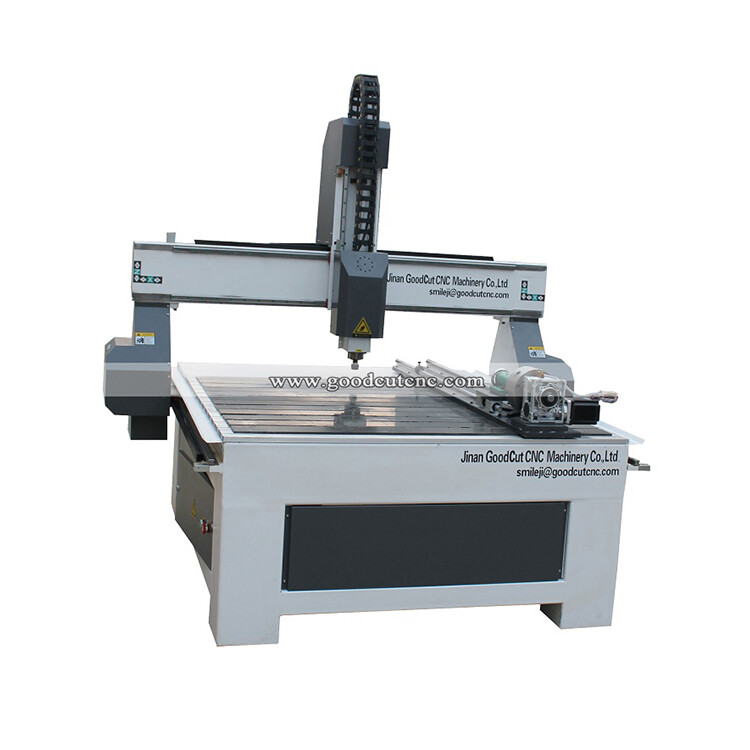

GC1212TR GoodCut 1212 4 Axis (2).jpg


Feature:

1. Welded frame, solidity and stable.

2. Adopt Hiwin square rail guides and imported TBI ball screw to ensure more stable

movement and high accuracy.
3. T-slot PVC table with Aluminum profile decorative appearance beautiful design.
4. Advanced water cooling brush-less spindle ,low noise ,long time mass processing.

5. NC studio controller/DSP/Mach 3 controller

6. Compatible with kinds of software such as TYPE3,Artcam,etc.

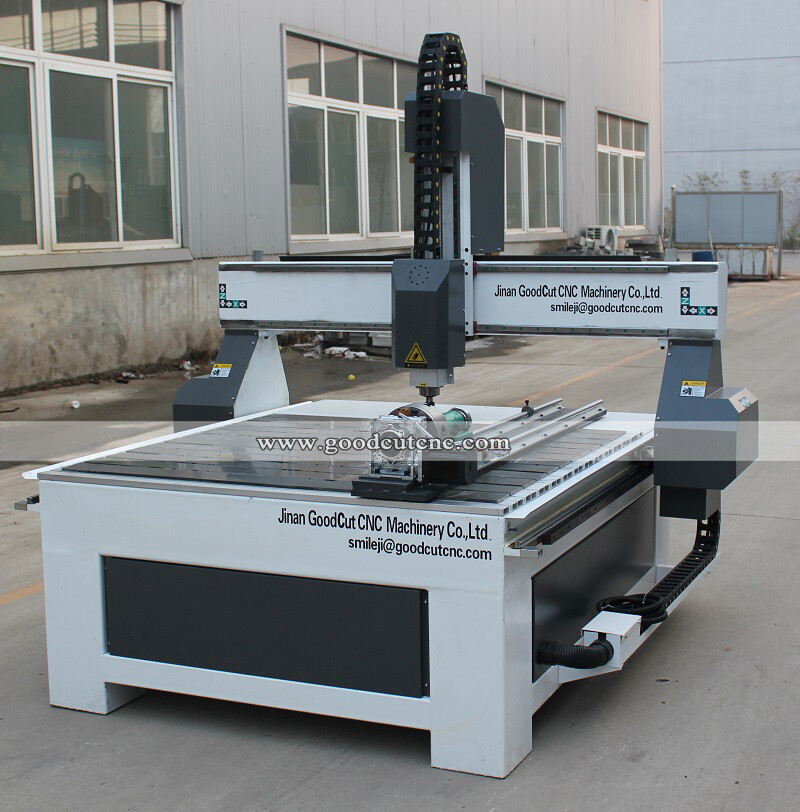

GC1212TR GoodCut 1212 4 Axis (4).jpg

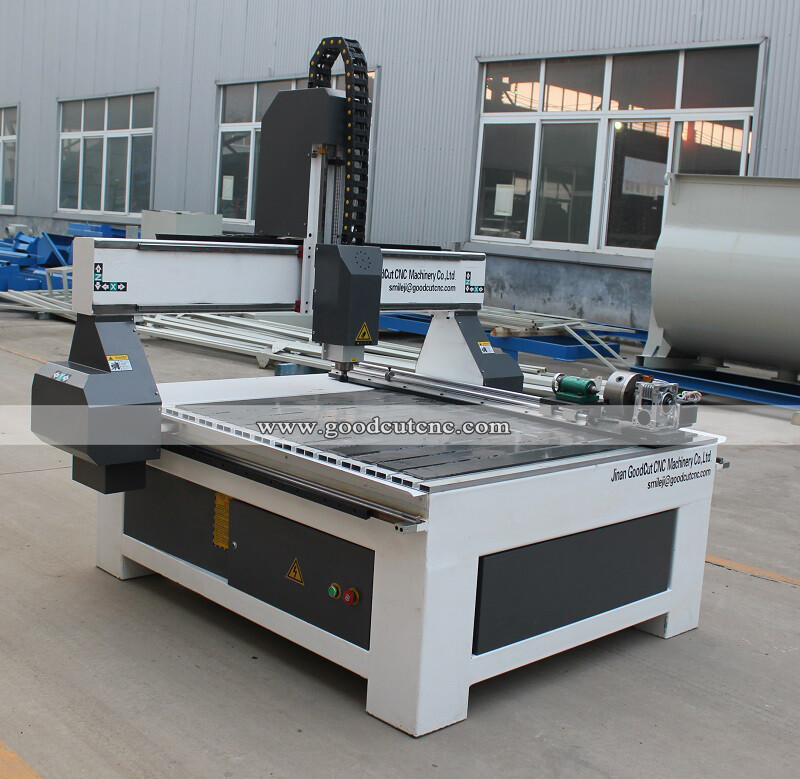

GC1212TR GoodCut 1212 4 Axis (5).jpg

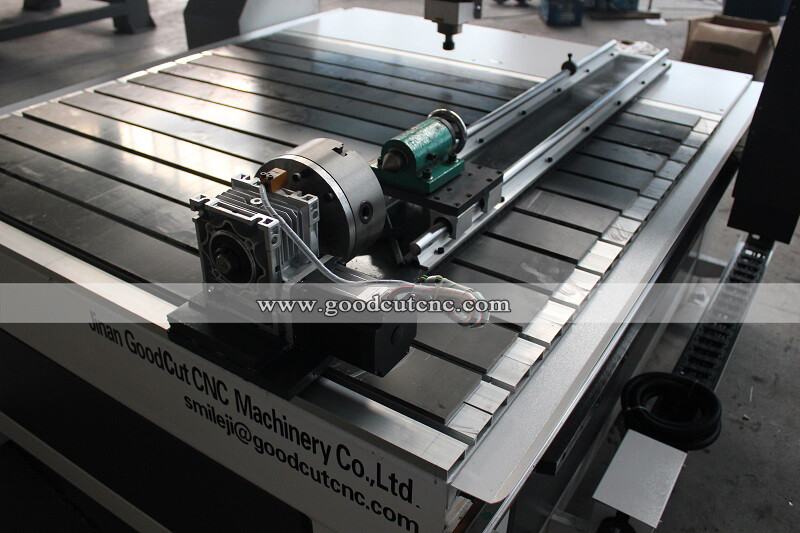

GC1212TR GoodCut 1212 4 Axis (6).jpg

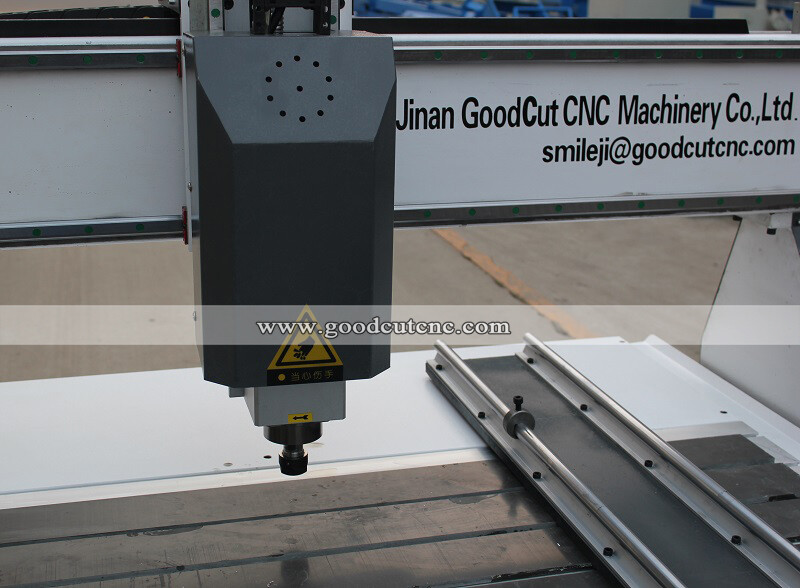

GC1212TR GoodCut 1212 4 Axis (7).jpg

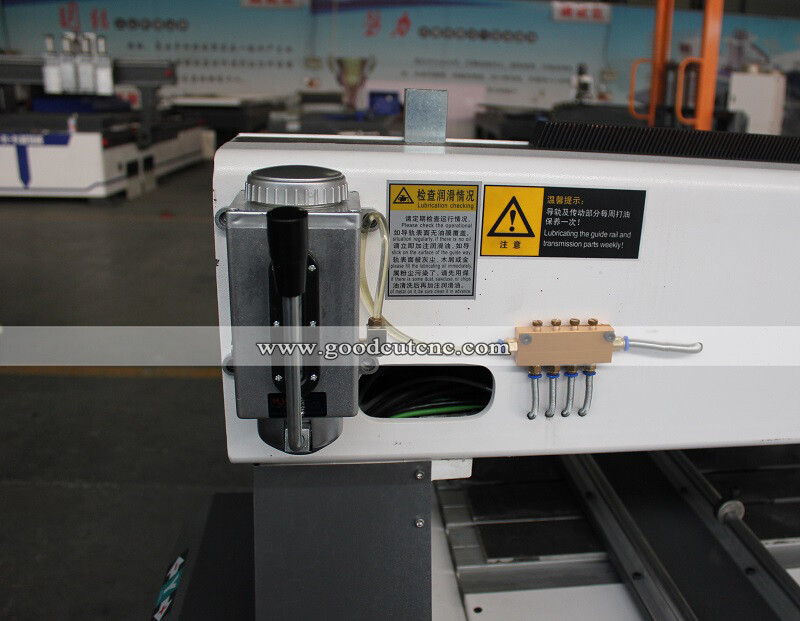

GC1212TR GoodCut 1212 4 Axis (8).jpg

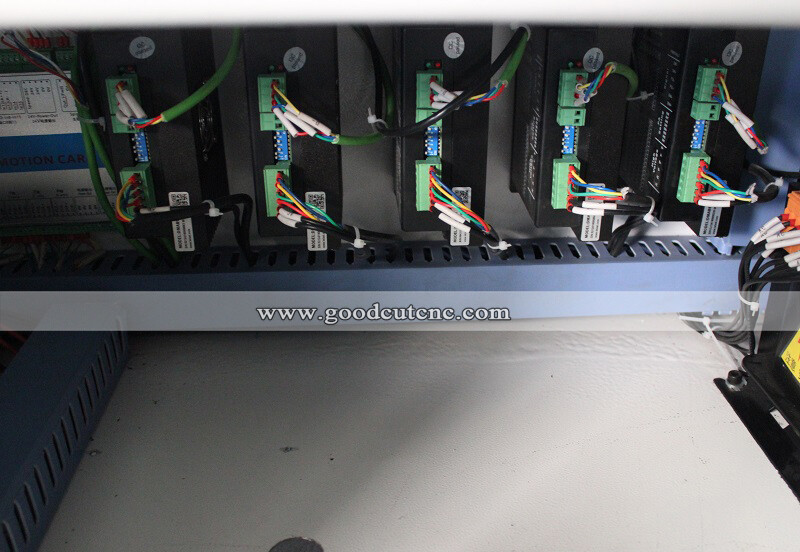

GC1212TR GoodCut 1212 4 Axis (9).jpg

Application:

1. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
2. The wood products: voice box, game cabinets, computer tables, sewing machines table.
3. Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate
board, epoxy resin, ABS, PP, PE and other carbon mixed
4. Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

GC1212TR GoodCut 1212 4 Axis (10).jpg

GC1212TR GoodCut 1212 4 Axis (11).jpg

GC1212TR GoodCut 1212 4 Axis (12).jpg
