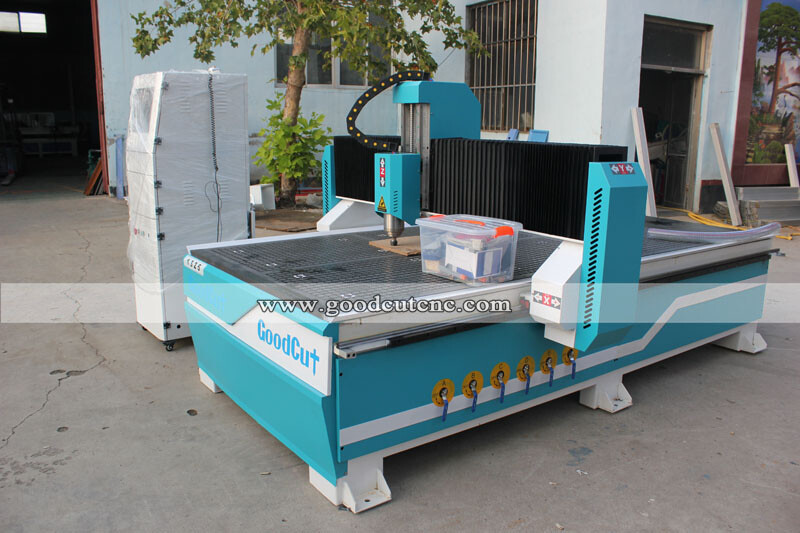

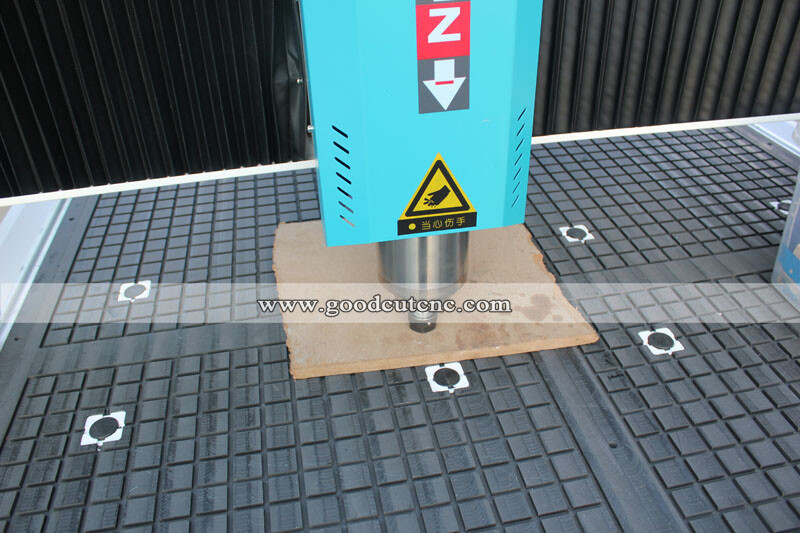

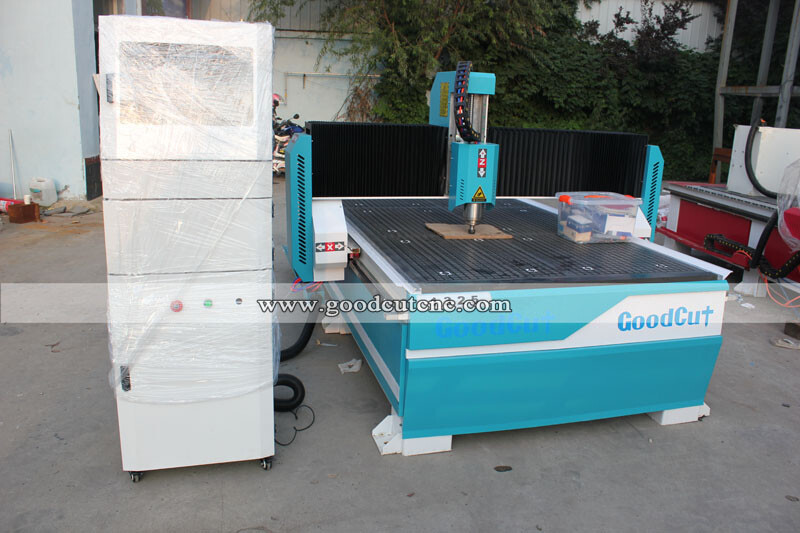

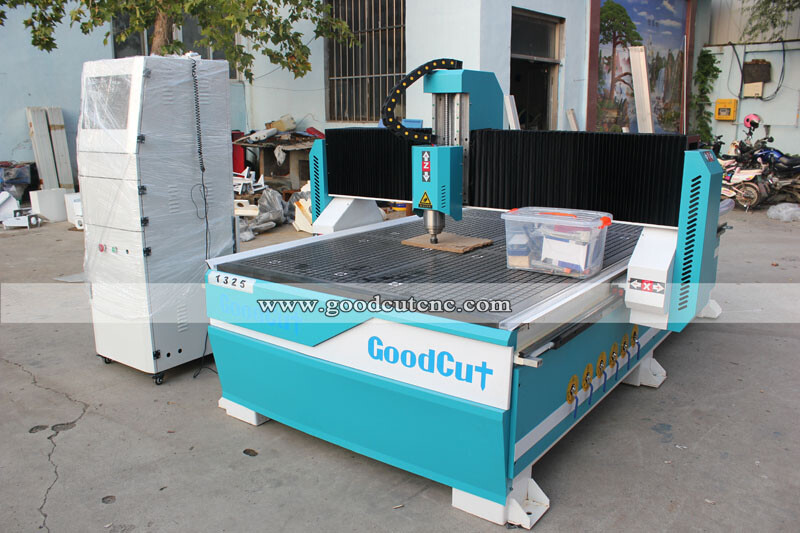

GC1325V Jinan GoodCut 1325 Woodworking Cnc Router with Vacuum Adsorb Table

Description:

1.The machine body is welded by thick steel pipes,Working stable, long time without deformation, high precision

2.1300x2500x200mm working table(option:1500x3000mm,2000x3000mm,2000x4000mm or accordin your requirements)

3.Z axis adopts Taiwan TBI ball screw transmission,high accuracy

4.Hiwin linear guide rail from Taiwan,the quality are much better

5.Gantry moving,The position precision is much better.

6.3.2kw water cooling spindle,good cooling effect,low noise.(option:4.5KW,5.5kw , 6kw,9kw air cooling spindle,long using life,easy to installation and operation)

7.Chinese famous Leadshine stepper motor and driver,(option:Hybrid servo motor or servo motor)

8.Fuling inverter,(option:Delta inverter,well control frequency and adjust spindle speed)

9.NC-Studio control system.(option:DSPMach3/Syntec control system)

10.Emergency alarm system,ensure the operators safety

11.Dust collector ,ensure the working environment clear

12.CE certificates supply and with 2 year warranty

13.Voltage:380v/50hz/3 phase or 220v/50hz/single phase

14.Option:vacuum pump,dust collector

Parameters:

Application for Jinan GoodCut 1325 woodworking cnc router with vacuum adsorb table

1. Craft & gift industry: engrave various word or graph on the souvenir and handicraft, ironwork engraving, dials.

2. Advertising industry: engrave and cut various signboards, marble, copper, character mold, font. And various metal sign, brand.

3. Wood working industry: mainly used in redwood classical and antique furniture, wood carving, gifts wooden box ,redwood jewelry boxes, instone cutting, decorative products sculpture, fine jewelry carving.

4. Model industry: company plate, signs, building models, emblem, badge, display panels, fair signs, building numbers, signs of decoration, shoes, badge, embossed mould, biscuit, candy, chocolate mould.

5. Other lines: also used in portraits, landscapes, calligraphy lettering, seal carving and other plane surface carving, basso-relievo.
