Spindle: 3.2kw 4.5kw 5.5kw, 6kw HQD/HSD water/air cooled spindle
Motor and Driver: Leadshine/ Taiwan Delta/ Japan Yaskawa
Control system: DSP/ NC studio/ Mach3
Product description: This machine is widely used for buddha,table legs,etc engraving .The machine structure of strong, large cutting force, high speed,suitable for processing large quantities of material.

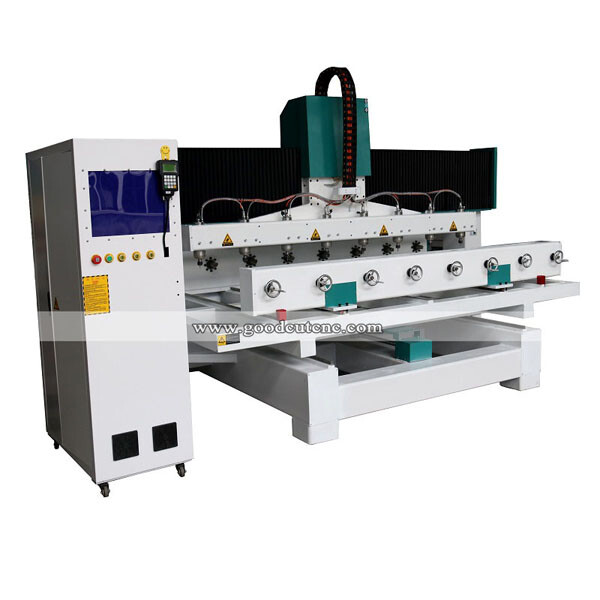

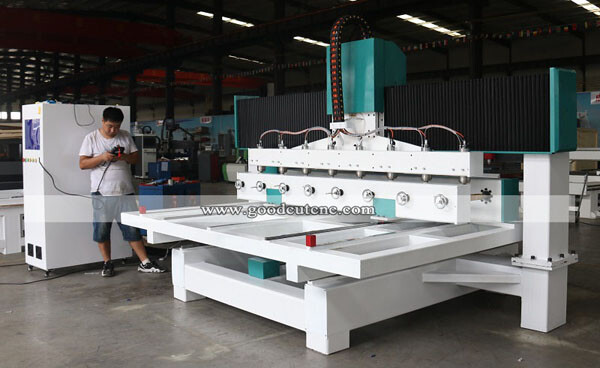

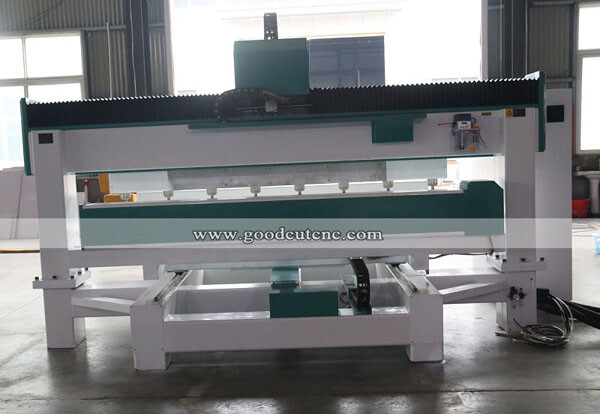

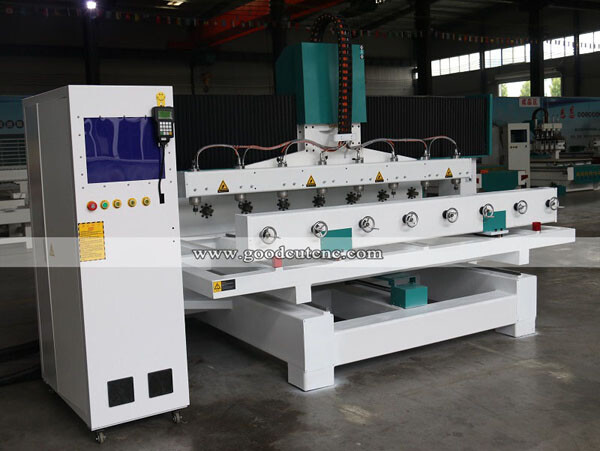

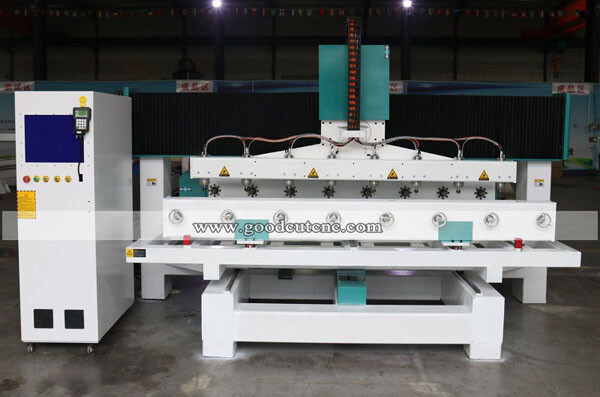

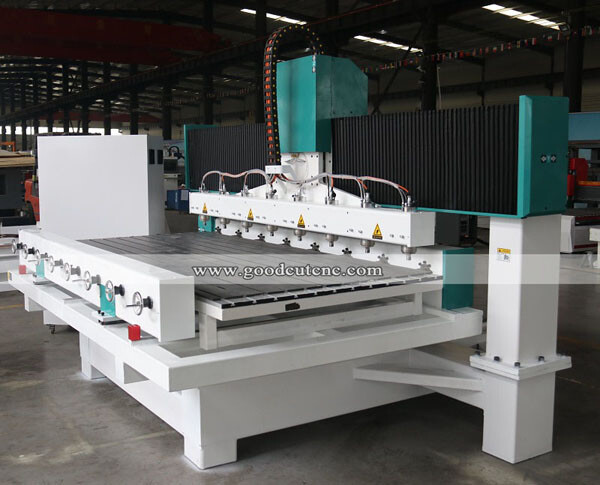

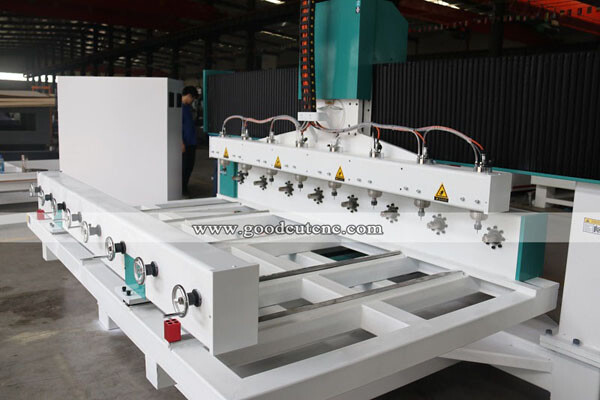

GC1530-8R Multi Heads 8 Spindle 8 Rotary Axis Cnc Router Machine For 3D Furniture Legs
1. Working length: 1200mm, Max diameter 250mm
2. Industrial Heavy Duty Cast steel Structure.
Solid gantry, well structure of lathe bed, guarantee the machine stability, stable and high speed, high accuracy.
3. High Efficient German Rack gear transmission; X,Y axis Rack and pinion, Z axis German Ball Screw
4. Taiwan Hiwin square guide rail
5. Servo motor and driver System, guarantee working precision, have no loose step situation
6. 8*2.2KW Inverter

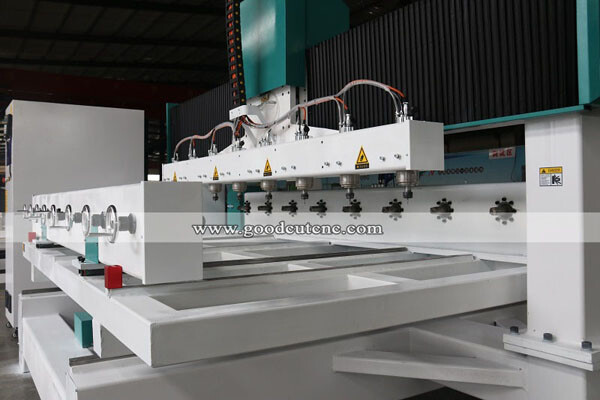

7. 8*2.2kw water cooling spindle, can work at the same time , so higher efficiency
8. Table moving making the machine can work on both flat and rotary shapes
9. RichAuto 4th Axis A18 DSP handheld Controlling System with USB interface
10. Software:
Along the cnc drouter machine with carved software,advanced file pretreatment function can correct the error in the files and is compatible with the process codes of multiple national and international software.(such as Powermill, UCANCAM, Type3, Artcam,).
Application:
Besides working on flat materials, the machine is widely used in carving cubic and column work piece such as wooden table legs, the human body, figure of Buddha, the goddess of mercy, sculpture, handicrafts, stair handrail, cylinder Musical Instruments.
