• Wood CNC Router

GC6060-ATC Small CNC Router Machine with Automatic Tool Changer
High pricision
ATC
6 pcs tools maganize
3 axis ball screw
Product description: High precision ATC model 6 pcs tools magazine NK105 G3 controller
Product Description

GC6060-ATC Small CNC Router Machine with Automatic Tool Changer

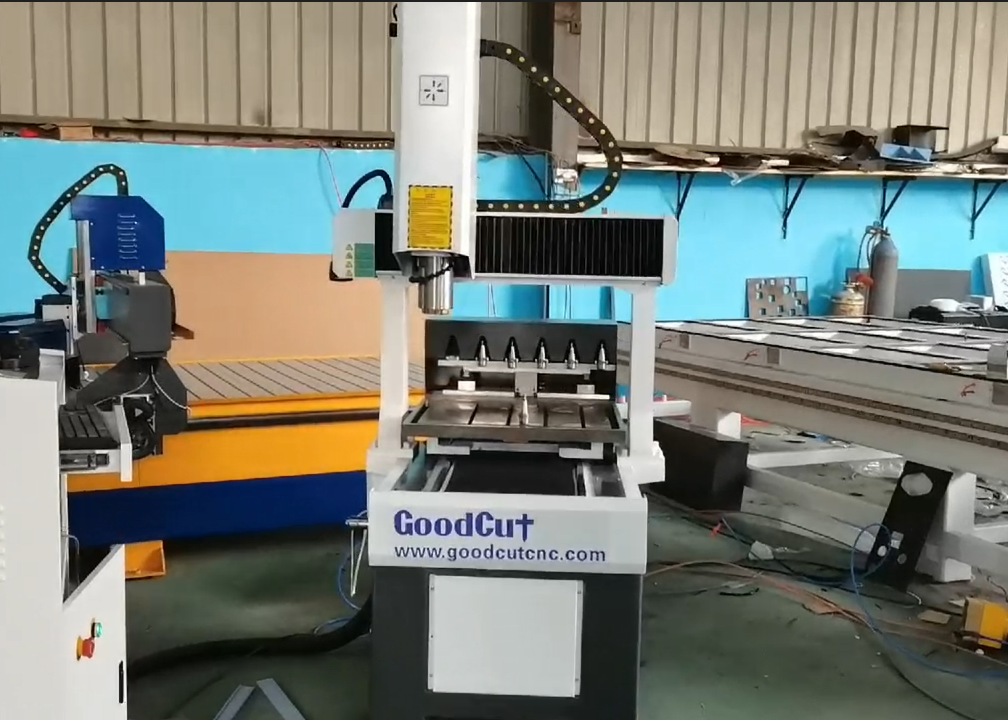

GC6060-ATC Small (1).png

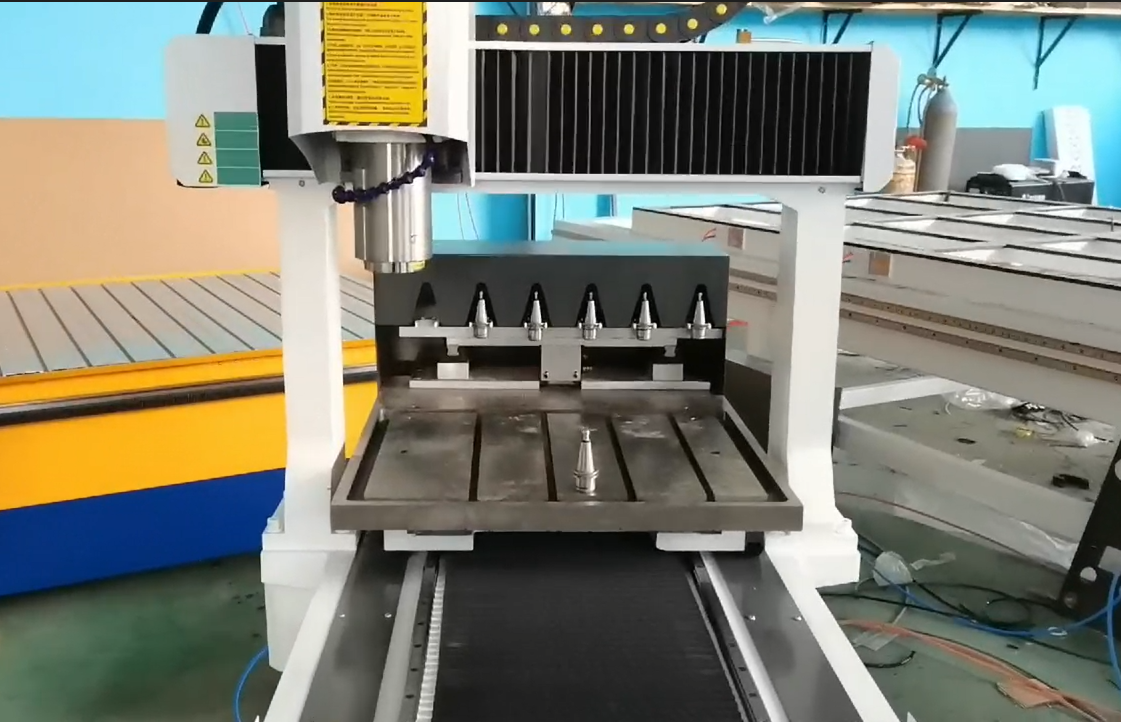

GC6060-ATC Small (2).png

Products Paramenters

ModelGC6060 ATC
Working area600*600*150mm (can be customized)
Working Voltage220v, 1PHASE, 50HZ  or 380v 3 phase (depends on your local voltage)
Control SystemNK105 G3 controller
Spindle5.5KW HQD water cooling spindle
Tool MagazineLinear Tool Magazine*6 pcs
Spindle speed0-24000RPM
Motor and DriverJapan YASKAWA servo motor and driver
Inverter7.5kw BEST inverter
StructureWhole cast iron frame
Table surfaceRemoveable tableCast iron table
Limit stopHard limit stop and Omron electronic limit stop
CalibrationAutomatic tool sensor calibration
Transmission3 axis ball screw transmission
Command languageG Code
SoftwareArtCam, Ucancam,Type3
OptionalItaly HSD air cooling spindleDust CollectorRotary device

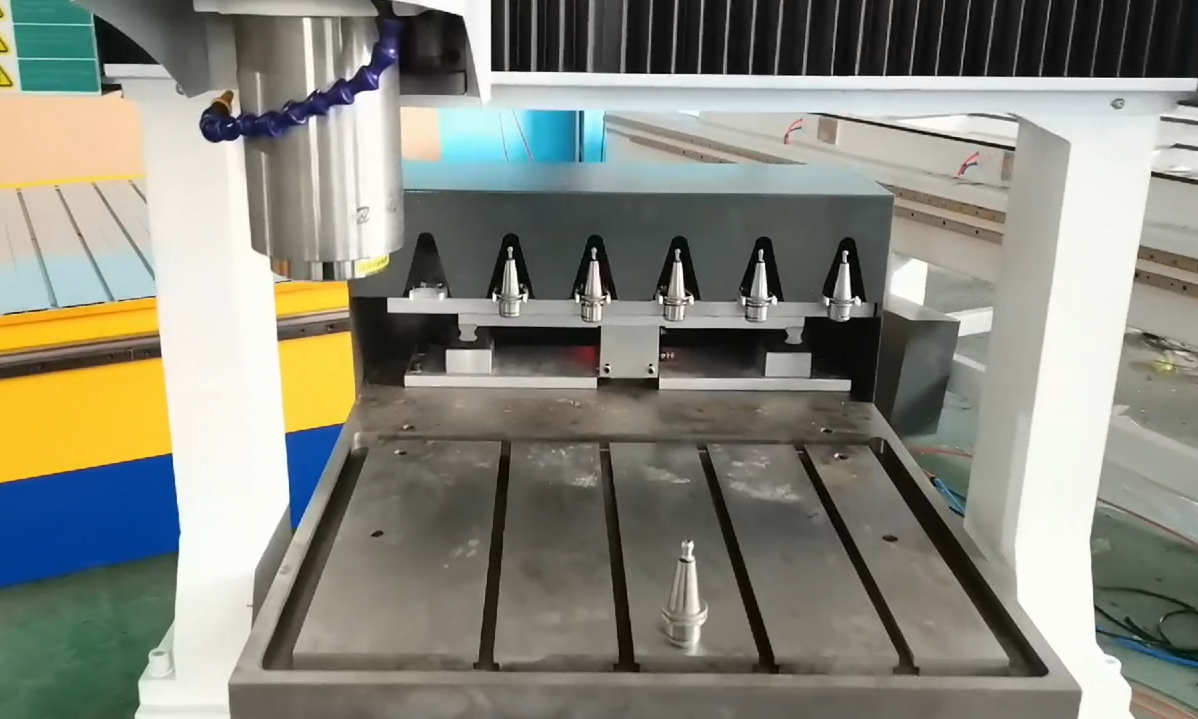

GC6060-ATC Small (3).png

Applications

1. Wood furniture industry Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry Signage; Logo; Badges; Display board; Meeting sign board; Billboard. Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration wood crafts; gift box; jewelry box.

5. Others Relief sculpture and 3D engraving and Cylindrical object.

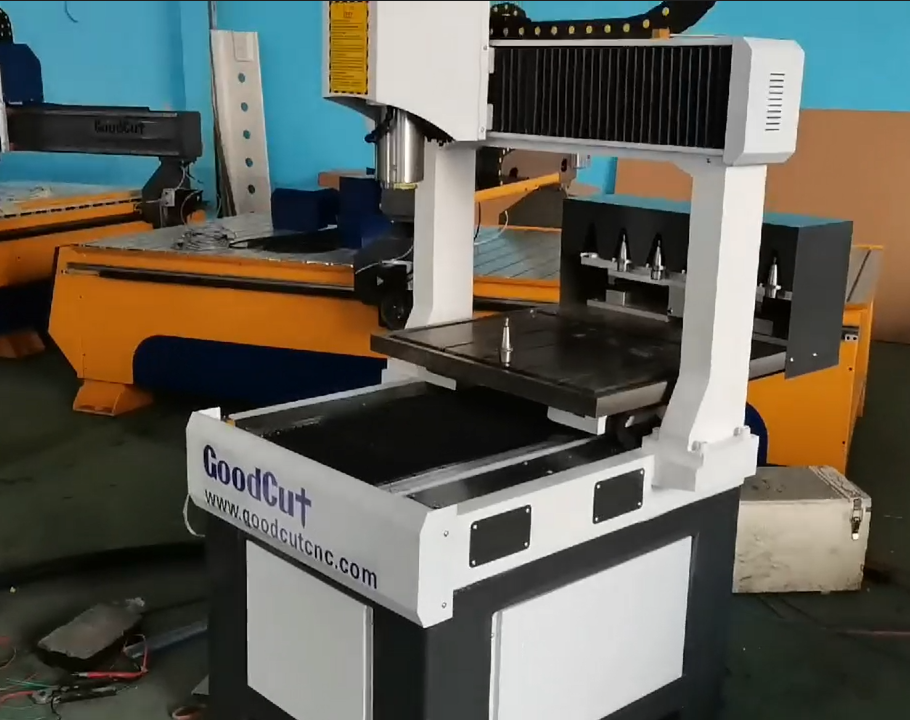

GC6060-ATC Small (4).png
