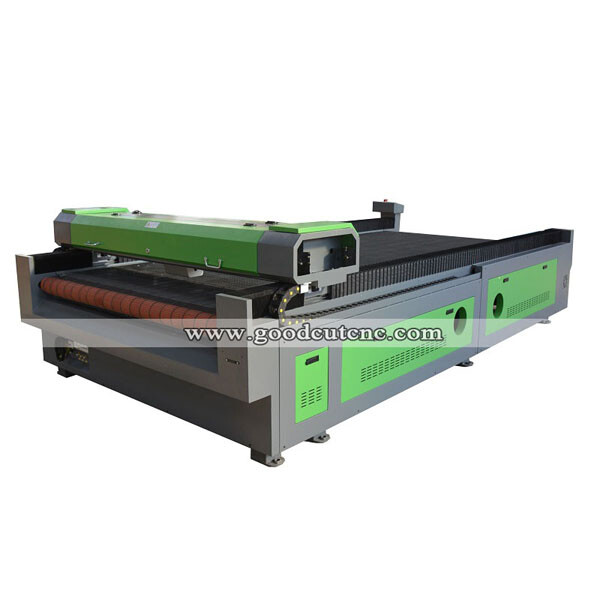

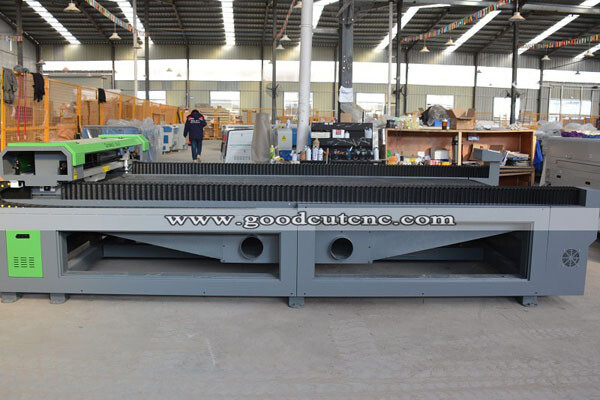

GC-1625LA Automatic Feeding CO2 Laser Engraving Cutting Machine for Cloth Leather Fabric

What is Laser Fabric Cutter?

A laser fabric cutter is a type of CO2 laser cutting system that uses high-energy-density laser beams to complete rapid cutting work on clothing fabrics. Fabric laser-cutting machines are widely used in the textile and garment industry. Laser fabric cutting machines are applied to cut fabrics, lint-free cloth, linen, cotton, chemical fiber, woven fabrics, lace, leather, mesh, trademarks, clothing accessories, and more flexible fabrics.

Traditional cutting methods lag with precision and accuracy and this is the key reason that CNC laser fabric cutters are gaining popularity progressively. Traditional cutting methods like scissors, rotary cutters, and manual fabric cutting machines usually fail to cut intricate patterns.

On the other hand, a CNC laser fabric cutter with an automatic feeder offers versatility and flexibility with better efficiency.

Features:

1). Auto-feeding system adopts crawler-type workable, dual laser head mutual move processing and auto-feeding system, providing the fast cutting speed, high utilization rate of material and continuous cutting.

2). Adopt Singapore Silicon reflect mirror and lens, wear resistant, stand fire, don't need to change constantly, low use-cost, thin laser spot, well-proportioned laser beam.

3). Advanced speed control system. It could change speed instantly during the cutting according to the different requirement of curve and straight line.

4). Easy to operate. USD offline control system: design on one computer and used on many machines, saving the PC memory source.

5). Connecting system for varies length materials cutting.

Parameters:

Advantages:

1. The automatic roll cloth laser cutter engraver for sale is equipped with an automatic roll-winding system, which does not require manual temporary feeding to increase work efficiency.

2. Applicable to the thick crawler type work platform: The automatic fabric laser cutter can promote the smooth movement of the processing material, ensure the material is smooth, this Co2 laser cutter for sale is convenient for the stable operation of the laser head, and the work stability is improved.

3. Automatic roll Co2 laser cutter for sale adopts CW3000 professional water cooling machine, with automatic alarm function: the fabric laser cutter can quickly reduce the temperature of the cutting head to ensure the machine 24 hours of safe operation, visual temperature adjustment, automatic alarm, user-friendly design to ensure the processing safety.

4. Liquid Crystal Display Control System: The automatic Co2 laser cutter for sale has 128 M large memory, which can store files in computer, and is compatible with AutoCAD, CorelDraw, Photoshop and some other types of graphics processing software.

Auto-feeding Table

It will transport material on the table automatically and also can be used manually by controller.

Interactive workbench from the front to the back,  inlet and outlet of material can be easy, steady  and accurate.

It is equiped with a stepper motor,which can supply power to rotate roller so that textile can be fed full automatically.

Industrial water chiller with better working performance than water pump

There are CW3000, CW5000, CW5200,CW6000

It adopts imported precise and fast speed linear guide rail to increase the machine work accuracy. modern auto feeding system with strong dense stainless net structure working table, highly improves the cutting precision on materials.

Applicable Industries:

This machine is suitable for the industries, such as garment,shoe,bag and suitcase,computerized embroidery and clipping,model,toy,

electronics,furniture,advertising decoration,art ware, etc.

Applicable Materials:

Non-metallic material, such as leather,cloth,organic glass,acrylic,

rubber,plastic, wood ware,bamboo ware,ceramic , etc.
