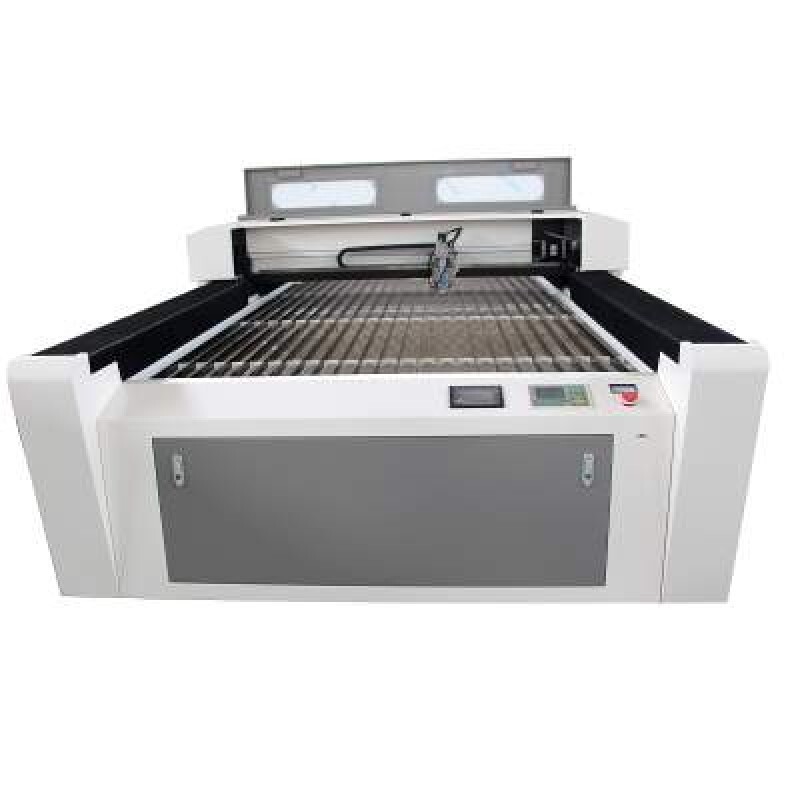

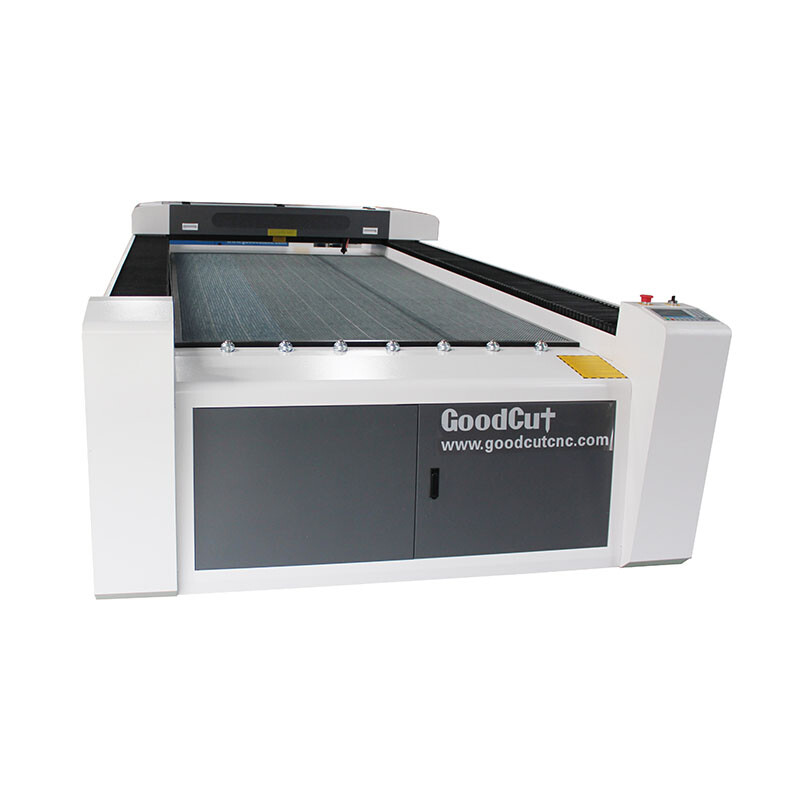

GC1325L CO2 Laser Cutting and Engraving Machine
Model: GC1325L
Laser tube power: 100W 130W 150W
Laser tube brand: Beijing Reci EFR
Control system: Ruida controller
Product description: laser cutting machine, nonmetal laser cutting machine, 100W/130W/150W/ 180W Beijing Reci / EFR laser cutting machine
Iquiry
Contact
Product Description

GC1325L CO2 Laser Cutting and Engraving Machine

Parameters:

Working Area1300x2500mm / 1500x3000mm
TransmissionStepper motor, square guide rails, belt transmission
Laser Power60w/80w/100w/150w/180w
Laser TypeSealed Co2 Laser Tube
Cooling TypeWater Cooling
Laser Output Control0-100% Set by Software
Smallest Character EngravingChinese: 2.0mm*2.0mm, English 1.0mm*1.0mm
Positioning Accuracy0.05mm / 0.02mm
Max. Cutting Speed40000mm/min
Max. Engraving Speed70000mm/min
Controlling SoftwareRuida controller
Graphic Format SupportedDST PLT BMP DXF DWG AI LAS, etc
Compatible SoftwareCORELDRAW, PHOTOSHOP, AUTOCAD, etc
Power SupplyAC110V/220V, 50HZ/60HZ

Main configurations:

#Working size 2500*1300mm

#Reci EFR 100W 130W 150W laser tube

#RD control system,USB offline

#Taiwan PMI guide rail

#Blade table

#High quality belt transmission

#USA lens and mirrors

#Heavy duty body

#Water protection switch

#Industrial wather chiller CW3000 CW5000 CW5200


Thicken Machine Bed

Adopt Thicken machine bed, heavy loading,
Not easy to get distort
Adopt Advanced Germany Mix Cutting Technology

It supports can cut acrylic, wood, MDF engraving and cutting.

High precision linear guide rail

Dust-proof and auto lubricate with lower noise volume
High accuracy and long life span

Power Supply

Model: 80W/100W/130W/150W
Original: China
Warranty period: 1 Year
Normal service life: 3 Years

Controller(Mainboard)

Model: AWC708C
Original: China
Cutting speed: 0-36000mm/min
Engraving speed: 0-64000mm/min
Resetting: 0.01mm
Positioning accuracy: 0.025mm
Highest scanning precision: 2500DPI
Graphic format: AI ,CDR BMP,JPG,DST,PLT,DXF,DWG,TIFF,PSD
Supported software: CoreDraw, photoshop, Autocad, etc.
Smallest cutting characters: Chinese 2x2mm . English 1x1mm
Input Power: 220V/ 110V / 60HZ
Whole Power: <1100w
Operating temperature: 0-45°C
Operating humidity: 5-95% Free of condensed water

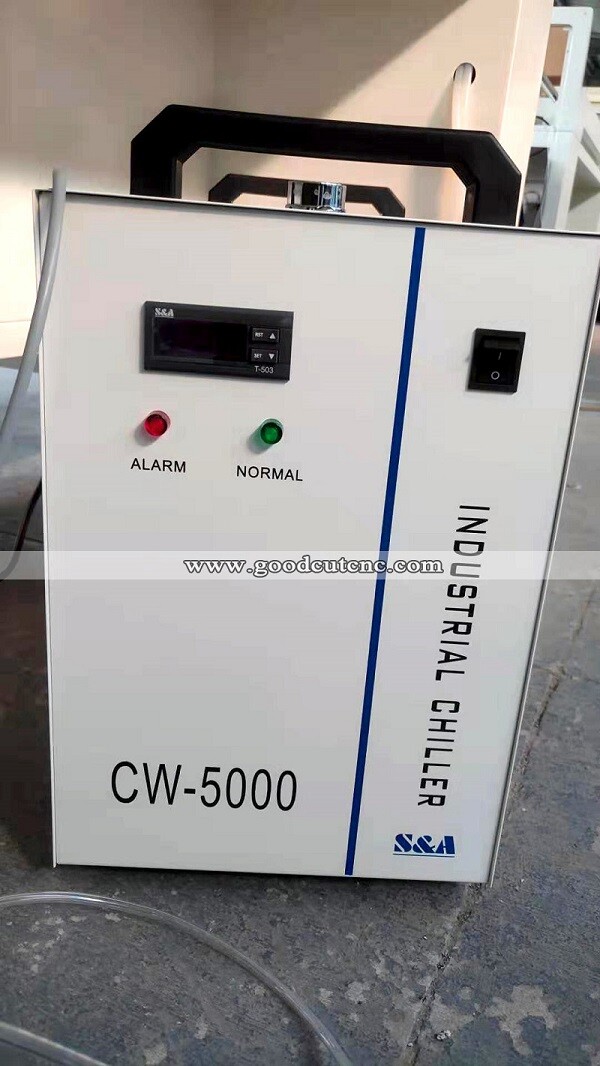

Water cooled chiller:

GoodCut GC-1325L CO2 Laser Cutting Machine Detail 1.jpg

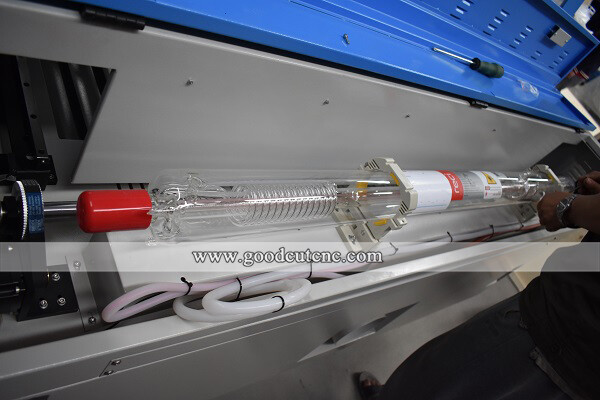

RECI laser tube W6 model:

GoodCut GC-1325L CO2 Laser Cutting Machine Detail 2.jpg

Unique Mirrors and Lens Cooling Technology

All mirrors and lens is cooled by water
Takes the mirror heat during working
USA "II-IV" Brand Imported Mirrors & Lens
Equipped with luxury consumables
Imported reflect mirror and focus lens,
Makes high efficiency and steady.


Control Panel

Ruida
Original: China
Input format: AI ,CDR BMP,JPG,DST,PLT,DXF,DWG,TIFF,PSD
Supported software: CoreDraw, photoshop, Autocad, etc.


Standard Parts

  • Red Light pointer
  • 1× CW-3000/5000/5200 Water Chiller/Water Pump
  • 1× Honeycomb table/Blade Table
  • 1× Air compressor + 1×Exhaust blower + 1×Smoke pipe.
  • 1× USB cable (Connecting pc and machine)
  • 1× CD (Including PHCAD operating software, user-friendly instruction manual, guiding videos.)
  • 1× Power cable
  • 1× Tool box

GoodCut GC-1325L CO2 Laser Cutting Machine Sample 1.png
