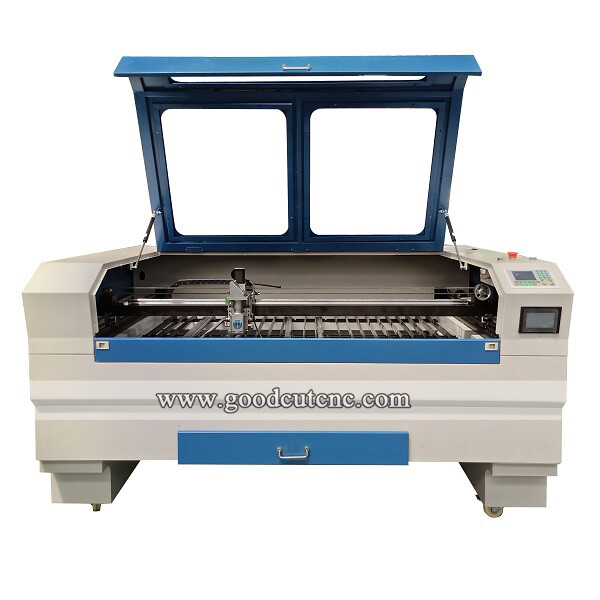

GoodCut GC1390L CO2 Laser Metal Nonmetal Cutting Machine

Features:

1, Mixed-cut: metal steel such as stainless steel, carbon steel, and nonmetal such as acrylic, wood, etc.
2, High precision: X/Y axis adopt Leadshine servo motor with high precision belt transmission, improve the response speed and cutting precision, extend service life.
3, Good stability: optimized the nc system control, it can meet the precision parts processing, stable dynamic performance, also can work for long hours.
4, The cutting section with good quality: mechanical follow-up cutting head system, cutting head always follows the material to keep the cutting point locaation unchanged, which insures smooth cutting section without processing again. It can adopt to flat or curved surface sheet cutting.
5, Adopt sealed co2 laser tube, main consumable items are electric energy, water cooling, auxiliary gas and laser light.
6, Simple structure, easy operation, stable laser device and low maintenance cost.

Parameters:

Main configurations:

#Working size 2500*1300mm

#YONGLI 260W laser tube

#RD control system,USB offline

#Live focus system

#Taiwan PMI guide rail

#Blade table

#Taiwan TBI ball screw transmission

#USA lens and mirrors

#Heavy duty body

#Water protection switch

#Industrial wather chiller CW3000

#Yaskawa servo motors and drivers

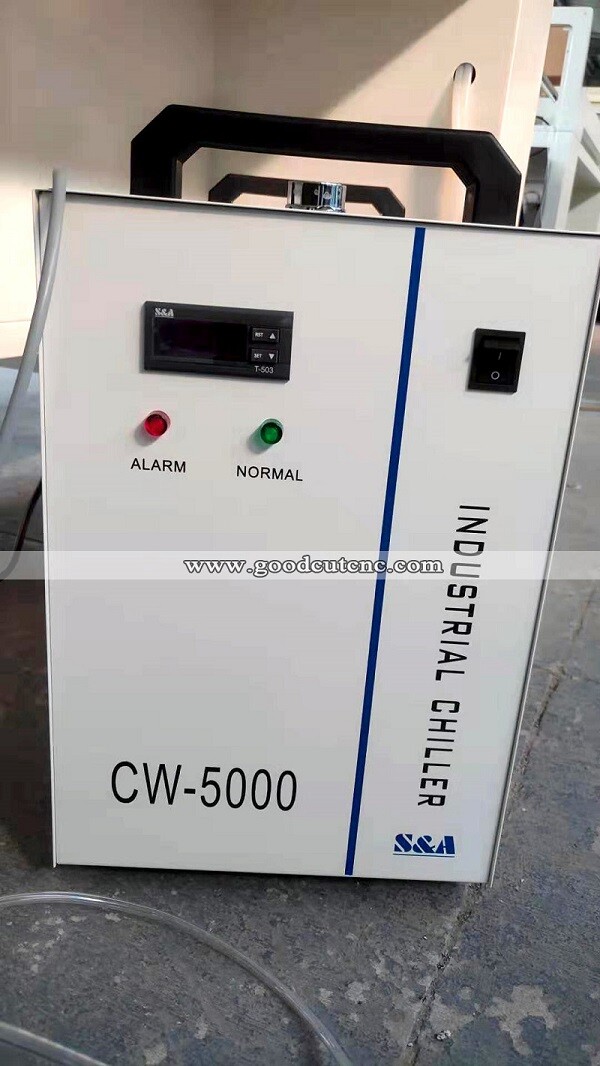

Water Cooler

Model: CW3000/CW5000/CW5200

Original: China
Installation requirements:
Install in strict accordance with CW-3000 water tank schematic.

Plug in the signal line and fail to install as required.
Use pure water, change water better every 10-15 days.
Environment: temperature 2-40 degrees, humidity 10-60%

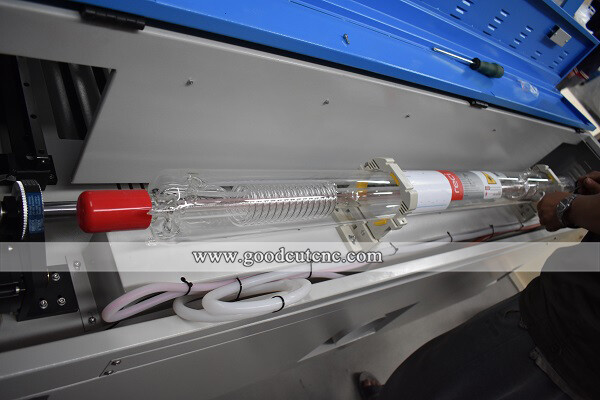

RECI laser tube W6 model:

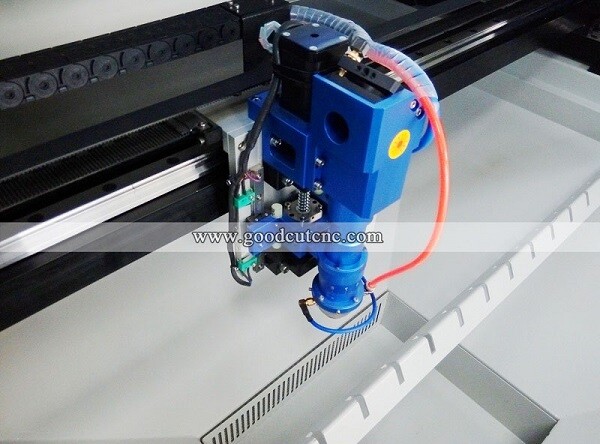

Auto-focus Laser Cutting Head:

When the metal sheet is not plain, the dynamic focus laser cutting head can adjust the focusing distance automatically. Realize the accuracy of cutting effect.

Pre-view and pre-run function
Simulate the laser cutting path
Pre-run the cutting path in advance
Ensure finding the accurate cutting position

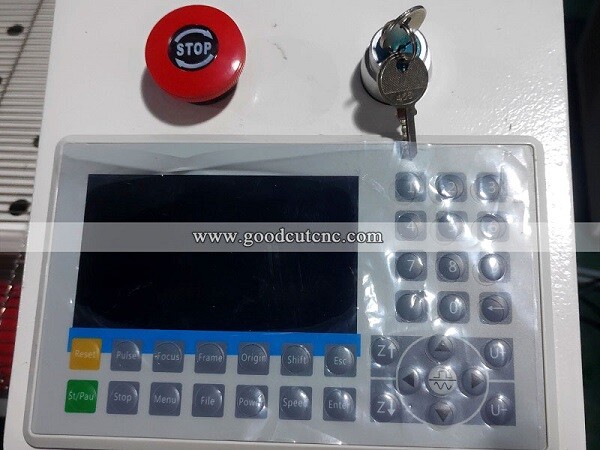

Control Panel

Model: 708C2
Original: China
Input format: AI ,CDR BMP,JPG,DST,PLT,DXF,DWG,TIFF,PSD
Supported software: CoreDraw, photoshop, Autocad, etc.

Standard Parts

· Moterized up/down worktable + Auto-Focus device + Red Light pointer

· 1× CW-3000/5000/5200 Water Chiller/Water Pump

· 1× Honeycomb table/Blade Table

· 1× Air compressor + 1×Exhaust blower + 1×Smoke pipe.

· 1× USB cable (Connecting pc and machine)

· 1× CD (Including PHCAD operating software, user-friendly instruction manual, guiding videos.)

· 1× Power cable

· 1× Tool box

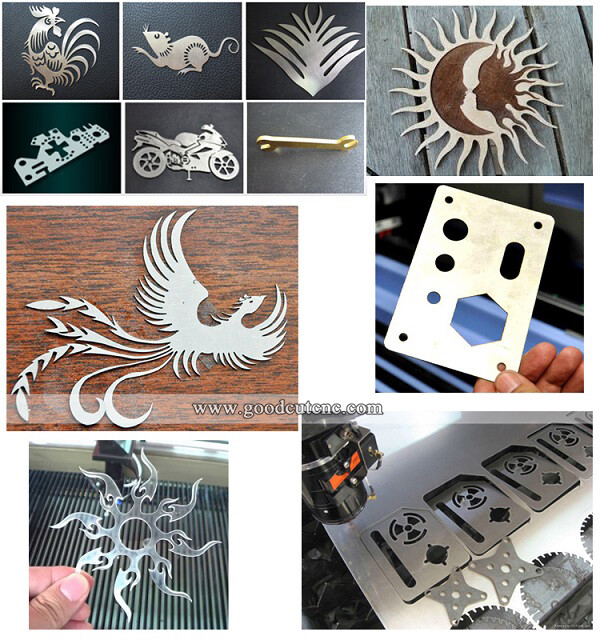

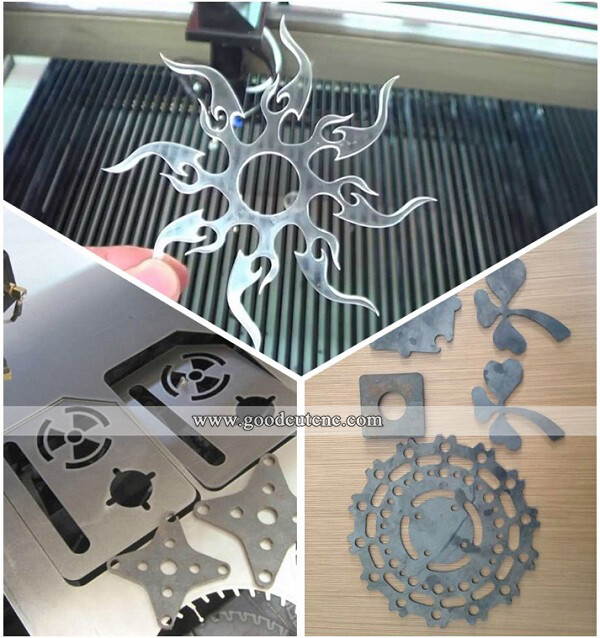

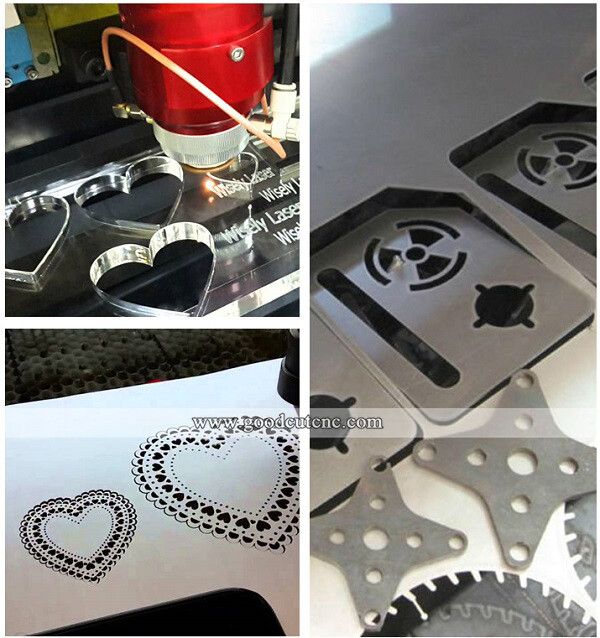

Applicable Material for laser cutting machine for fabric:

Metal: Stainless steel, carbon steel, mild steel, galvanized sheet,

Nonmetal : rubber, plastic, cloth, leather, acrylic, MDF, plastic, bamboo, woollens, organic glass, tile,jade, bamboo, wood, rubber, etc.
