• CO2 Laser Machine

GoodCut GC1530LM SLW Tube Mixed CO2 Laser Machine
Working area: 1300*900mm;1600*1000mm; 1300mm*2500mm ; 1500*3000mm;
Laser tube: 150W/200w/300w/500w
long working life,1000 hours working lifespan
Product Description

GoodCut GC1530LM SLW Tube Mixed CO2 Laser Machine


Main Features:

1) Working area: 1300*900mm;1600*1000mm; 1300mm*2500mm ; 1500*3000mm; etc.
2) Laser tube: 150W/200w/300w/500w
3) Belt Transmission/Screw transmission + leadshine stepper / Servo Motor and Driving System
4) High speed,High Reset accuracy
5) long working life,1000 hours working lifespan
6) cost effective from direct real factory, 8000 meters square meters.
7) Most Advance &elegant design &Simple Structure

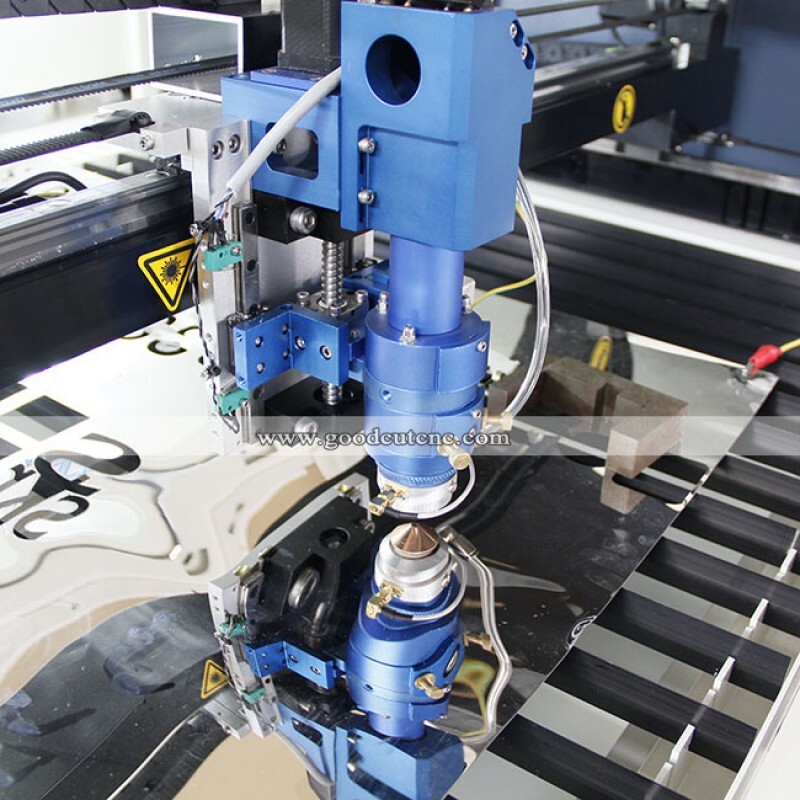

GoodCut GC1530LM SLW Tube Mixed CO2 Laser Machine Detail 1.jpg

Parameters:

ModelGC1325LM Mixed CO2 Laser engraving machine
PaymentT/T, 30% paid in advance and 70% paid after finish build
WarrantyMachine 1 year, laser tube 10 months
X,Y effective working area1300mm*2500mm
Motor driverLeadshine stepper motor driver
Laser typeHermetic and detached co2 laser tube.Combined beam tube, multiple glass tube, three tube combined
Laser tubeSLW laser tube 300w/500w
Laser headSpecial metal laser cutting head
Control systemRuida controller
Working tableBlade table
Water chillerCW6000
Cooling down methodWater cooled and the protection system
MAX Engraving speed0-75000mm/min
MAX cutting speed0-40000mm/min
Resolution4500dpi
Mini characterEnglish 1*1mm
Lens and mirrorUS II-VI lens
System environmentWINDOW2000/WINDOW XP/WIN 7/WIN 8/WIN 10
Graphics format supportedBMP/HPGL/PLT/DST/AI
Compatible softwareCorelDraw/AutoCAD/Photoshop
Guid railPMI linear guide rails
Transmission  Belt/ Screw
InterfaceUSB
Power sourceAC380V, 50Hz/60Hz, 3 phase
Working EnvironmentTemperature:0-45℃  Humidity:5-95%
packageInner stretch film and plastic film for humidityoutside standard plywood case
Other partsQty
Air pump1
Blower/Fan1
Smoke pipe and water pipe4
Power line1
Screwdriver2
Dividing ruler1
Sensor1
Swab1
U disk1
Other partsYes


Application:

1. Metal, acrylic, wood, paper, pvc, bamboo, felt, fabric, leather,wool, fur, resin,rubber,carton, glass, marble etc.metal and non-metal materials

2. The machine is suitable for garment,leather, package and printing,advertisement decoration, building upholster, art gift, computer embroidery, paper product, acrylic product, middle density board etc. non-metal sheet precision cutting and other industries

GoodCut GC1530LM SLW Tube Mixed CO2 Laser Machine Sample.png
