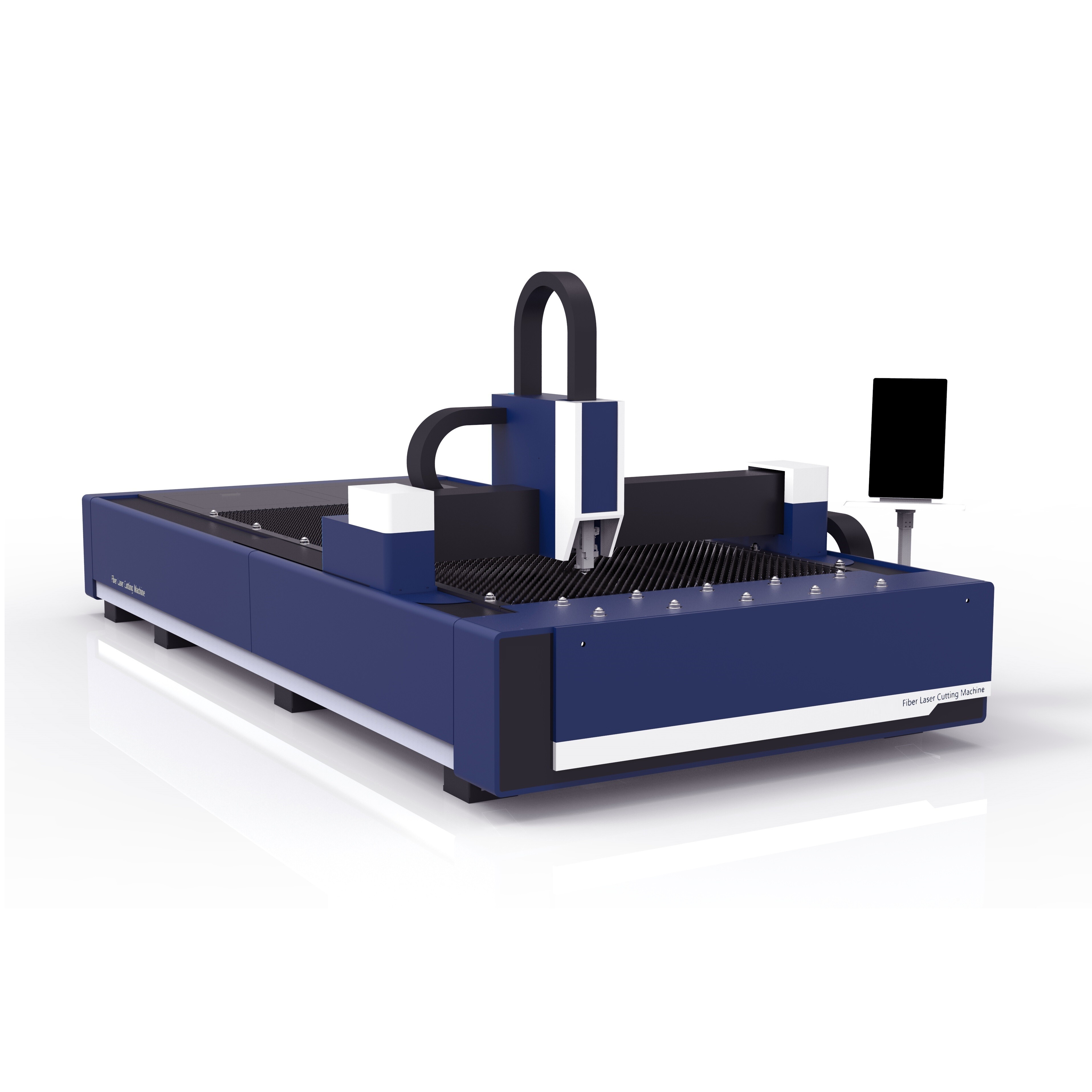

GC1530F Raycus IPG Fiber Laser Metal Cutter Cutting Machine with Cypcut Control System

Feature:

1. Adopt CNC pentahedron machining, milling, boring, tapping and other processing techniques to make sure high machining accuracy.

2. RAY tools laser head, with bm109 automatic foucs function. (WSX laser head for optional.)

3. Famous domestic brands RAYCUS laser source, 1000w 1500w 2000w 2500w. (German IPG laser source for optional.)

4. Cypcut control system, connected with computer, simple operation.

5. S&A water chiller, dual temperature,dual control.

6. Janpan Yaskawa servo motor,large power and more stable.

7. X Y axis adopt high accuracy grinding type gear rack, Japan Shimpo reducer, high speed and precision can be ensured. Z axis transimit by high accuracy rolling ball screw..

8. Adopt France Schneider AC servo motor, large power, stronger torque force, working speed is more stable and faster.

9. Adopt Japan SMC intelligent gas group, dual gas control, automatic adjustment for gas type and gas software.

10. Configure with non-contact auto follow function, ensure the best focal length and cutting effect.

11. Compatible with multiple software, can design ant graphic and letters as you like, operating simple, flexible and easy.

Parameter:

Parameter:

Parameter:

Main Features:

1. Heavy duty steel welded machine frame

The bed is welded from thick steel pipes. The bed is annealed to eliminate excess hard force, increase the ductility of the bed, and ensure stability during the cutting process.

2. Heavy duty steel welded machine frame

Aerospace aluminum was manufactured using aerospace standards and extruded using a 4,300 ton press. After the aging treatment, the hardness can reach T6, which is the strongest of all beams. The aviation aluminum has good toughness, light weight, corrosion resistance, oxidation resistance and low density, which can greatly improve the processing speed.

3. CypCut Controller

Support flight cutting, leapfrog, electric focusing, double exchange workbench
Trajectory accuracy 0.05mm, positioning accuracy 0.01mm
Cutting speed 30m/min
Maximum air movement speed 80m/min
Maximum acceleration 0.8G

4. Control Cabinet

All the electrical components are housed and wired in a doubled-doored electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet

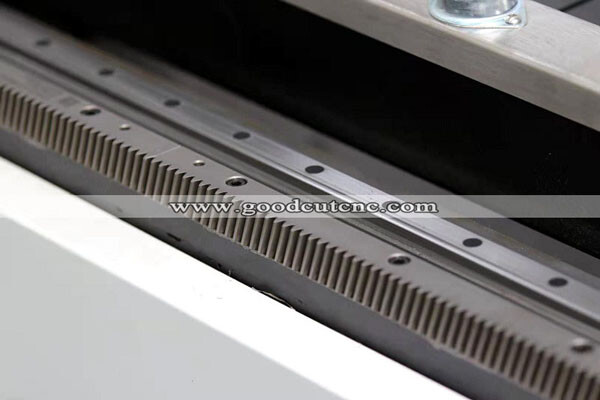

5. XY Axis German Rexroth Square Rail
&Taiwan YYC Rack Transmission system

The machine adopts Taiwan Hiwin square rail, which is more durable. And the use of high quality helical rack pinion, makes it high precision.
The rack and pinion on XY axis is from German.The high hardness of the material makes the rack more wear resistant.

Applicable Industry:
Widely used in advertising decoration, kitchen utensils, engineering machinery, steel, sheet metal chassis, automobile, air-conditioning manufacturing, sheet metal cutting processing and so on all walks of life

Applicable materials:
Mainly aimed at cutting stainless steel, carbon steel, galvanized sheet, fast cutting of various kinds ofmetal material such as alloy plate.
