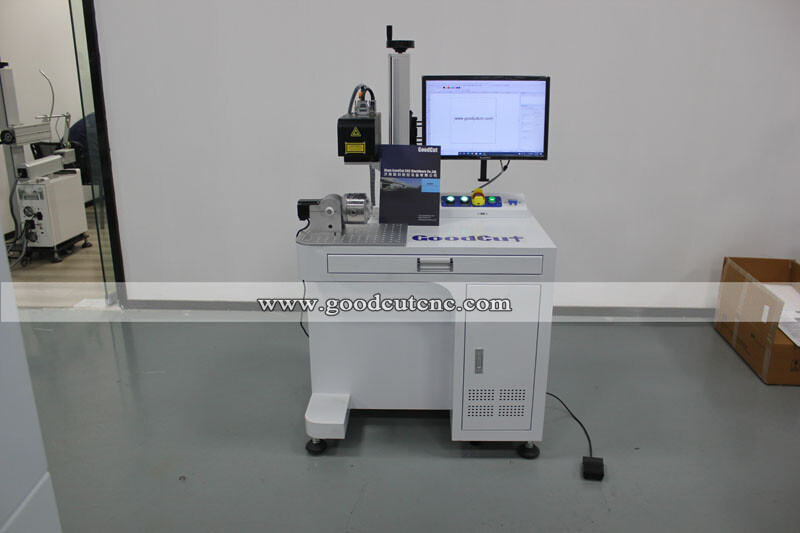

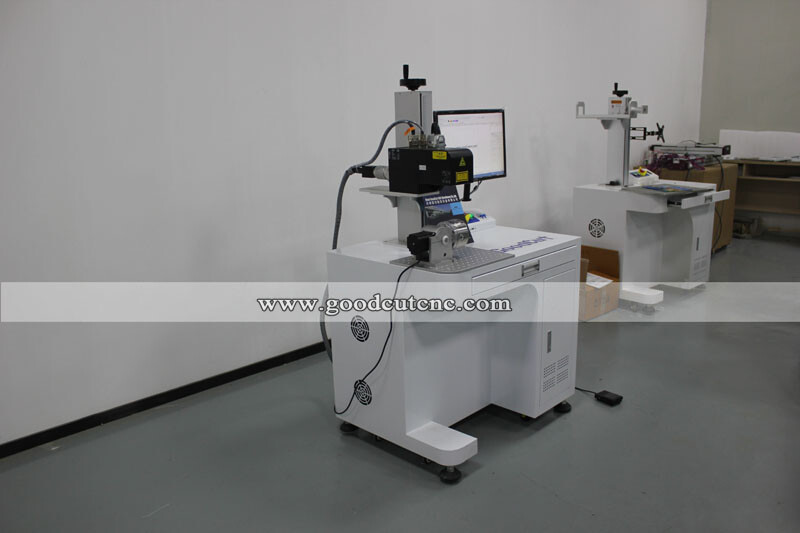

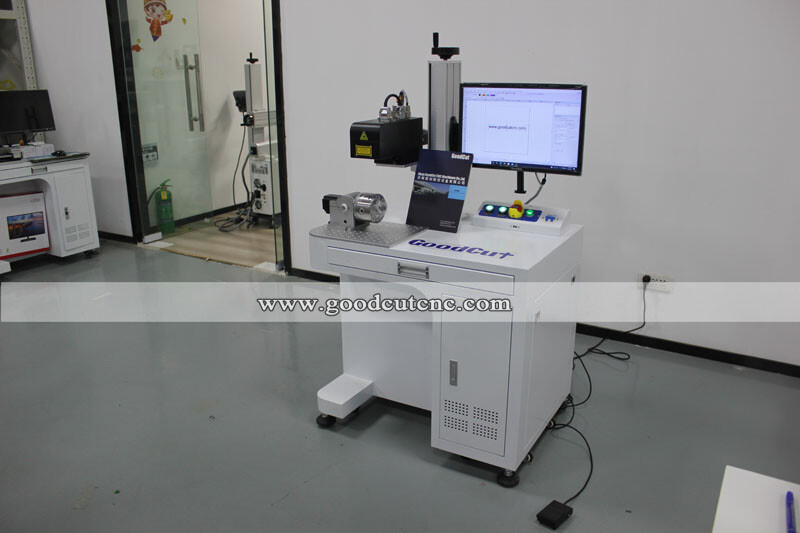

GoodCut 3d fiber Laser Marking Machine with Raycus JPT Laser Source

3D fiber laser marking engraving machine adopts 3D Dynamic focusing galvo head and 3D software, compare with ordinary 2D laser machine.Ordinary 2D scanning head only have two mirrors, but 3D scanning head have three mirrors. The third mirrors can move forward and backward. This is the key technology of 3D laser marking machine for marking curve surface on metal and partial of nonmetal.3D laser marking machine outstanding functions are large format deep engraving metal, relief engraving coin mold and curve surface marking.Advantages of high precision mold metal engraving, large size metal plate deep engraving, metal coin relief carving.

Parameters:

Feature:

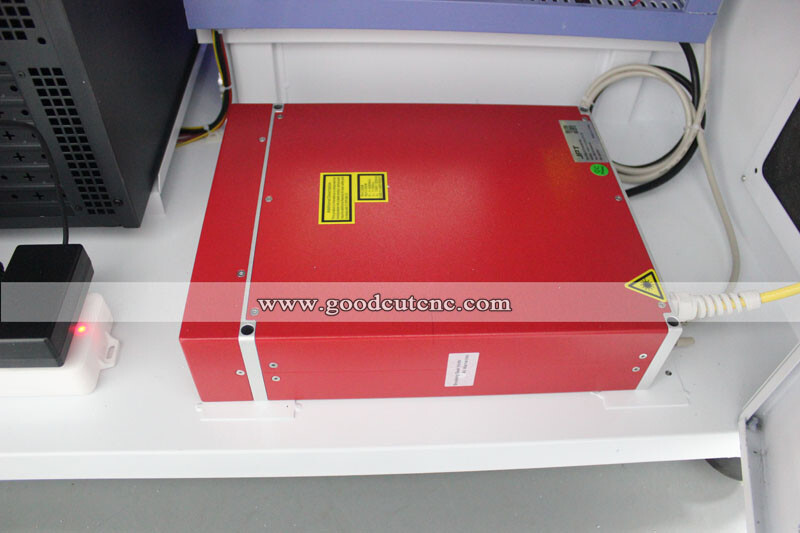

· Laser Source:  Raycus / JPT / IPG / MAX brand.

· 3D Software:  3D EZCAD 3.0 / Feeltek lenmark software.

· Laser Power: 30w 50w 60w 80w 100w 120W

· Marking Area:  110*110*60mm, 150*150*60mm, 200*200*80mm, 300*300*80mm.

· 3D Galvo Head: OV Laser / Feeltek / JCZ / Sino Galvo.

· Column Stand:  50cm / 68cm / 80cm / 100cm.

· Auto Focus: 3D dynamic galvo head for dynamic auto focus, Moterized Z-axis for auto focus.

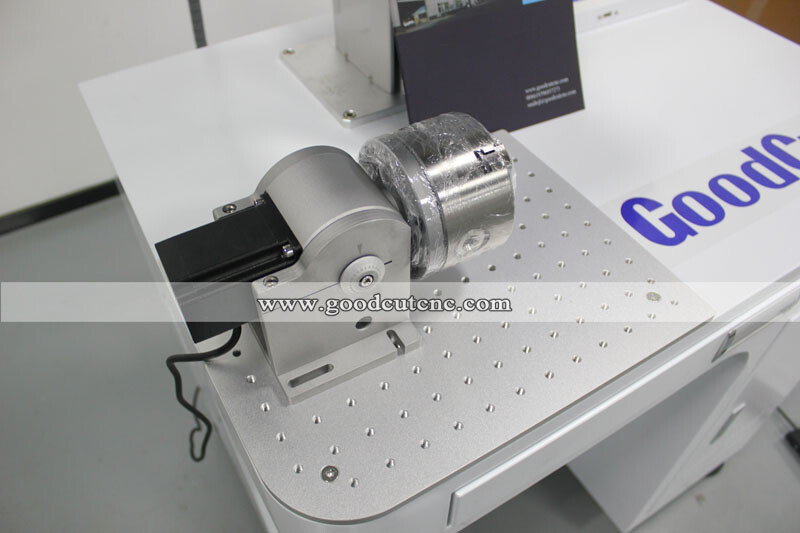

· Rotary Fixture Available:  69mm, 80mm, 100mm, 125mm, 160mm, 200mm etc.

· More Optional Parts: Vision Position Camera/ Cyclops Camera/ Conveyor table / Purifier / Electric XY table.

Application:

1). Jewelry & Acessories: Rings, Pendant, Bracelet,Necklace,Sunglasses,Watches etc.
2). Electronic Components: Phone,IPAD,Resistors,Capacitors,Chips,Printed Circuit Boards, etc.
3). Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
4). Electronics: Iphone, IPAD, Ipod, Keyboard and more standard parts.
5). Instrument: Panel Board, Nameplates, Precision equipment, etc.
6). Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
7). Automobile Parts: Pistons&Rings, Gears, Shafts,Bearings,Clutch,Lights
8). Handicrafts: Zipper, Key Holder, Souvenir,etc.

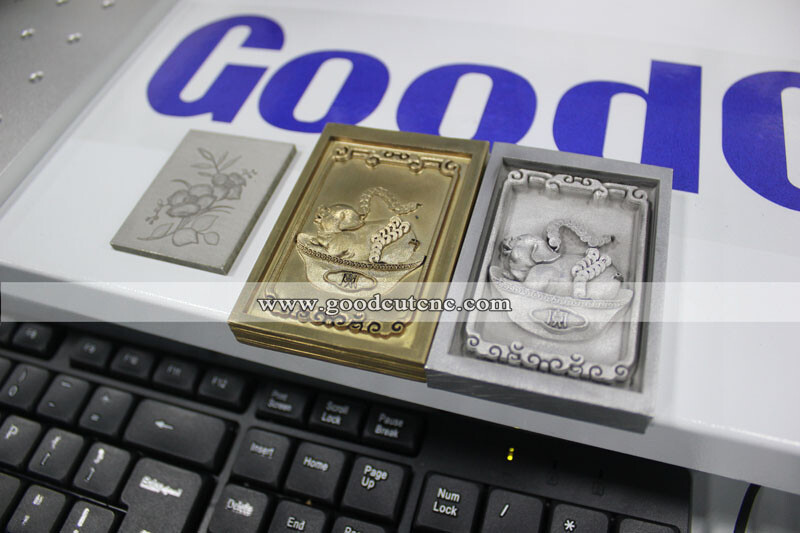

9). 3D engraving: coin, mold, jewelry.
