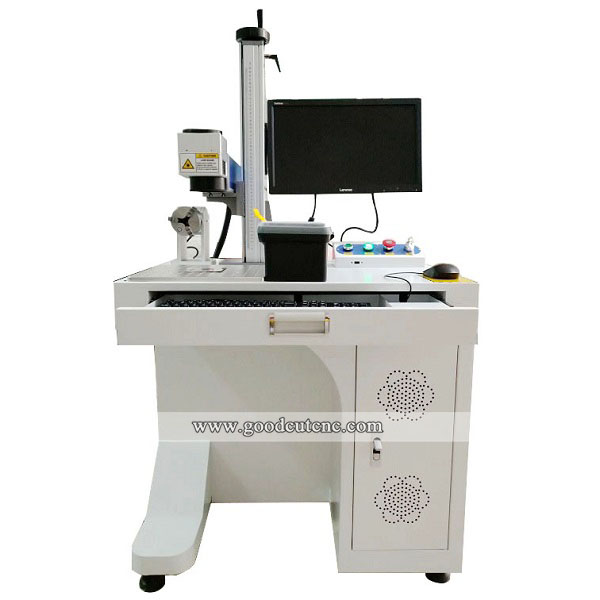

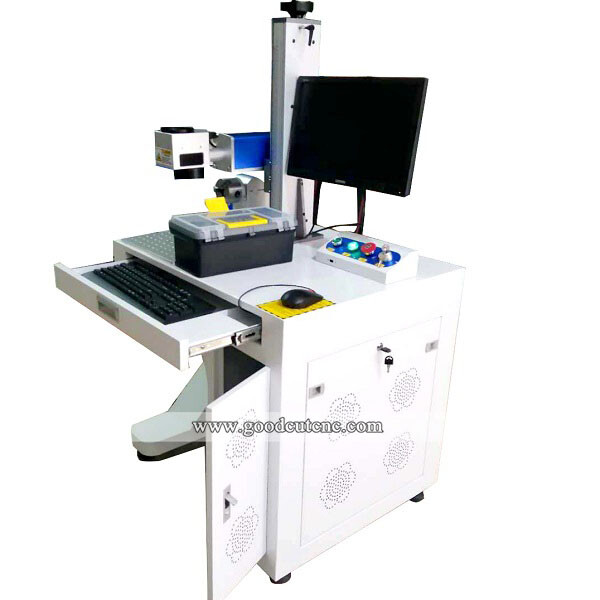

Mopa Color Fiber Laser Marking Machine

MOPA laser has independent pulse width and frequency(1-2000kHZ), and the adjustment parameter range is large. Since the thermal effect of the narrow pulse width is smaller, a more elaborate processing effect can be achieved.

Main features：

1. High speed with galvanometer;
2. Small volume, light weight;
3. Low power, consumption power is less than 500w;
4. Completely air cooling, low energy;
5. No influence of the severe environment and temperature change. If no power, battery and car cigarette lighter can be used for working;
6. Greatly reduce the depreciation cost, satisfying customers' stable large quality produce.

Parameter：

GoodCut RAYCUS or JPT fiber laser :

1.The GoodCut MOPA color fiber laser marking machine adopts the most advanced laser technology, which has advantage of high beam quality and high reliability. It is suitable for processing fields that need high marking depth, smoothness and accuracy.

2.The MOPA color fiber laser marking machine is environmental friendly, low consumption, fully automatically and leading laser system.

3.The software has already been installed and the parameter is settled before delivery. Once received, the laser etcher could work directly without data adjustment.

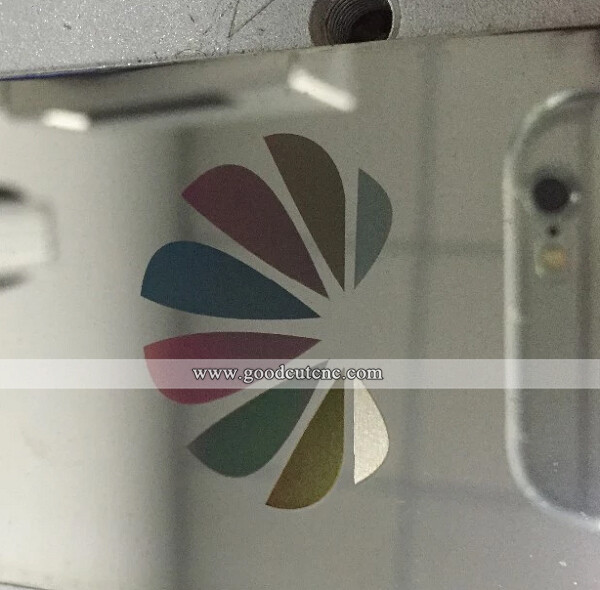

4.It is widely used in metal materials and some non-metallic materials. In the case of marking on alumina materials with black logo, model or letters, MOPA laser marking machine could meet this requirement.

Digitizing GALVO scan head:

Name: Galvo scan head

Double red light looking for focus.

Alarm lights are safer.

High speed, high repeatability.

Singapore Wavelength optical Lens

Name: F-THETA scan lens

Brand: OPEX

Professional for laser use, high light transmission and high hardness. we have 70*70  ,110*110, 175*175 ,220*220 , 300*300 mm

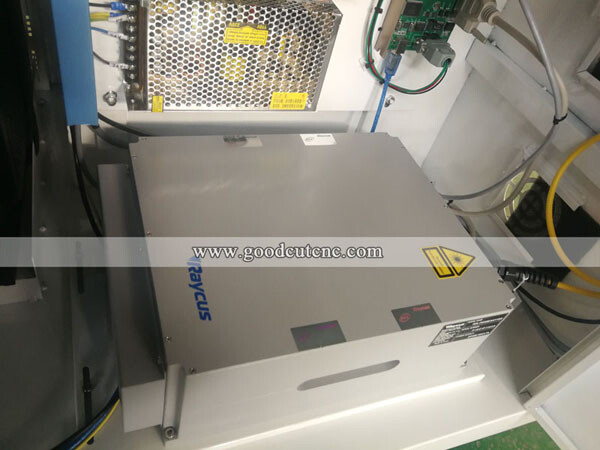

Famous Laser source

Name: MOPA fiber laser source

Brand: JPT / Raycus

Domestic famous brand laser, maintenance-free, three-year warranty, better laser quality, also very popular in the world.

Genuine control card

Name: BJJCZ control card
Brand: JCZ
Original: Beijing city, China
Leading team of laser control card, Original control card, more stable, safer and longer service life

Top quality Electrical components

Name: Power supply

Brand:Taiwan,CHINA

Stable work and durability

Optional Accessories of 20W 30W MOPA JPT Fiber lazer engraving color laser marking machine for metal:

1-Rotating round table: Multiple regular objects can be placed on round table to speed up work efficiency; round table tops can be rotated regularly

2-XY moving table: mainly suitable for large-area marking, motor drive moves in xy direction,through computer software control can achieve splicing marking, can also achieve longer length marking,such like 400*500, 500*500mm,500*600mm area, 50mm length ruler

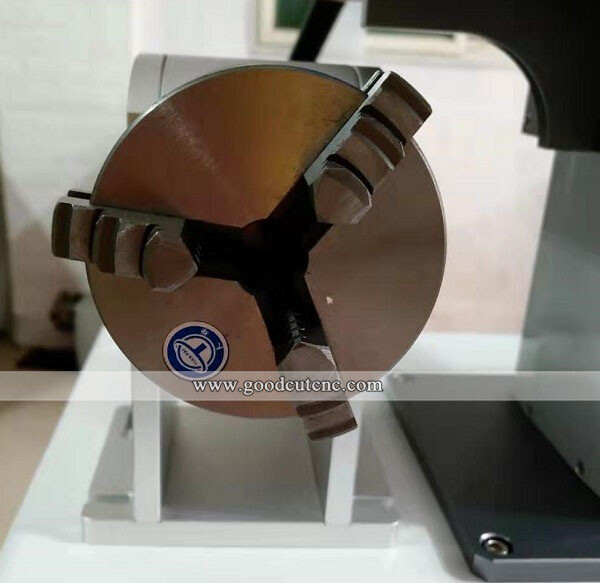

3-Rotary fixture: there are 69/80/100mm ,suit for marking cylinder items, like rings, Yeti cups, pens, etc.

4-XYZ table: we have two kinds XY and XYZ , XYZ axis adjustable worktable can achieve very small position movement of workpiece via adjust the worktable.  So if the work piece's position need very small movement, we no need to move the work-piece, just to adjust  the worktable by X ,Y, Z axis's handle.

5-Spare scan lens: thre are 175*175mm/  220*220mm/ 300*300mm , You can buy one more, different areas, which will help you in your future work.

6-Cyclops camera scanner: add a camera, and the processed parts can be seen through the control software, which is more suitable for high-precision marking and positioning.

   Accurate: The camera image is calculated and processed in proportion to the actual size.

   Safety: Marking/engraving effect achieves dynamic display to avoid laser damage

   Easy: Edit screen and background view support mouse zoom at the same time

7-Autofocus device: Autofocus saves time in finding the focal length of different heights objects
