• Laser Welding Cleaning Machine

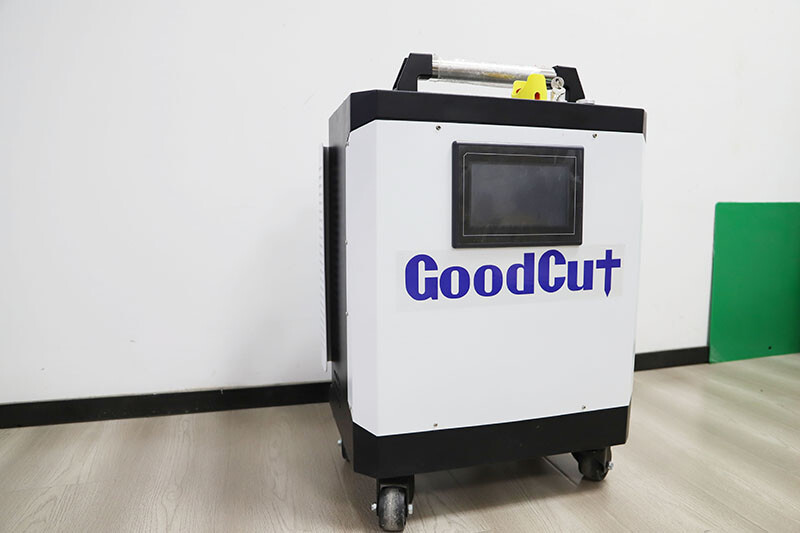

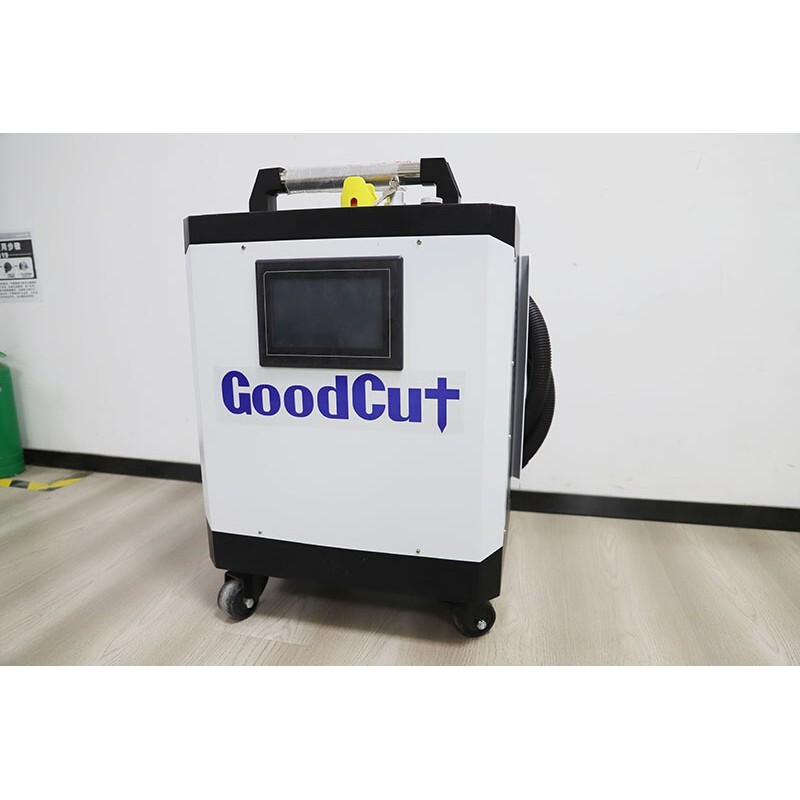

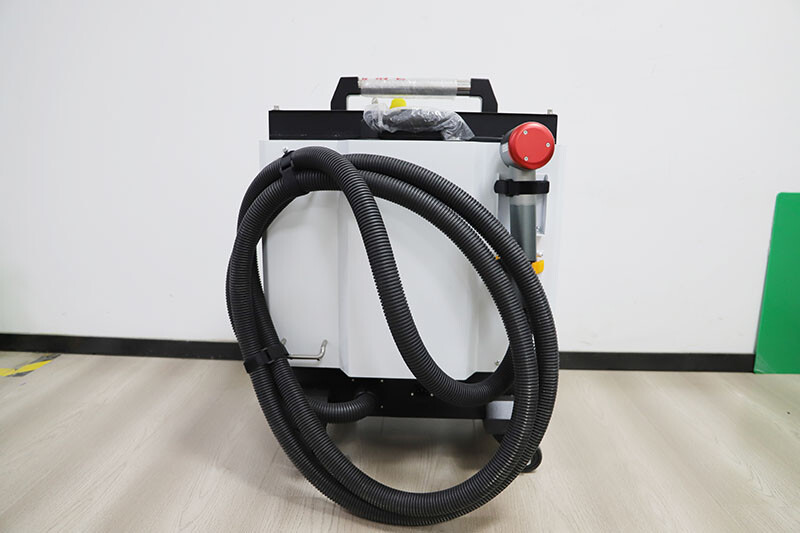

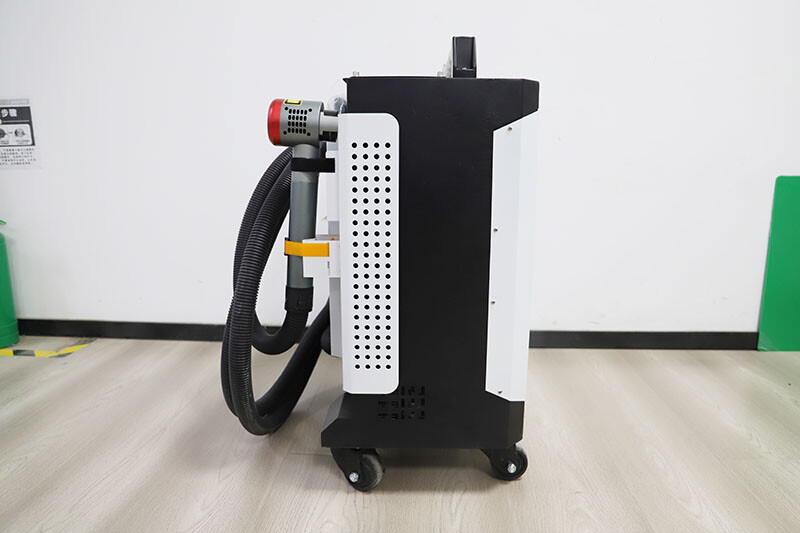

GC-CP100 GC-CP200 GC-CP300 Pulse Laser Cleaning Machine
Pulse Laser Cleaning Machine
Power 100w 200w 300w
JPT laser source
GuoYuan System
Product description: laser cleaning machine Pulse laser cleaning Clean up
Product Description

GC-CP100 GC-CP200 GC-CP300 Pulse Laser Cleaning Machine

Specifications
ModelGC-CP100 Pulse Laser Cleaning MachineGC-CP200 Pulse Laser Cleaning MachineGC-CP300 Pulse Laser Cleaning Machine
Laser power100w200w300w
Power adjustment range (%)10~10010~10010~100
Maximum pulse energy1.6mj1.8mj1.8mj
Pulse width150-190ns10-500ns20-500ns
Laser sourceJPTJPTJPT
Cleaning headGuoYuanGuoYuanGuoYuan
SystemGuoYuanGuoYuanGuoYuan
Clean head weight<0.75kg<0.9kg<1.25kg
Scan width0mm-100mm adjustable0mm-100mm adjustable0mm-145mm adjustable
Scan line diameter160mm160mm160mm
Delivery cable lengthFactory 3 metersFactory 5 metersFactory 5 meters
Laser wave length1070nm1070nm1070nm
Total power<500W<1000W<1200W
Package size640*410*590mm560*640*980mm570*650*1030mm
Weight28kg85kg85kg
Cooling systemAir cooling
LanguageChinese, traditional Chinese, English, Russian, Japanese,Spanish, German, Korean, French, etc.
Cleaning modeLine mode, rectangular first mode, rectangular two mode,prototype mode,sine mode, dual spiral mode, free mode and ring
Ambient temperature range10-40 Degrees
Ambient humidity≤70%
VoltageSingle phase 220V ±10%, 50/60HZ AC
ApplicationCleaning precision small parts, especially new energy batteries, weld oxide film, anode oxide layer, rust rust, metal plating, and hardware/glue on the hardware of metal plating.Thinner paint (≤50um), optical device coating, aluminum alloy anodic oxidation layer, oil film, forging and casting oil cleaning.Thinner paint( ≤100um),Oil pipeline rust optical device coating, aluminum alloy anodic oxidation layer, oil film, forging and casting oil cleaning.

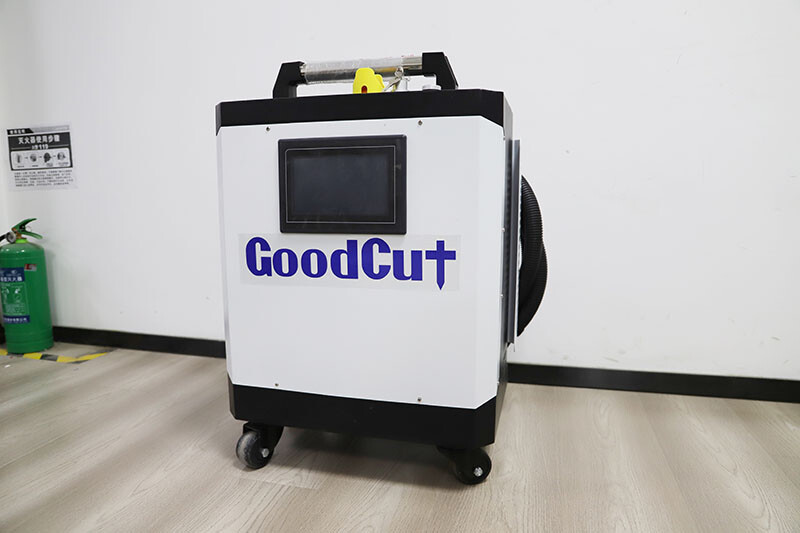

pulse laser cleaning(4).jpg


pulse laser cleaning(5).jpg



GC-CP100 Pulse Laser Cleaning Machine

Application : Cleaning precision small parts, especially new energy batteries, weld oxide film, anode oxide layer, rust rust, metal plating, and hardware/glue on the hardware of metal plating.



GC-CP200 Pulse Laser Cleaning Machine

Application: Thinner paint (≤50um), optical device coating, aluminum alloy anodic oxidation layer, oil film, forging and casting oil cleaning.



GC-CP300 Pulse Laser Cleaning Machine

Application: Thinner paint( ≤100um),Oil pipeline rust optical device coating, aluminum alloy anodic oxidation layer, oil film, forging and casting oil cleaning.

After-sale services

To provide customers with all aspects of service. We guarantee:

2 years warranty of machine.

Feedback within 5 hours with solutions for every problem.

Machine lifetime maintenance services though warranty expires.

Wide range of hardware and software support after the warranty expires, enjoy free upgrades.

pulse laser cleaning(6).jpg


pulse laser cleaning(7).jpg
