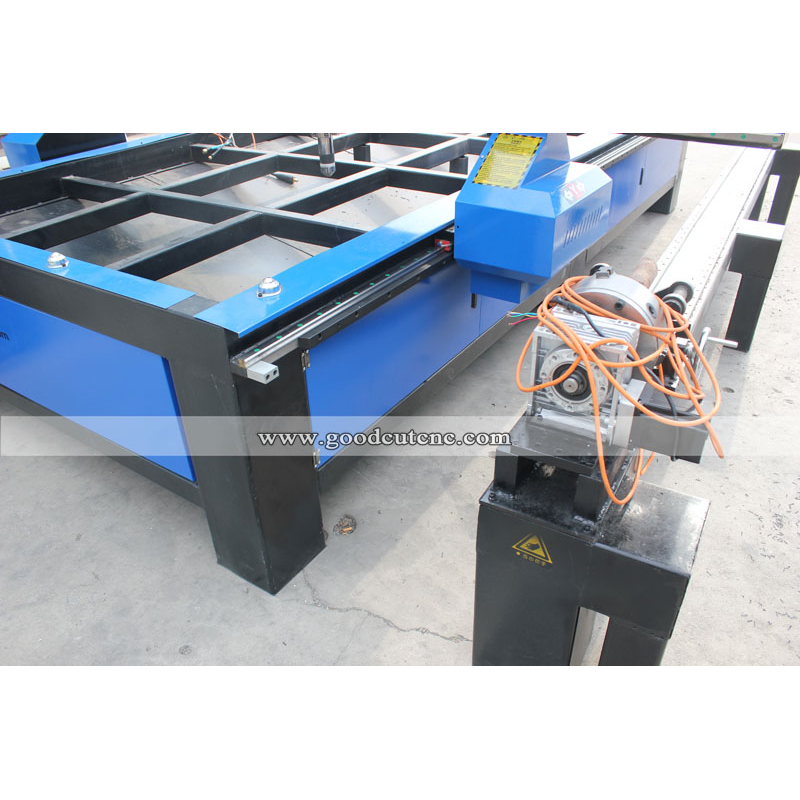

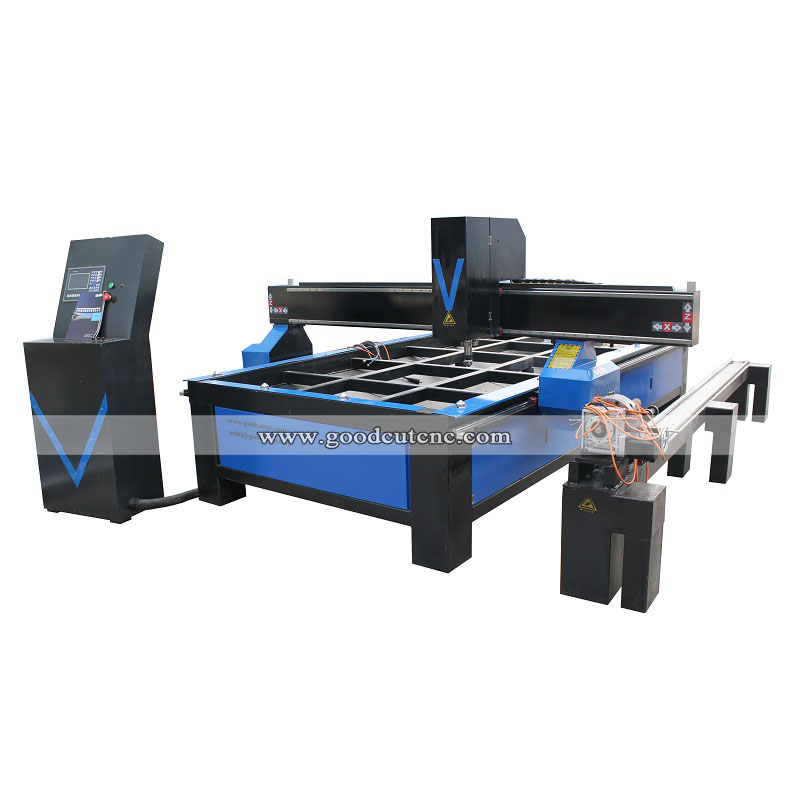

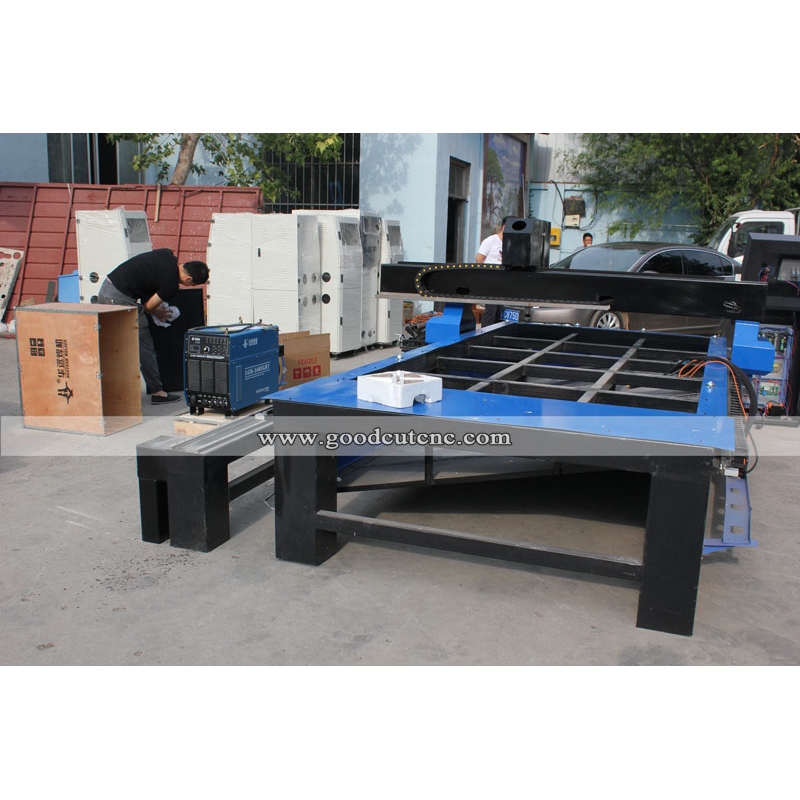

GC-1530PR Plasma Cutter Table  for Sheet Metal and Tube

Integrated cnc plasma machine for plate/tube cutting:

A type of new design machine which adopts reasonable technology concept so as to realize the plate and tube cutting can be completed on the same machine .This machine can save lots of purchase cost and upgrade the producing efficiency for customers as well as satisfy the needs from metal processing company and the others processing demand.

Features of Integrate Plate And Pipe Tube Cutting Cnc Metal Plasma Cutting Machine:

1.Welded lathe bed of thick-wall profiled steel, more solid and stable.

2.Reasonable lathe table design, 10mm thickness steel plates fixed on lathe table covered by cast sheath with spikes. Steel plates will not be damaged even under raging flame.

3.The level difference of whole double-deck platform remains in 0-1.5mm

4.Advanced material inclined discharging design. All finished work pieces and fragments slide into both sides of tunnel for safe and convenient collection.

5.Lower noise, stable and accurate coordinates movement.

6.Start control system made in Sino-US joint venture and Germany design Software FASTCAM with auto material saving function.

7.Power supply (power: 60A/120A/200A/400A/600A) together with high sensitive arc pressure adjuster.

8.Self-adjusting to choose the best distance between plasma head and work piece automatically in order to ensure cutting accuracy.

9.Best choice for all kind of different thickness material and heterotypic sheet cutting.

Parameters of Integrate Plate And Pipe Tube Cutting Cnc Metal Plasma Cutting Machine:

Plasma cutting thick compare:
