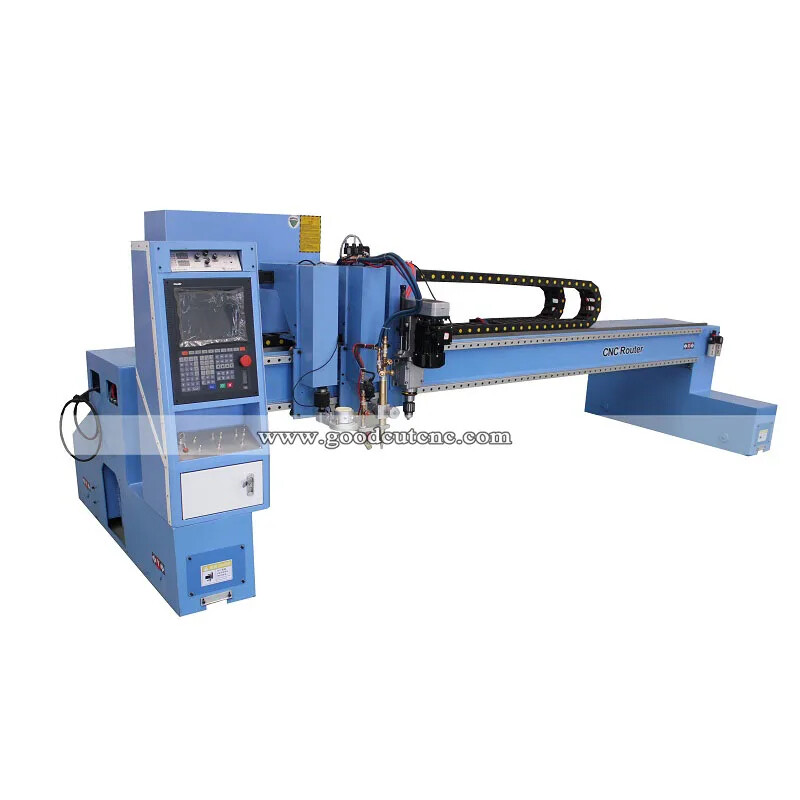

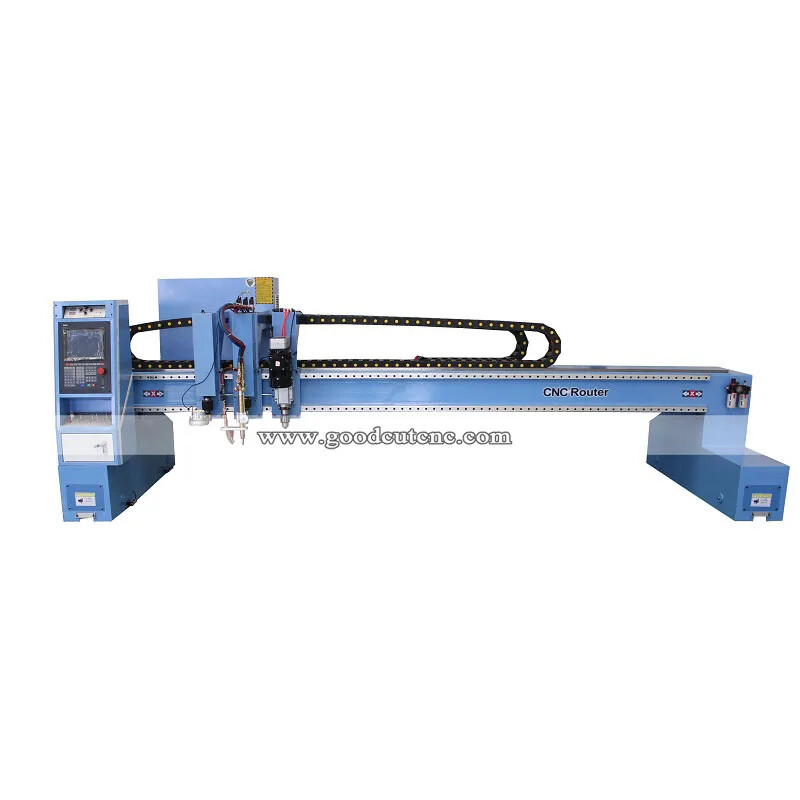

GC-PG CNC Gantry Plasma Cutting Machine

Parameters:

Specifications:

1. The machine body:

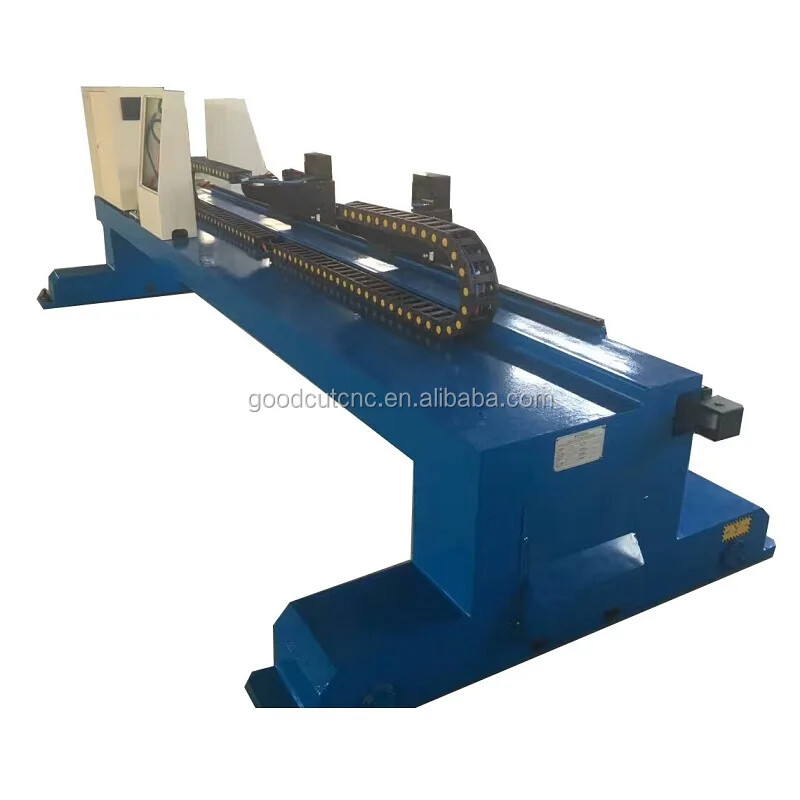

It is gantry type structure. The cross beams treated by whole annealing to eliminate stress so it has good rigidity and high strength without permanent deformation.

2. The vertical rails:
The vertical guide track adopts heavy rails. The surface has high precision after grinding . The rail length can be increased and decreased according to the requirements of users;Rails using 38Kg / m rail processed from the top surface and the side after grinding with high straightness and parallelism; foundation generally use concrete structure ( also available in steel ).

3. The cutting torch holder:

The cutting torch holder adopts the collision-preventing design to ensure the cutting torches are not damaged in production

4. The horizontal rails:
The horizontal guide track adopts a straight line track with high precision and smooth running.
5. The travel reducer:
The travel reducer adopts high precision planet gear reducer.

6. The driven system:
The driven device adopts the full-digital AC servo system and motor made by Japan Panasonic which has high running precision.

7. Regulator of auto height regulator:
The machine has many functions such as automatic position, automatic perforation, and automatic height-regulating device of capacitance.

8. Program and nesting software:
FastCam.

9. CNC system:
It is equipped with most efficiency StatAI Control system.

10. Cutting power:
China LGK or USA Hypertherm optional.

11.Power supplier:

China Huayuan LGK 63A 100A 120A 160A 200A 300A

US Hypertherm 45A 65A 85A 105A 125A 200A 130A 170A 300A

Features of gantry type cnc cutting machine

(1)  Gantry structure is large and adopts low center of gravity.

(2) Bilateral drive adopts symmetrical structure.

(3) Single drive adopts equicrural structure.

(4)Adopting high precision planetary gear reducer made by ELSELE.

(5)Cutting torch driven up and down by bearing.

(6)Adopting high strength guide rail for Y axis and solenoid valve imported from Italy.

Application:

Ship Building, Construction Equipment, Transport Equipment, Aerospace Industry, Bridge Building, military industrial, wind power, Structural Steel, Boiler containers, Agriculture Machinery, Chassis electrical cabinets, Elevator manufacturers, Textile Machinery, Environmental protection equipment,etc
