  • GC5025WL Mini Wood Lathe Machine for Bowls
  • GC5025WL Mini Wood Lathe Machine for Bowls
  • GC5025WL Mini Wood Lathe Machine for Bowls
  • GC5025WL Mini Wood Lathe Machine for Bowls

GC5025WL Mini Wood Lathe Machine for Bowls
GC5025L
Mini wood lathe machine
4 pieces tools
High speed
Product description: Mini wood lathe machine 4 pieces tools for bowls making 500mm length and 250mm diameter
Iquiry
Contact
Product Description

GC5025WL Mini Wood Lathe Machine for Bowls

Parameter:

Machine frameIndustry welded square tube
Packing size1.55*0.95*1.1m
Packing typePlywood box
Max diameter250mm
Max length500mm
Motor1.5kw, Y axis 86 4N.M, X axis 6N.MThree-phase asynchronous motor
Knife4 pieces tool, 3 pieces for outer circle, 1 piece for inner bore
Spindle rotating speed0-2800r/min
Spindle bearingNSK import
Transmission2010 ball screw
Guide rail20 guide rails
Sliding blockSliding block, length sliding block
Control systemG code offline control system
Limited switchYes
Drill chuckYes
Support image formatdxf
Software compatibilityAutoCAD/Type3/Artcam/Artcut/Ucancam/JDpaint etc.
Working voltage380V/220V
Accuracy0.1mm
Environment temperature0-45 centigrade
Relative humidity30%-75%

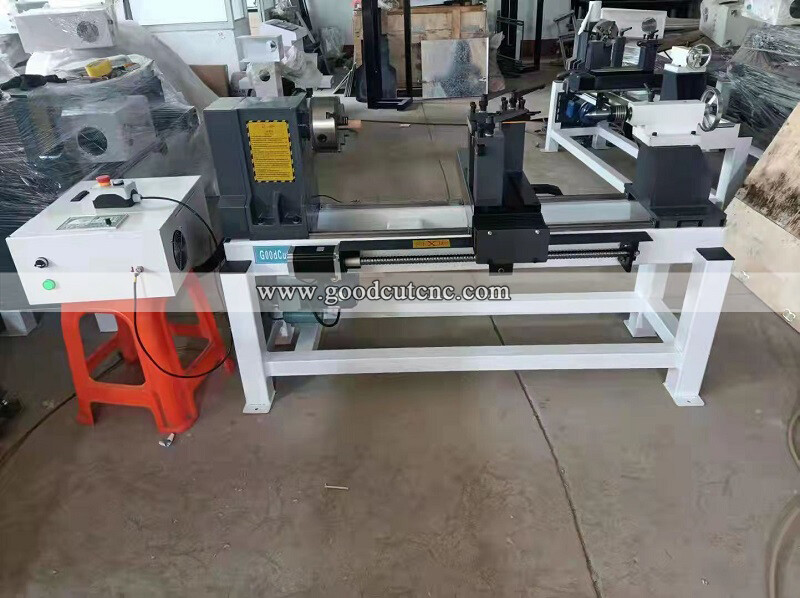

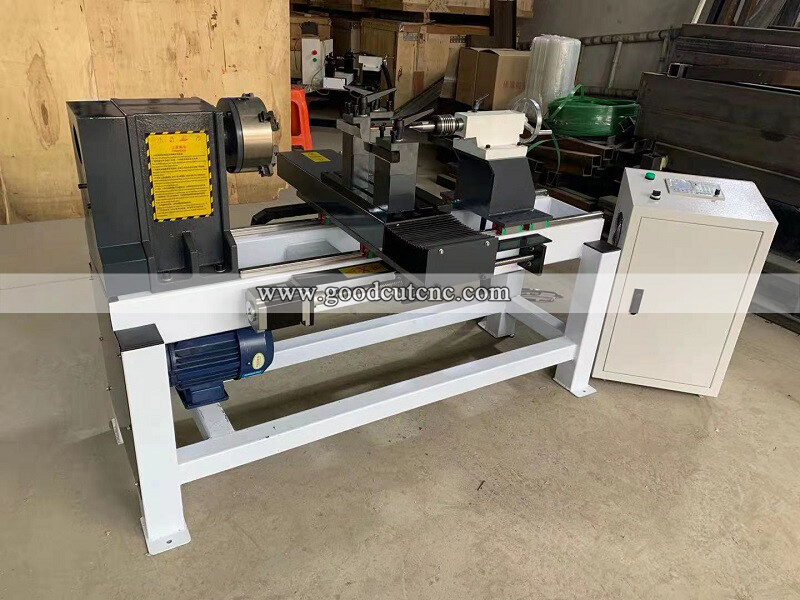

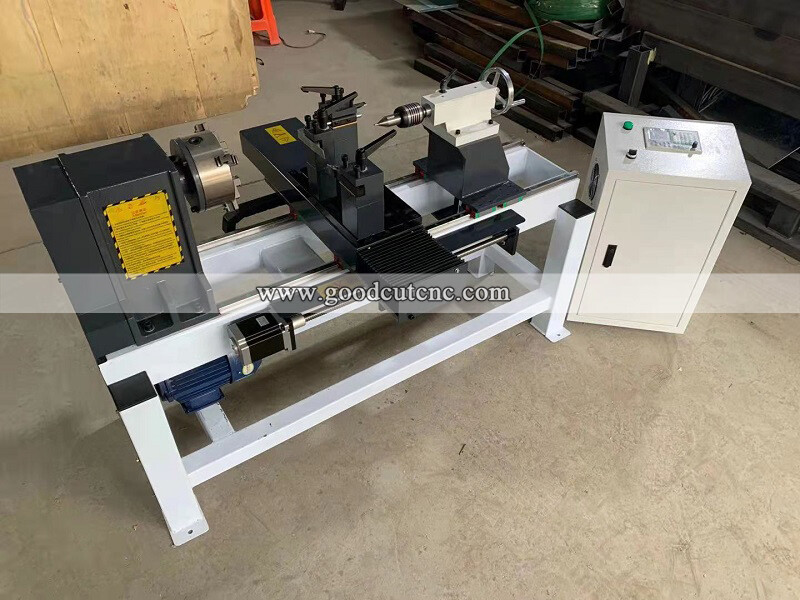

GC5025WL Mini Wood Lathe Machine for Bowls 3.jpg

GC5025WL Mini Wood Lathe Machine for Bowls 5.jpg

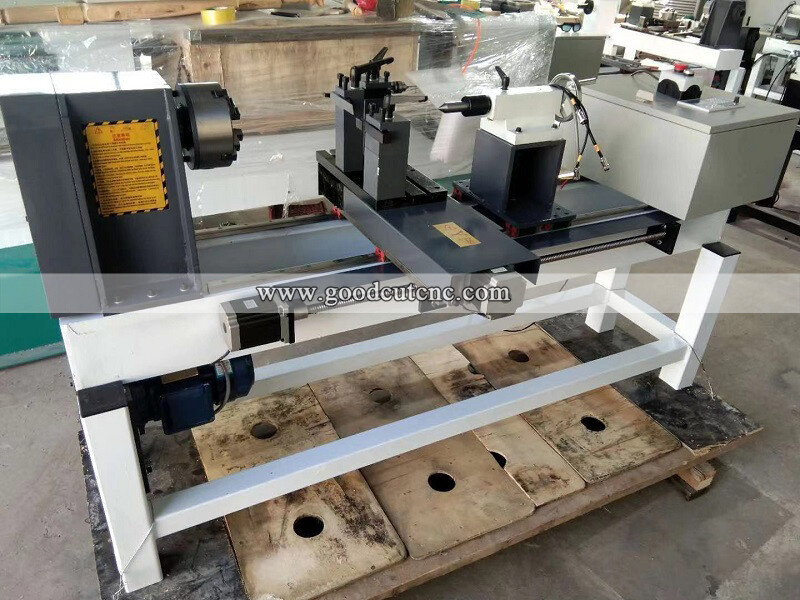

GC5025WL Mini Wood Lathe Machine for Bowls 4.jpg



Application:

Wood lathe machine mainly used for processing cylindrical handrails, railings, Roman column and other profiling process products. Manual profiling processing to speed,After the double frame, rough car can be fine hand, after grinding can be sanding. Is the best tool for cylindrical processing, can be processed custom semi-automatic.
